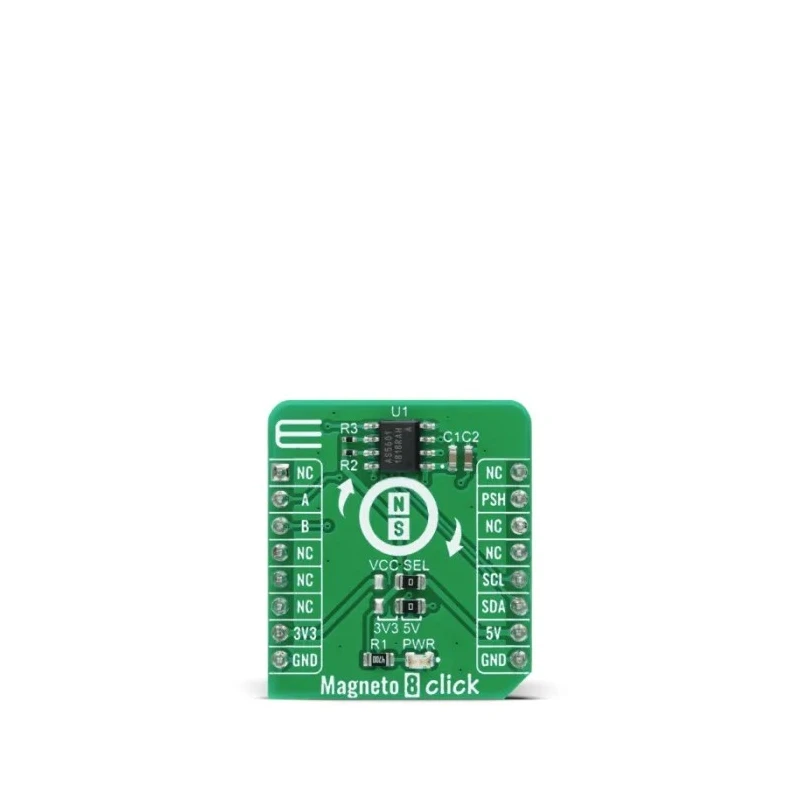

MikroElektronika Sensor Development Tool Magneto 8 Click Add On Board with AS5601 12-bit Programmable MIKROE-4204
Specifications
| Country of Origin | India |
|---|---|
| Brand | MikroElektronika |
| Interface | GPIO, I2C |
| Model | MIKROE-4204 |
| Compatibility | mikroBUS |
| Input Voltage | 3.3 V |
| For Use With | AS5601 |
| Standards/Approvals | RoHS |
| Kit Classification | Add On Board |
| Featured Device | AS5601 |
| Kit Name | Magneto 8 Click |
| Click Board Size | 28.6 x 25.4 mm |
Key Features
- The board uses planar Hall sensor technology for precise magnetic flux measurement.
- Features incremental quadrature (A/B) and 12-bit digital outputs for accurate position sensing.
- Supports industry-standard I2C interface for seamless communication.
- Operates at an input voltage of 3.3V, suitable for embedded applications.
- Designed for compatibility with mikroBUS and compact size of 28.6 x 25.4 mm.
- Includes a smart low-power mode that reduces power consumption automatically.
- Kit classification is Add On Board for modular system integration.
Product Description
MikroElektronika MIKROE-4204 Sensor Development Tool Magneto 8 Click Add On Board features the AS5601, a 12-bit programmable contactless encoder IC from AMS-AG, offering precise magnetic rotary position sensing. This compact board implements planar Hall sensor technology to measure the orthogonal component of the magnetic flux density (Bz) from an external magnet, enabling accurate position detection in various industrial and embedded systems.
The board outputs incremental quadrature signals (A/B) and 12-bit digital data over a standard I2C interface, allowing easy integration with development platforms and microcontrollers. It operates at a 3.3V input voltage and includes a low-power mode that optimizes energy consumption without compromising performance. Its compact 28.6 x 25.4 mm form factor and mikroBUS compatibility make it ideal for rapid prototyping and modular setups.
This Sensor Development Tool is widely applicable in robotics, automation, consumer electronics, and precision measurement fields requiring reliable magnetic position feedback. It facilitates development, testing, and deployment of custom applications using magnetic rotary encoders.
The board uses planar Hall sensor technology for precise magnetic flux measurement. Features incremental quadrature (A/B) and 12-bit digital outputs for accurate position sensing. Supports industry-standard I2C interface communication.
Operates at a 3.3V input voltage suitable for embedded systems. Compact size of 28.6 x 25.4 mm and mikroBUS compatible. Includes a low-power mode automatically reducing power consumption. Kit classification as Add On Board enables modular integration.
MikroElektronika Sensor Development Tools category offers a variety of boards ideal for prototyping and evaluating sensor ICs in industrial, laboratory, robotics, and embedded electronics projects. Explore related development tools and add-on boards to enhance your sensor application designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at an input voltage of 3.3V, making it suitable for embedded applications.
The board supports industry-standard I2C and GPIO interfaces for seamless communication with development platforms and microcontrollers.
The board has a compact size of 28.6 x 25.4 mm, facilitating easy integration into various projects.
It uses planar Hall sensor technology for precise magnetic flux measurement, enabling accurate position detection.
The AS5601 provides 12-bit digital outputs, ensuring accurate position sensing.
Yes, it is designed for compatibility with mikroBUS, allowing for modular system integration.
It is widely applicable in robotics, automation, consumer electronics, and precision measurement fields requiring reliable magnetic position feedback.
Yes, it features a smart low-power mode that reduces power consumption automatically without compromising performance.
It outputs incremental quadrature signals (A/B) along with the 12-bit digital data over the I2C interface.
The MikroElektronika Magneto 8 Click board is manufactured in India.
It complies with RoHS standards, ensuring it meets environmental regulations.
The kit classification is 'Add On Board', which allows for easy modular integration into various systems.
