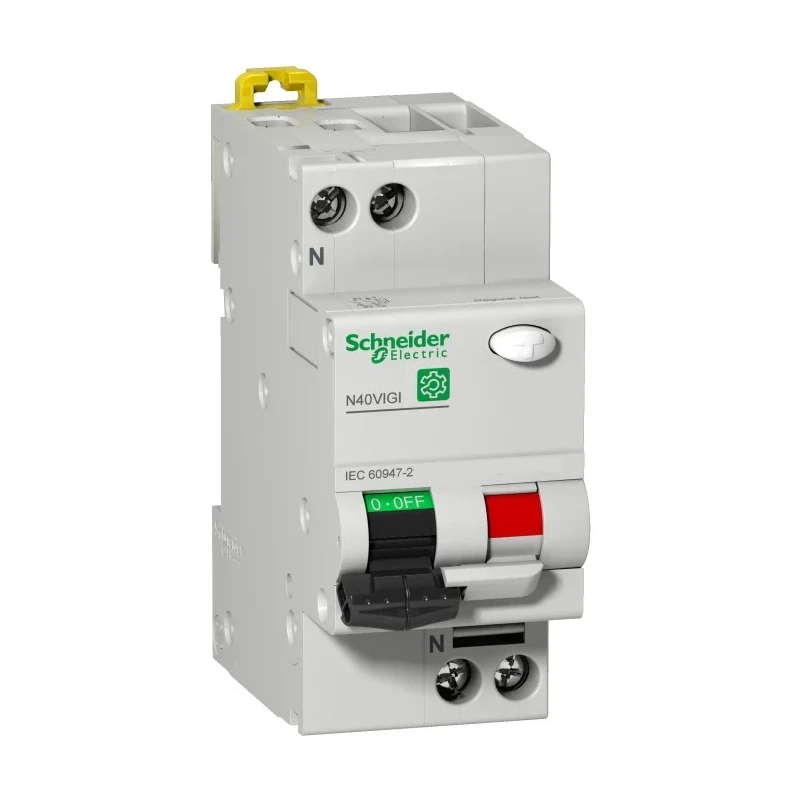

Schneider Electric Residual Current Circuit Breaker with Overload Protection 16A Current Rating 1-Pole 30mA Trip M9D11616

Schneider Electric M9D11616 Residual Current Circuit Breaker with Overload Protection is engineered to provide superior protection against overload and earth leakage currents for electrical distribution systems. Rated at 16 amperes with a 1-pole configuration and a trip sensitivity of 30 milliamperes, this breaker integrates a thermal magnetic mechanism for precise and dependable tripping.

The compact design features dimensions of 85mm height, 70mm depth, and 36mm width, making it ideal for installations with limited space. It supports a rated AC voltage of 240 volts and a breaking capacity of 6kA to handle fault conditions efficiently.

The device's Type C tripping characteristic allows it to accommodate higher inrush currents commonly associated with equipment such as X-ray machines or welding tools. Mounting is simplified with DIN rail compatibility, facilitating swift integration into distribution boards and control panels.

Its toggle switch reset actuator offers user-friendly manual operation. The unit is touch-proof with an IP20 ingress protection rating, ensuring safety against accidental contact and ingress of objects larger than 12mm.

Conforming to RoHS and IEC standards, this RCBO offers an environmentally responsible and certified solution for industrial, commercial, and residential electrical safety applications.

Designed with Type C tripping characteristic suitable for high inrush currents. Compact dimensions of 85mm height, 70mm depth, and 36mm width to fit constrained spaces. Equipped with thermal magnetic tripping mechanism for protection against overloads and earth leakages.

Rated for 240V AC operation with a breaking capacity of 6kA. Mountable on DIN rail ensuring quick and easy installation. Toggle switch for easy manual reset and operation. Mechanical service life of 20,000 operations for long-term reliability.

Designed with IP20 ingress protection making it touch-proof and dust resistant. Compliant with RoHS and IEC standards for safety and environmental considerations. Manufactured in Spain ensuring quality and traceability.

This Residual Current Circuit Breaker is well suited for use in electrical distribution boards, switchgears, and industrial control cabinets, providing vital protection for industrial, commercial, and residential electrical installations. Its specifications and robust construction support safe and reliable operation in diverse applications including manufacturing, HVAC systems, and power distribution.
