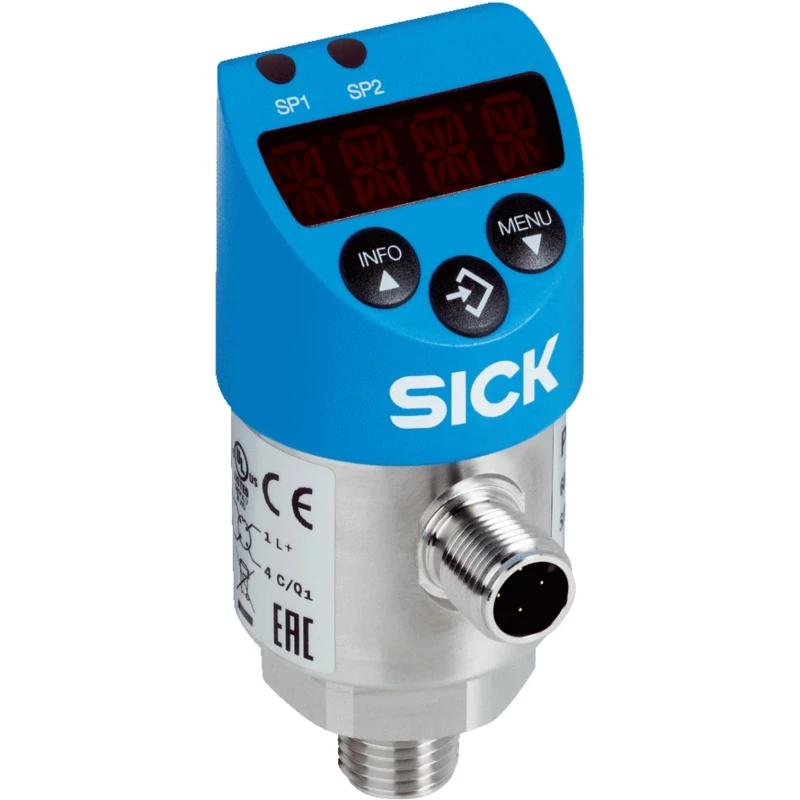

SICK PBS Plus Series Pressure Sensor, PNP/NPN NO/NC + Current/Voltage Output 0 to 400 bar Relative PBS2-RB400SG1SSDNMA0Z

The SICK PBS Plus Series Pressure Sensor model PBS2-RB400SG1SSDNMA0Z is a highly accurate industrial pressure measurement device designed for maximum pressure measurement up to 400 bar and minimum measurement of 0 bar. It features switchable PNP/NPN NO/NC switching outputs combined with current and voltage analog outputs, ideal for relative pressure readings in various media such as air, gas, hydraulic fluid, liquid, oil, and water. The device operates with a supply voltage range of 15 V to 35 V and delivers a rapid response time of 5 ms.

Constructed with a robust stainless steel measuring cell and plastic housing, it offers IP67-rated protection ensuring reliable operation in harsh industrial environments. The threaded mount type facilitates secure and flexible installation. The pressure sensor includes an IO-Link interface that transmits process data as measured pressure values and provides extensive diagnostics capability including monitoring of pressure peaks and ambient temperature, aiding predictive maintenance.

The device has a scalable analog output with a 5:1 turndown ratio for precision and maintains an accuracy of ±0.5%. It is suitable for diverse applications such as measurement of system pressure in hydraulic systems, controlling clamping pressure in CNC machines, monitoring cylinder pressure in hydraulic presses, control of cooling and lubricant system pressures, hydrostatic level measurement, and system pressure monitoring in PET bottle manufacturing.

The housing and display design allow twisting at two points enabling optimal orientation to suit installation requirements. The sensor is resistant to corrosion due to its fully welded stainless steel membrane and complies with key standards and approvals like EMC Directive (2014/30/EU), RoHS (2011/65/EU), and Pressure Equipment Directive (2014/68/EU).

Features switchable PNP and NPN outputs with NO/NC switching modes. Scalable analog current/voltage output with 5:1 turndown for accuracy. High measurement accuracy of ±0.5% and rapid 5 ms response time. IO-Link communication for process data transmission and diagnostics.

Rugged stainless steel and plastic housing with IP67 ingress protection. Threaded mount suitable for diverse industrial installations. Wide operating temperature range from -20°C to 85°C. Corrosion-resistant stainless steel membrane construction.

Ideal for hydraulic, automation, manufacturing, and level measurement applications.

This SICK PBS pressure sensor is a versatile, reliable solution for enhancing industrial control and monitoring processes. It is engineered to reduce storage costs with fewer variants, shorten delivery times, and simplifies installation through flexible housing orientation. It is built to meet stringent quality standards, making it suitable for laboratory, industrial, HVAC, and manufacturing environments. Explore more Pressure Sensor solutions on EnvMart for comprehensive industrial automation needs.
