MikroElektronika Sensor Development Tool PIC18F47K42 EasyPIC V8 Development Board MIKROE-3614

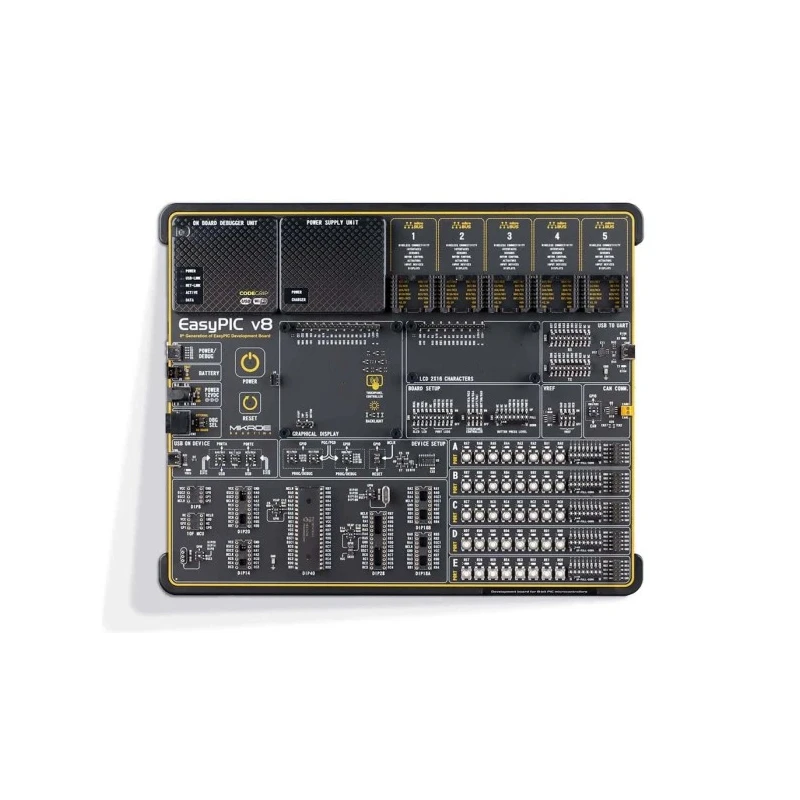

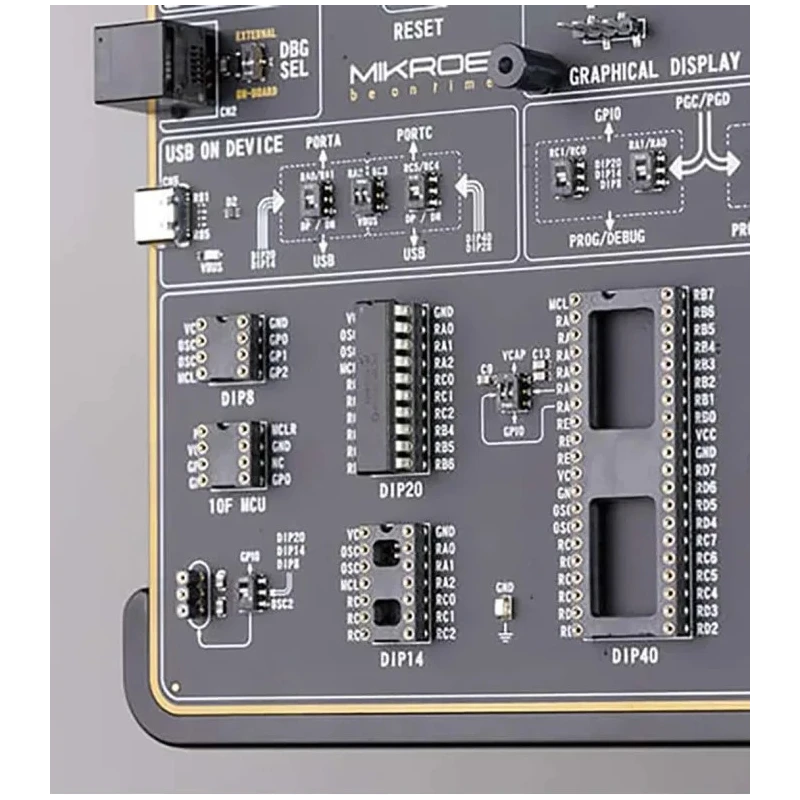

MikroElektronika MIKROE-3614 Sensor Development Tool EasyPIC V8 Development Board is a versatile and compact development platform designed for efficient development with the PIC18F47K42 8-bit MCU. The board comes equipped with an 8 MHz crystal oscillator and offers eight DIP sockets that accommodate MCU packages ranging from DIP8 up to DIP40, allowing developers to test different sizes of microcontrollers one at a time.

The design utilizes surface mounted technology ensuring enhanced quality, robustness, and ergonomic features for comfortable project development. The development board offers two distinct display connectors - a 1x16-pin header for connecting a 4-bit LCD module, and a 20-pin single row header supporting monochromatic GLCDs with a resolution of 128x64 pixels or EasyTFT boards for advanced graphical content visualization.

In addition, it supports interfacing of a resistive touch panel through dual connectors, featuring a four-pin flat cable (FFC) and a 1x4-pin header, enabling precise input methods for interactive applications.

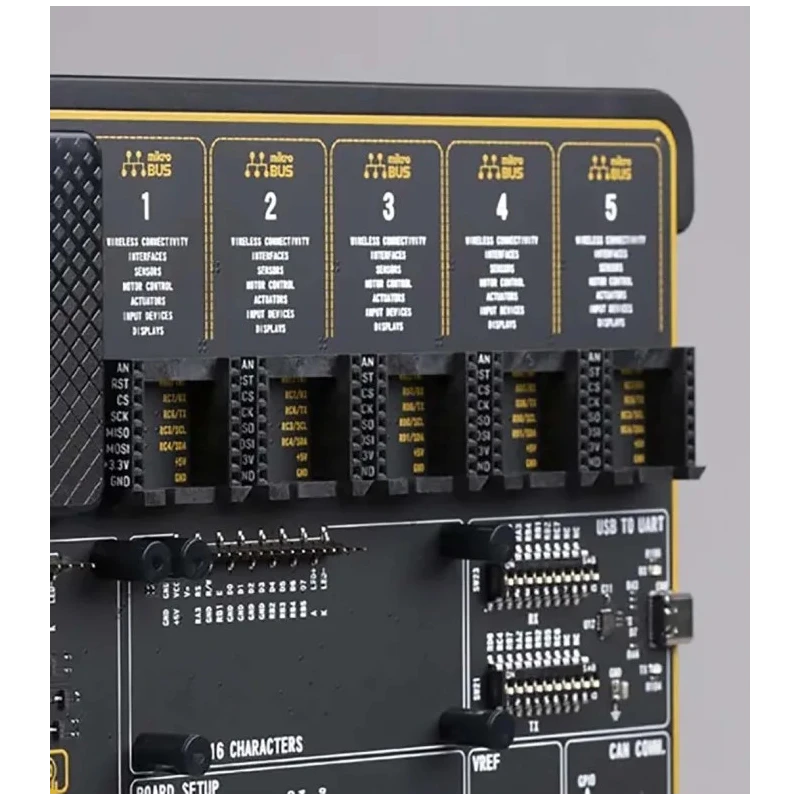

The board includes five improved mikroBUS™ sockets, compatible with the vast ecosystem of over 650 Click boards™. These add-on boards offer extensive functionalities including mixed signal, wireless connectivity, storage, interface, displays, human-machine interface, adapter, clock and timing, motor control, power management, and audio & voice modules. This modular approach accelerates prototyping and product development, reducing time to market.

The MikroElektronika EasyPIC v8 board is ideal for industrial, laboratory, and educational use in application areas requiring reliable sensor development and prototyping support. It provides a comprehensive hardware and software ecosystem facilitating graphical display, touch input, and modular expansion, making it a strong choice for embedded systems development with 8-bit PIC microcontrollers.

Includes PIC18F47K42 MCU with an 8 MHz crystal oscillator for reliable clocking. Features eight different DIP sockets supporting DIP8 to DIP40 MCU packages for flexible microcontroller testing. Provides two display connectors: 1x16-pin header for 4-bit LCD and 20-pin header supporting 128x64 pixel GLCD or EasyTFT boards.

Supports resistive touch panel interfacing via 4-pin flat cable and 1x4-pin header connectors. Equipped with five improved mikroBUS™ sockets compatible with over 650 Click boards™ for extensive modular expansion. Constructed with surface mounted technology for sturdy, compact, and ergonomic design.

Enables graphical or textual content display using basic 8-bit PIC MCUs, supporting advanced graphical interfaces with EasyTFT. Click boards™ offer rapid development and save time with plug-and-play hardware and software solutions.
