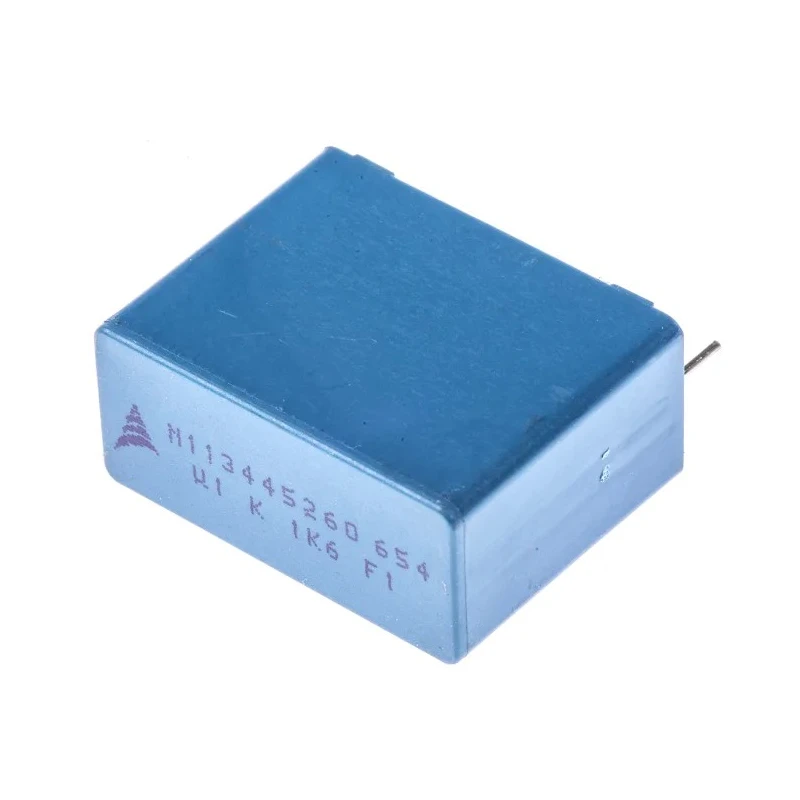

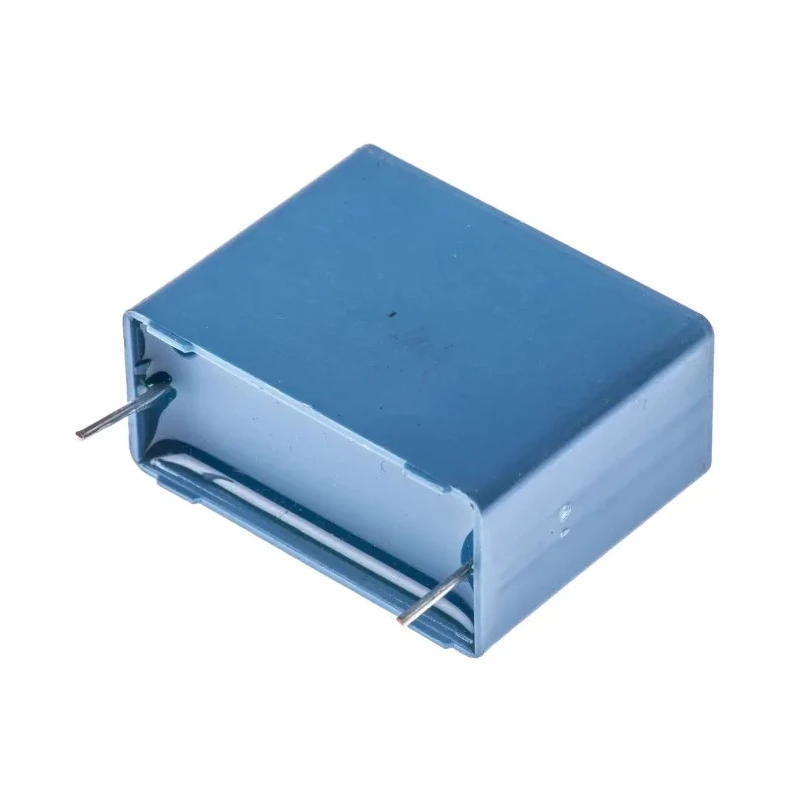

TDK Film Capacitor 100 nF 500V AC 1.6 kV DC Through Hole Mount B32654A1104K000

TDK B32654A1104K000 is a high-quality film capacitor with a capacitance of 100 nF, designed for use in industrial and electronic applications requiring reliable AC and DC voltage handling. This through hole mounted component is rated for 500V AC and up to 1.6 kV DC, making it well-suited for demanding power circuits.

The capacitor utilizes wound capacitor technology with an internal series connection, supporting voltages exceeding 1250 V DC. The encapsulation in a UL 94 V-0 flame retardant plastic case with epoxy resin sealing ensures high pulse strength and excellent contact reliability over time.

With a maximum operating temperature of 100°C, this component offers stable performance under elevated thermal conditions. Its lead pitch measures 27.5 mm with 0.8 mm lead diameter, facilitating easy and secure through hole PCB mounting.

TDK's B32654 series capacitors meet the automotive standard AEC-Q200 Rev D, supporting use in automotive electronic systems and other high-reliability environments. The compact dimensions of 31.5 mm length, 14 mm width, and 24.5 mm height allow for space-efficient circuit designs.

High pulse strength and small dimensions. Flame retardant plastic case achieving UL 94 V-0 standard. Reliable operation in TV S-correction, flyback, and electronic ballast circuits. Two-pin through hole mount format for easy integration.

This Film Capacitor is widely applicable in industrial, electronic, automotive, and power management systems requiring precise and durable passive components. EnvMart offers this component as a trusted solution for engineers and technicians designing robust electrical systems.
