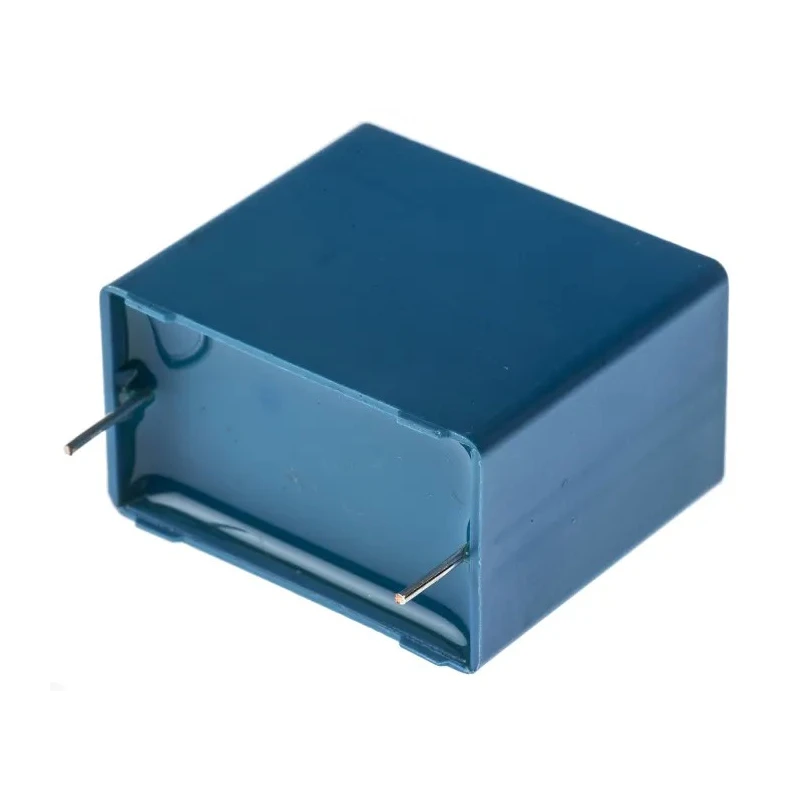

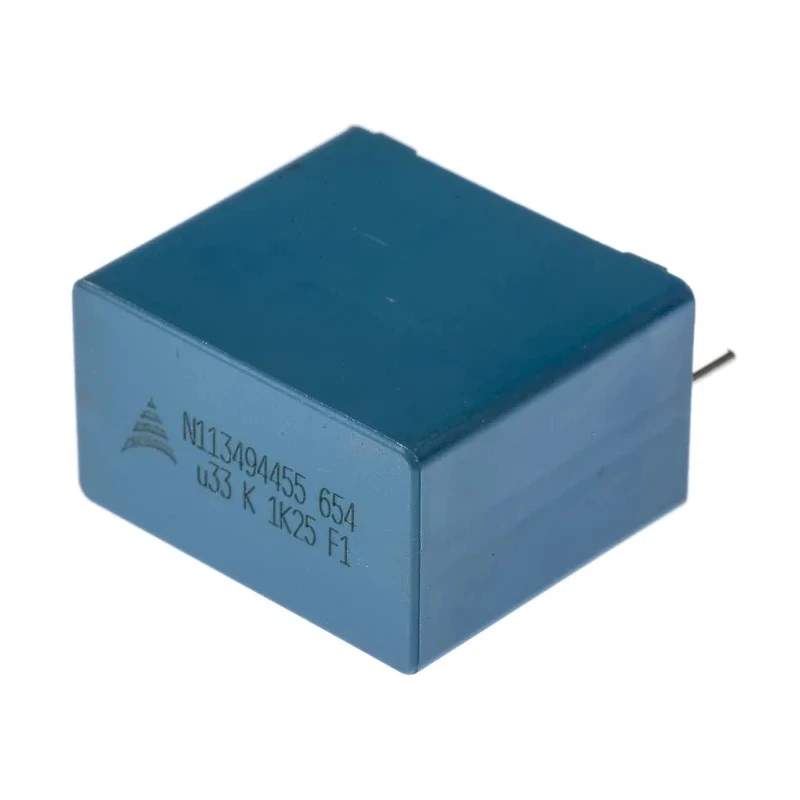

TDK Film Capacitor 330 nF 500V AC 1.25 kV DC Through Hole 2 Pin B32654A7334K000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 330 nF 500V AC 1.25 kV DC Through Hole 2 Pin B32654A7334K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	27.5mm
Length	31.5mm
Model	B32654A7334K000
Width	18mm
Mount Type	Through Hole
Series	B32654
Maximum Operating Temperature	100°C
Capacitance	330nF
Standards/Approvals	UL, RoHS
Pin Count	2
Rated AC Voltage	500V ac
Rated DC Voltage	1.25kV dc
Lead Pitch	27.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

The capacitor features wound technology with an internal series connection for VR ≥1250 V DC.
Plastic case is flame retardant to UL 94 V-0 with epoxy resin sealing.
High pulse strength ensures robust circuit performance.
Mount type is through hole with a lead pitch of 27.5 mm and 2 pins.
Capacitance is 330 nF, suitable for high-frequency circuits.
Compact dimensions support space-saving PCB layouts.
Approved to UL and RoHS standards for safety and compliance.
Maximum operating temperature is 100°C for versatile applications.

Product Description

TDK B32654A7334K000 Film Capacitor is a high-quality, through hole mounted film capacitor designed for demanding electronic applications. The capacitor has a capacitance of 330 nF and is rated for an AC voltage of 500 V and a DC voltage of 1.25 kV, making it suitable for high voltage circuits.

Utilizing wound capacitor technology with an internal series connection, it ensures reliability and performance where voltage requirements exceed 1250 V DC. The capacitor is encapsulated in a flame retardant plastic case compliant with UL 94 V-0 standards and sealed with epoxy resin for enhanced durability and safety.

It is designed to withstand high pulse strength and offers high contact reliability, ensuring stable operation in various electronic devices. The component measures 31.5 mm in length, 18 mm in width, and 27.5 mm in height, with a lead pitch of 27.5 mm and pin diameter of 0.8 mm, enabling easy through hole PCB mounting.

This capacitor complies with automotive standard AEC-Q200 Rev D and meets UL and RoHS approvals, underscoring its quality and environmental safety. It operates reliably at maximum temperatures up to 100°C, suitable for rigorous industrial and electronic device environments.

Typical industrial and electronic applications include TV S-correction circuits, TV flyback transformers, and electronic ballast circuits, where precise capacitance and voltage tolerance are critical for performance and longevity.

The capacitor features wound capacitor technology with an internal series connection for VR ≥1250 V DC. Plastic casing is flame retardant to UL 94 V-0 standards with epoxy resin sealing. High pulse strength and contact reliability ensure robust circuit performance.

Mount type is through hole with a lead pitch of 27.5 mm and 2 pins. Capacitance value is 330 nF, suitable for high-frequency electronic circuits. The component dimensions are compact for space-sensitive PCB layouts. Approved to UL and RoHS standards for safety and environmental compliance.

Maximum operating temperature is 100°C, suitable for a variety of electronic environments.

Choose the TDK B32654A7334K000 Film Capacitor for reliable performance in industrial, electronic, electronics manufacturing, and HVAC applications. Browse our extensive Film Capacitor range for diverse industrial needs on EnvMart.
