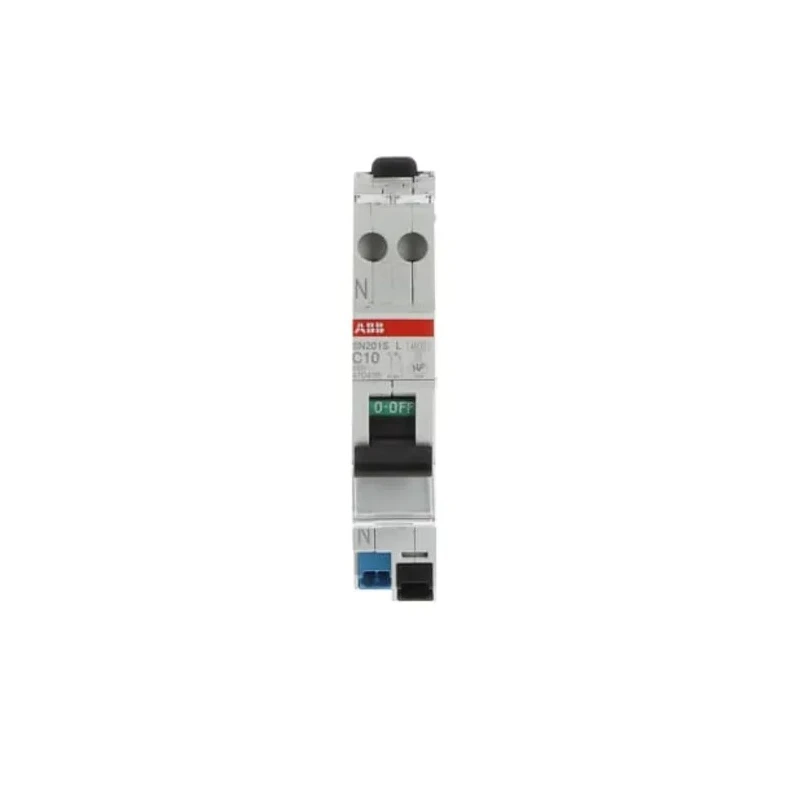

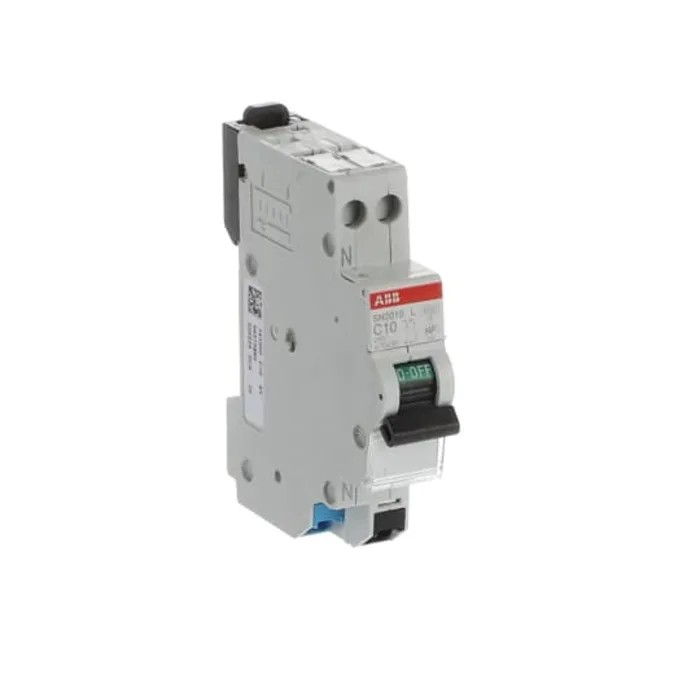

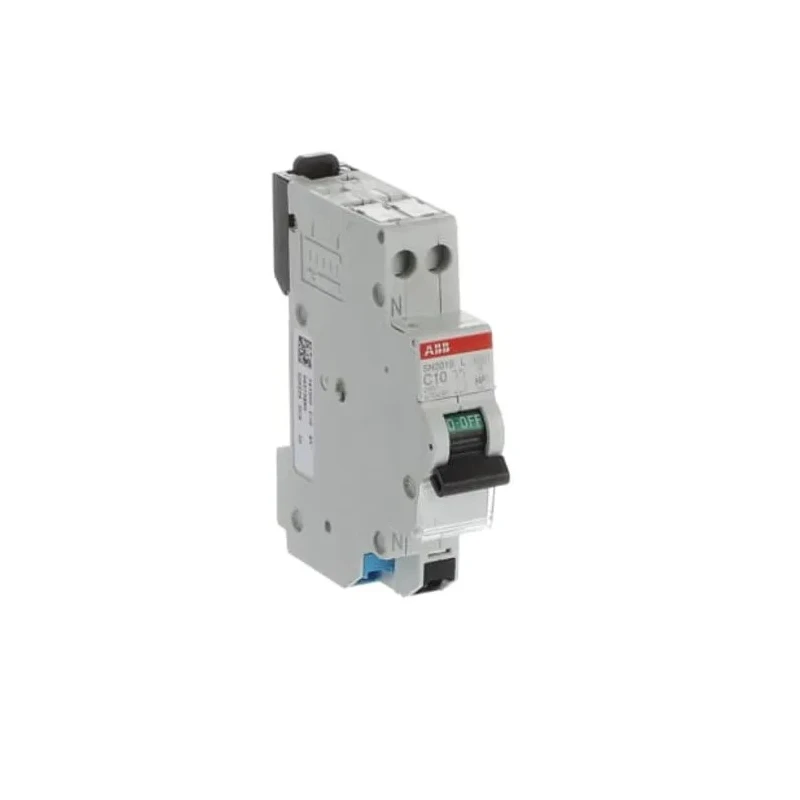

ABB Miniature Circuit Breaker SN201S, 1-Pole, 10A, Type C, 230V AC, 4.5 kA Breaking Capacity 2CSS245202R0104
Specifications
| Country of Origin | India |
|---|---|
| Range | SN201S |
| Brand | ABB |
| Height | 85mm |
| Model | 2CSS245202R0104 |
| Depth | 85mm |
| IP Rating | IP20 |
| Width | 18mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Series | SN201 |
| Terminal type | Screwless |
| Breaking Capacity | 4.5kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60898-1 |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
Key Features
- Screwless terminals enable fast and safe wiring connections.
- Toggle switch indicates clear contact position for easy monitoring.
- Mechanical endurance rated at 20,000 cycles ensures consistent performance.
- Wide operating temperature range from -25°C to +55°C suits demanding environments.
- IP20-rated housing protects internal components from accidental contact and debris.
- Compact design (69mm L x 18mm W x 85mm H) fits standard DIN rail mounting.
- Breaking capacity of 4.5 kA provides effective short circuit protection.
- Integrated 1P+N design includes neutral conductor for complex installations.
Product Description
ABB 2CSS245202R0104 Miniature Circuit Breaker SN201S series is designed for safe and effective circuit protection in electrical systems operating at 230V AC with a current rating of 10A. It combines compactness and high breaking capacity, ensuring prevention of overloads and short circuits in various environments including industrial, commercial, and domestic installations.
This single-pole breaker features screwless terminals to facilitate quick and secure connections. The toggle switch clearly shows contact status enabling straightforward fault detection. Its mechanical endurance is rated for 20,000 cycles, supporting long-term reliability. The enclosure has an IP20 rating, which protects against accidental contact with tools or wires, enhancing safety during operation and maintenance.
The device supports DIN rail mounting for modular system configurations. It withstands an operating temperature range of -25°C to +55°C, making it suitable for demanding conditions. The SN201S range's breaking capacity of 4.5 kA ensures robust short circuit interruption capability, complying with IEC/EN 60898-1 standards.
The integrated neutral conductor (1P+N) on the left side simplifies wiring in TN and IT electrical networks and medical equipment setups. This MCB is shock resistant to minimize accidental disconnections in vibrating environments.
Screwless terminals speed up installation and improve connection safety. Distinct toggle switch shows contact position for rapid diagnostic. Meets IEC/EN 60898-1 standards for low voltage circuit breakers. Compact dimensions enable efficient space utilization in electrical panels.
Suitable for use in TN systems, IT networks, commercial and residential electrical installations. Robust design grants resistance to mechanical shock and vibrations. Provides critical protection for electrical systems by preventing overload and short circuit damage.
This Miniature Circuit Breaker is an essential component in industrial automation, HVAC systems, water treatment facilities, commercial buildings, and residential electrical distribution boards. It ensures operational safety and reduces downtime associated with electrical faults.
Explore more trusted ABB electrical protection devices and circuit breakers at EnvMart to enhance your system safety and efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this miniature circuit breaker is 4.5 kA, providing effective short circuit protection.
This model has a current rating of 10A, suitable for various electrical applications.
It operates at a rated AC voltage of 230V, making it compatible with standard electrical systems.
The dimensions of this circuit breaker are 69mm in length, 18mm in width, and 85mm in height, allowing for compact installation.
It features screwless terminals, which enable fast and safe wiring connections.
The IP rating of this circuit breaker is IP20, which protects internal components from accidental contact and debris.
The mechanical endurance of this model is rated for 20,000 cycles, ensuring consistent performance over time.
This unit supports DIN rail mounting, making it suitable for modular system configurations.
The tripping characteristics of this breaker are Type C, which is suitable for applications with moderate inrush currents.
It can be used in various environments, including industrial, commercial, and residential installations, due to its wide operating temperature range.
This circuit breaker complies with IEC/EN 60898-1 standards for low voltage circuit breakers, ensuring safety and reliability.
Yes, this model includes an integrated neutral conductor (1P+N) for complex installations, simplifying wiring in TN and IT electrical networks.
