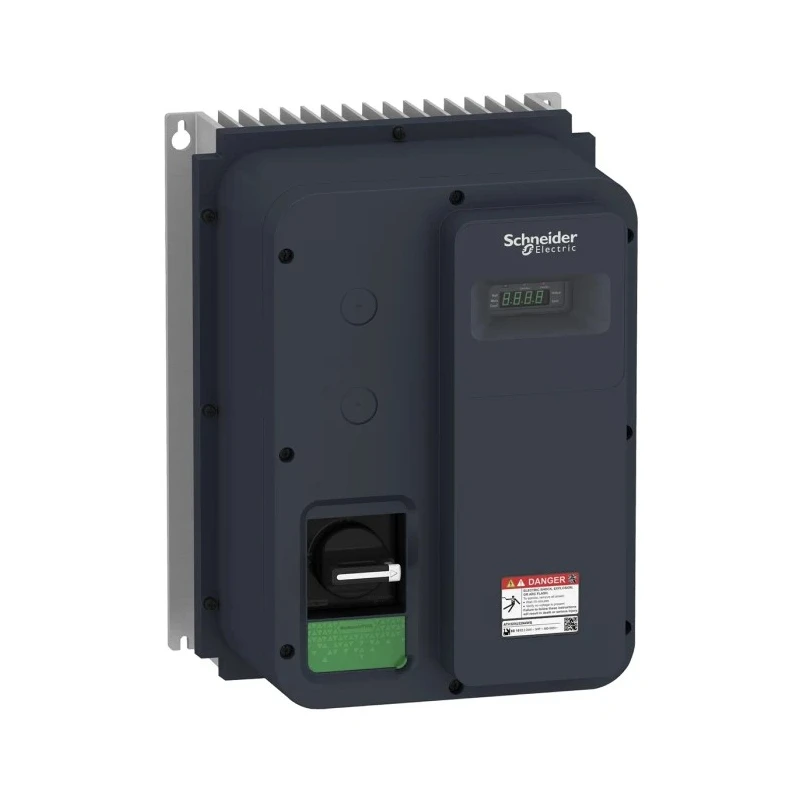

Schneider Electric Variable Speed Drive, 3 kW, 3 Phase, Altivar Series 500V AC 7.1 A ATV320U30N4WS

Schneider Electric ATV320U30N4WS Variable Speed Drive is a part of the Altivar ATV320 series engineered for reliable and efficient motor control in industrial automation. This 3 kW drive supports three-phase synchronous and asynchronous AC motors, delivering advanced open loop motor control with dynamic accuracy even at low speeds, ideal for start/stop applications.

The device features a robust IP65 rated enclosure ensuring protection against harsh environmental conditions, and it meets multiple international standards including CSA, UL 61800-5-1, and IEC certifications, making it suitable for global use.

Connectivity capabilities are extensive with support for industrial networks such as EtherNet/IP, Modbus TCP, Profinet EtherCAT, Profibus, CANopen, and DeviceNet, enabling seamless integration into automation architectures. The drive has an output frequency range of 0.1 to 599 Hz and a maximum output current of 7.1 A on 3-phase power supply from 380 V minimum to 500 V AC maximum.

Safety features include safety torque OFF and four full safety monitoring functions that simplify machine certification and compliance. Mounting options are flexible, designed for wall installation to fit inside cabinets or machine frames. The device dimensions are 250 mm length, 235 mm width, and 340 mm depth, accommodating various spatial requirements.

Ideal for applications in industrial machinery, automation systems, HVAC, manufacturing lines, and more, this variable speed drive contributes to energy savings and enhanced process control. Its rugged design with IEC 60721-3-3 class 3C3 coated printed circuit boards extends machine availability even under harsh operating conditions.

This product is made in Indonesia and is part of Schneider Electric's commitment to sustainability through the Better World product program. Supports power rating of 3 kW suitable for various machine applications. Operates with three phases and maximum output current of 7.1 A.

Designed for wall mounting with IP65 rated enclosure for protection. Compatible with AC motors including synchronous and asynchronous types. Advanced connectivity options such as EtherNet/IP, Modbus TCP, Profinet, EtherCAT, Profibus, CANopen, and DeviceNet.

Offers output frequency range from 0.1 to 599 Hz for precision control. Wide operating temperature range from -10°C to +60°C for diverse industrial environments. Features embedded safety functions including safety torque OFF and full safety monitoring.

Dimensions are 250 mm length, 235 mm width, and 340 mm depth. Certified to multiple international standards including UL, CSA, IEC, NOM, and REACH. Explore more Variable Speed Drives and automation solutions from Schneider Electric at EnvMart to optimize your industrial applications.
