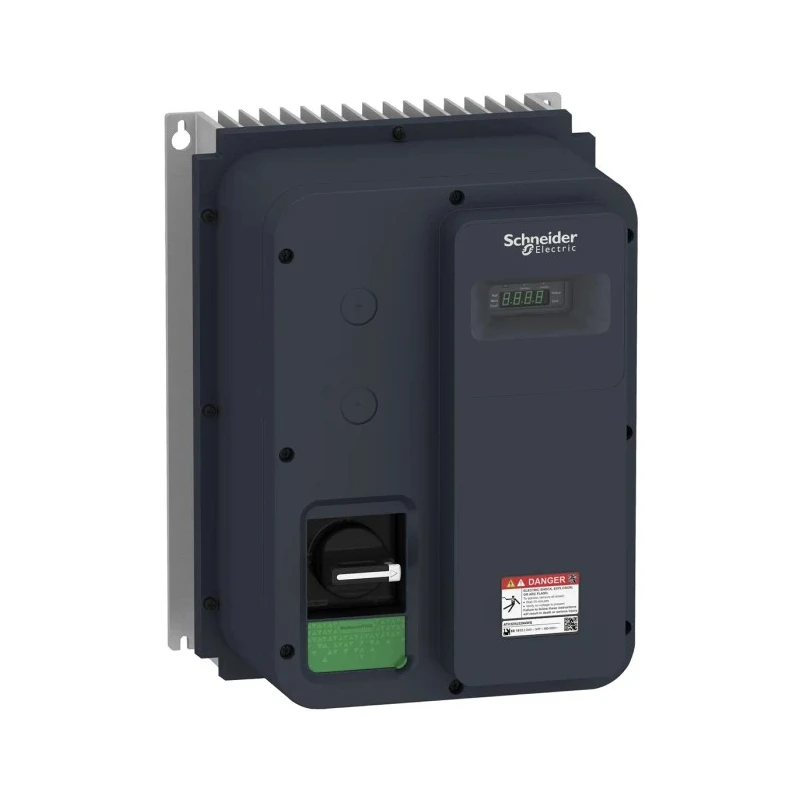

Schneider Electric Variable Speed Drive 4 kW 3 Phase Altivar Series ATV320U40N4WS IP65 380-500V AC 9.5A
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320U40N4WS |
| IP Rating | IP65 |
| Drive Type | Variable Speed |
| Mount Type | Wall |
| Overall Length | 250mm |
| Series | Altivar |
| Overall Width | 235mm |
| Power Rating | 4kW |
| Maximum Operating Temperature | +60°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | -10°C |
| Interfaces | EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet |
| Number of Phases | 3 |
| Maximum Output Current | 9.5A |
| Maximum Supply Voltage | 500V ac |
| Overall Depth | 340mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor, Synchronous, Asynchronous Motor |
Key Features
- Delivers a maximum output current of 9.5 A for robust motor control.
- Supports asynchronous and synchronous AC motors with advanced open loop motor control.
- Provides embedded EMC C2 filter and is fanless for operation in harsh environments.
- Equipped with Modbus and CANopen communication via front RJ45 connector.
- Offers built-in safety functions configurable with SoMove software.
- Complies with multiple international standards including IEC, UL, and CSA certifications.
- Designed for industrial applications like conveyors, packaging, gantry cranes, woodworking, and metal processing.
- Compact wall-mount design with dimensions of 250mm length, 235mm width, and 340mm depth.
Product Description
Schneider Electric ATV320U40N4WS variable speed drive is a high-performance Altivar series drive designed to control 3-phase asynchronous and synchronous AC motors with power up to 4 kW. It supports a supply voltage range from 380V to 500V AC and provides a maximum output current of 9.5 A. The drive features an IP65 protection rating, enabling operation in harsh and dusty environments with the ability to be cleaned from chemical pollution, all without a cooling fan due to its fanless design and embedded EMC C2 filter.
This drive is wall-mountable and measures 250mm in length, 235mm in width, and 340mm in depth, weighing approximately 8.2 kg. It operates reliably within an ambient temperature range of -10°C to +60°C, suitable for challenging industrial conditions.
Advanced connectivity options include Modbus and CANopen protocols accessible through an RJ45 front connector, enabling versatile integration within machine automation systems. Safety features are integrated with five configurable safety functions accessible via SoMove software, ensuring compliance with machine safety standards.
The ATV320U40N4WS meets multiple international certifications including IEC, UL, CSA, and NOM, guaranteeing compliance and reliability. It is optimized for applications such as conveyors, carton packers, gantry cranes, woodworking and metal processing machinery, fans, and the food and beverage industry.
Delivers precise motor control with open loop and dynamic accuracy suited for start/stop and low-speed operation. Provides energy-saving benefits aligned with Schneider Electric’s Better World initiative. Supports installation either standalone or in multi-drive configurations for flexible deployment.
Compatible with EcoStruxure Machine software for integrated machine development, configuration, and commissioning. Explore more Schneider Electric products and Variable Speed Drives in EnvMart’s comprehensive industrial automation category for tailored automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This variable speed drive has a power rating of 4 kW, designed to control 3-phase asynchronous and synchronous AC motors.
The ATV320U40N4WS delivers a maximum output current of 9.5 A, suitable for robust motor control.
It operates within a supply voltage range of 380V to 500V AC, making it versatile for various industrial applications.
The dimensions of the ATV320U40N4WS are 250mm in length, 235mm in width, and 340mm in depth.
This model has an IP65 rating, allowing it to operate in harsh and dusty environments without a cooling fan.
It supports multiple interfaces, including EtherNet/IP, Modbus TCP, Profinet, EtherCAT, Profibus, CANopen, and DeviceNet.
The ATV320U40N4WS operates reliably within an ambient temperature range of -10°C to +60°C.
It is optimized for industrial applications such as conveyors, packaging, gantry cranes, woodworking, and metal processing.
Yes, it is compatible with both synchronous and asynchronous AC motors, providing advanced open loop motor control.
The ATV320U40N4WS includes built-in safety functions that are configurable via SoMove software, ensuring compliance with safety standards.
It is designed to save energy, aligning with Schneider Electric’s Better World initiative, making it efficient for industrial use.
This variable speed drive weighs approximately 8.2 kg, making it manageable for wall-mount installation.
