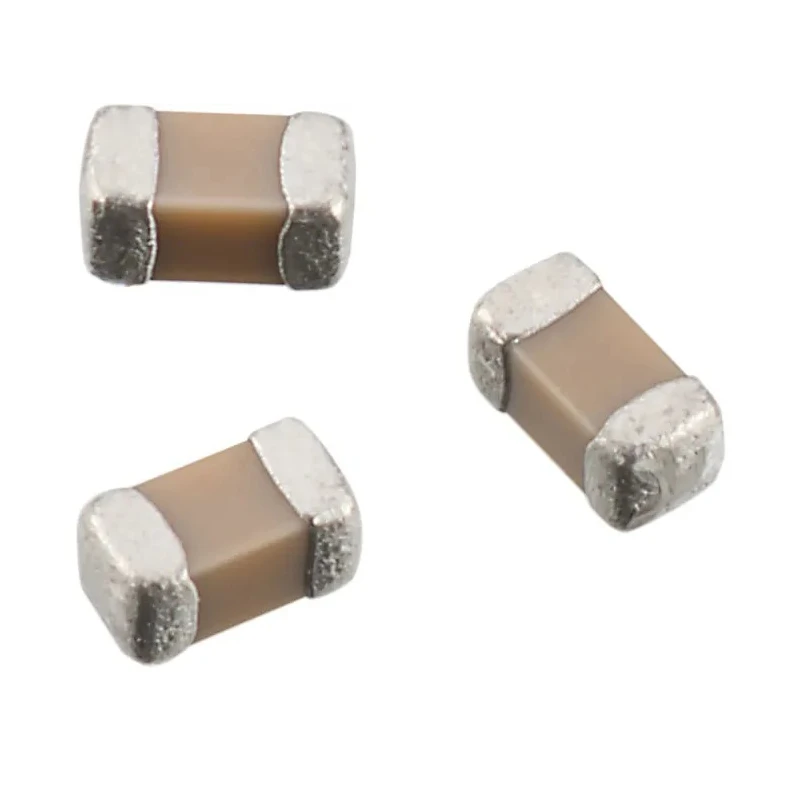

Wurth Elektronik 680 pF 2000V ±10% Multilayer Ceramic Capacitor Surface Mount 1206 WCAP-CSST 885382208014
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 2000V |
| Capacitance Range | 220 pF - 2.2 μF |
| Brand | Wurth Elektronik |
| Operating Temperature | -55 °C up to + 125 °C |
| Height | 1.25mm |
| Length | 3.2mm |
| Width | 1.6mm |
| Mounting Style | SMT-Chip |
| Mount Type | Surface |
| Series | WCAP-CSST |
| Temperature Coefficient | ± 15 % |
| Termination | Ag-Polymer/Ni/Sn |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 680pF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Package/Case | 1206 |
| Dielectric | X7R |
| Suppression Class | Class II |
| Recommended soldering | Reflow soldering |
| Voltage range (UR) | 16 V(DC) - 2 kV(DC) |
| Sizes | 0603 / 0805 / 1206 / 1210 |
Key Features
- This capacitor uses X7R dielectric suitable for a temperature range of -55°C to 125°C.
- It features solder termination with Ag-Polymer/Ni/Sn finish enhancing reliability.
- The component is designed for surface mount technology, ideal for SMT assembly.
- The component size is 3.2 mm length by 1.6 mm width and 1.25 mm height.
- It belongs to the WCAP-CSST series with a suppression Class II rating compliant with RoHS standards.
- Operating voltage range is 16 V (DC) to 2 kV (DC), supporting high voltage applications.
- Recommended soldering methods include reflow soldering and wave soldering for thicknesses ≤0.85 mm.
- Popular for use in power supply circuits and lighting systems requiring durable multilayer capacitors.
Product Description
Wurth Elektronik 885382208014 is a 680 pF Multilayer Ceramic Capacitor designed for surface mounting, housed in a 1206 package. It has a voltage rating of 2000V and a tolerance of ±10%, featuring the X7R dielectric which provides a wide operating temperature range of -55°C to 125°C. This capacitor is tailored for applications subject to high mechanical stress, ensuring durability and reliability.
The component measures 3.2 mm in length, 1.6 mm in width, and 1.25 mm in height, making it suitable for compact SMT assemblies. Its termination type consists of Solder with an Ag-Polymer/Ni/Sn finish which supports excellent solderability and mechanical strength.
It belongs to the WCAP-CSST series and features a suppression class II which complies with RoHS Directive standards. The operating voltage range spans from 16 V(DC) to 2 kV(DC), making it suitable for high voltage power supply designs, lighting, and other industrial electronic uses.
The capacitor’s recommended soldering methods include reflow soldering and wave soldering for thicknesses less than or equal to 0.85 mm, ensuring efficient manufacturing process compatibility. This product is manufactured in Taiwan, Province Of China.
This capacitor offers stable capacitance and reliable performance across temperature extremes. It is particularly suitable for applications requiring high absorption of mechanical stress. Surface mount technology allows for effective automated assembly.
RoHS compliance guarantees environmentally friendly manufacturing. A broad capacitance range of 220 pF to 2.2 μF is available in the product series. The capacitor is widely used in industrial, manufacturing, and power electronics sectors.
Explore additional Wurth Elektronik capacitors and electronic components in EnvMart’s comprehensive catalog to meet your industrial and commercial application needs.
Explore more products in our Multilayer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this capacitor is 680 pF.
This model has a voltage rating of 2000V.
It operates within a temperature range of -55°C to 125°C.
This capacitor uses X7R dielectric.
The dimensions are 3.2 mm in length, 1.6 mm in width, and 1.25 mm in height.
The recommended soldering methods include reflow soldering and wave soldering for thicknesses less than or equal to 0.85 mm.
It features a solder termination with an Ag-Polymer/Ni/Sn finish.
Yes, it complies with RoHS standards.
This capacitor belongs to the WCAP-CSST series.
The tolerance is ±10%.
It is suitable for high voltage power supply designs and lighting systems.
This capacitor is manufactured in Taiwan, Province Of China.
