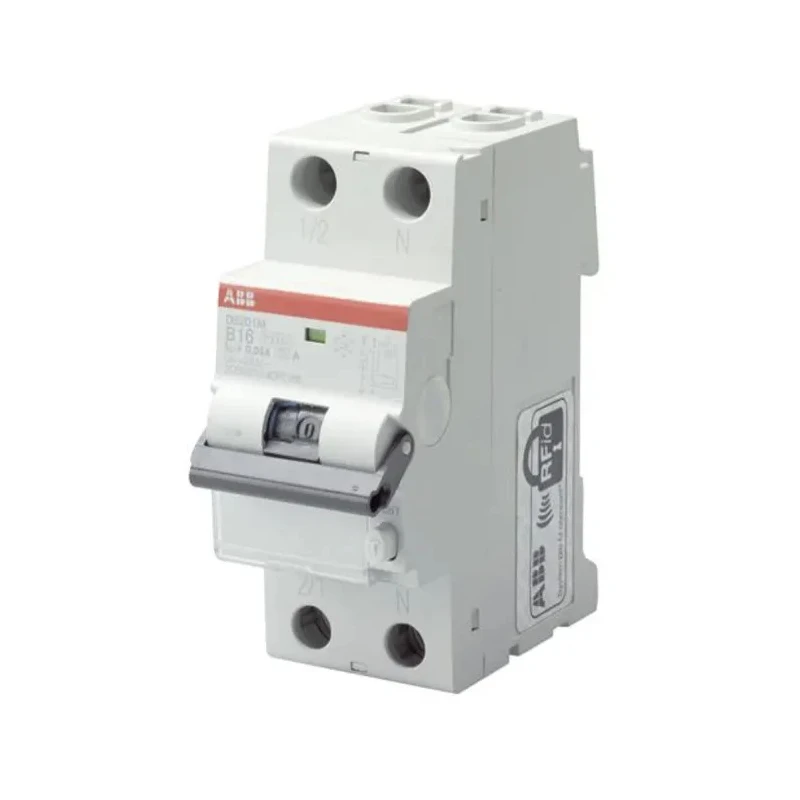

ABB Residual Current Circuit Breaker with Overload Protection, 16A Current Rating, 1-Pole, 30 mA Trip 2CSR245441R1164/471033



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	DS201
Brand	ABB
Height	85mm
Model	2CSR245441R1164/471033
Depth	85mm
Width	69mm
Current Rating	16A
Series	DS201
Breaking Capacity	4.5kA
Number of Poles	1
Rated AC Voltage	240V ac
Tripping Characteristics	Type C
Trip Sensitivity	30mA
Earth Leakage Protection Type	Type A

Key Features

Designed to protect single-phase circuits against overload and short-circuit currents.
Features resistance to unwanted trippings ensuring continuity of service.
Provides protection against indirect and direct contacts with 30 mA sensitivity.
Compact two-module size suitable for installations where neutral on the left is required.
Conforms to international standards EN 61009-1, IEC 61009-1, IEC 61009-2-1, and EN 61009-2-1.
Breaking capacity of 4.5 kA supports high fault current interruption.
Rated for 240V AC operation with Type C tripping characteristics.
Constructed to provide earth leakage protection classified as Type A.

Product Description

ABB 2CSR245441R1164/471033 Residual Current Circuit Breaker with Overload Protection is part of the DS201 series, engineered for the protection of single-phase electrical circuits. This 1-pole device is rated for a current of 16 amperes and features a sensitive 30 mA trip threshold tailored to increase safety by preventing electrical faults.

Built to endure and minimize nuisance tripping, this breaker ensures reliable continuity of electrical service while delivering essential safeguards against overload and short-circuit conditions. Its design incorporates protection against both indirect and direct contact hazards, complying with earth leakage protection Type A classifications.

The compact two-module device is specifically suited for installations requiring a neutral connection to be positioned on the left side. Rated at 240V AC with Type C tripping characteristics, it handles transient surges and faults effectively.

Manufactured to meet stringent standards including EN 61009-1, IEC 61009-1, IEC 61009-2-1, and EN 61009-2-1, this breaker supports a breaking capacity of 4.5 kA, thereby providing robust fault interrupting ability for safe operation in various industrial, commercial, and residential electrical installations.

Designed for protection against overload and short-circuit currents in single-phase circuits. Offers reliable resistance to unwanted tripping, enhancing service continuity. Includes additional safety through earth leakage protection with 30 mA sensitivity.

Compact footprint of 85mm x 69mm x 85mm fits tightly in electrical panels. Ideal for circuits requiring neutral connection on the left side. Conforms to relevant IEC and EN standards assuring quality and reliability. Breaking capacity ensures interruption of high fault currents up to 4.5 kA.

Type C tripping characteristics aid in selective and sensitive fault detection. Rated for 16A current and 240V AC voltage applications.

This residual current circuit breaker is recommended for use in industrial, commercial, and residential electrical system protections, offering peace of mind through safeguarding electrical installations from faults and overloads. Its trusted ABB brand and proven series model make it a dependable choice for maintainers and engineers seeking enhanced safety solutions.
