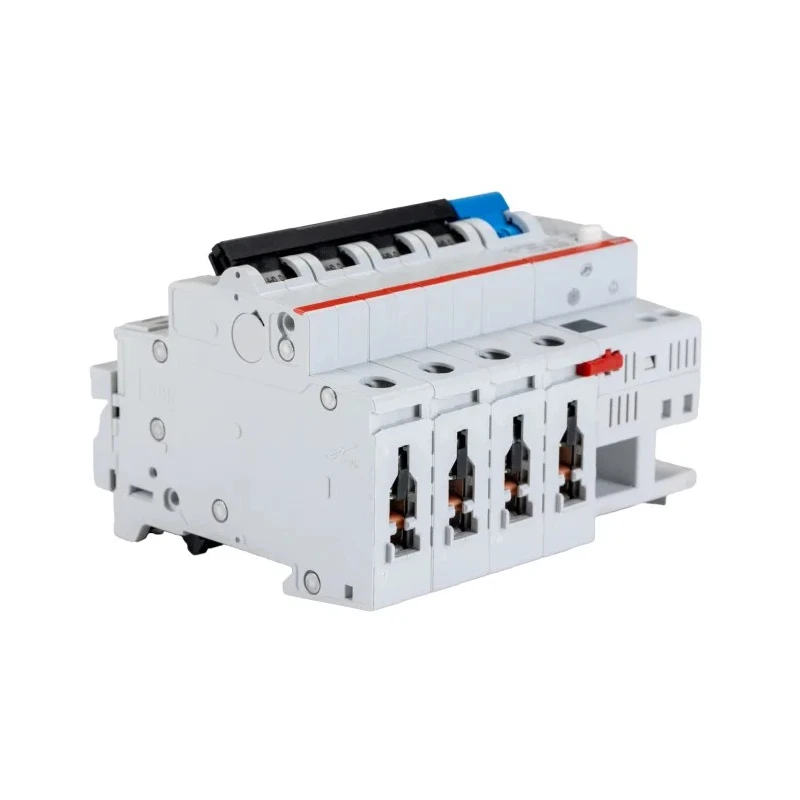

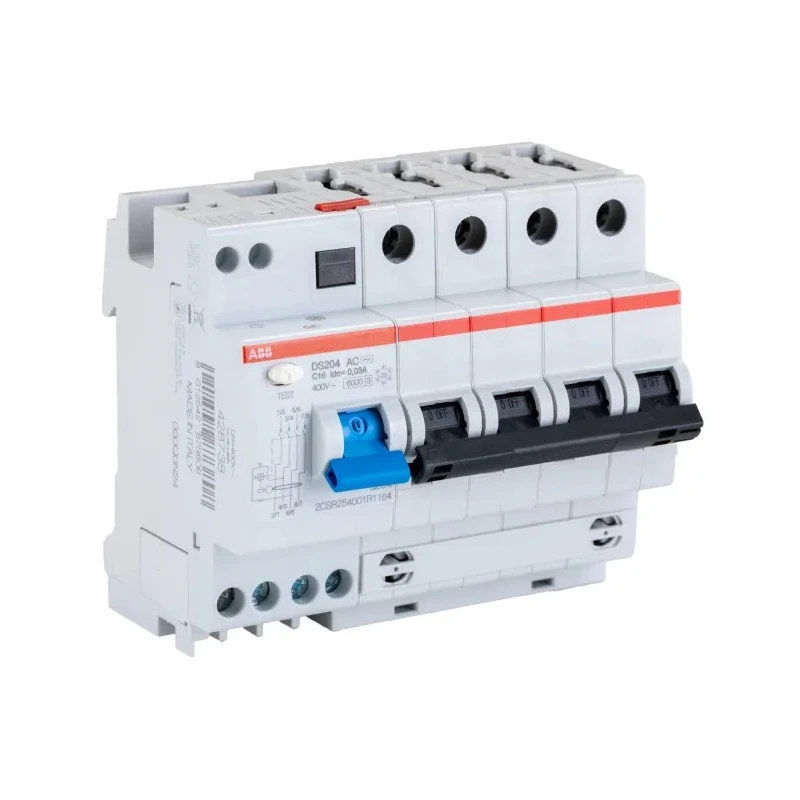

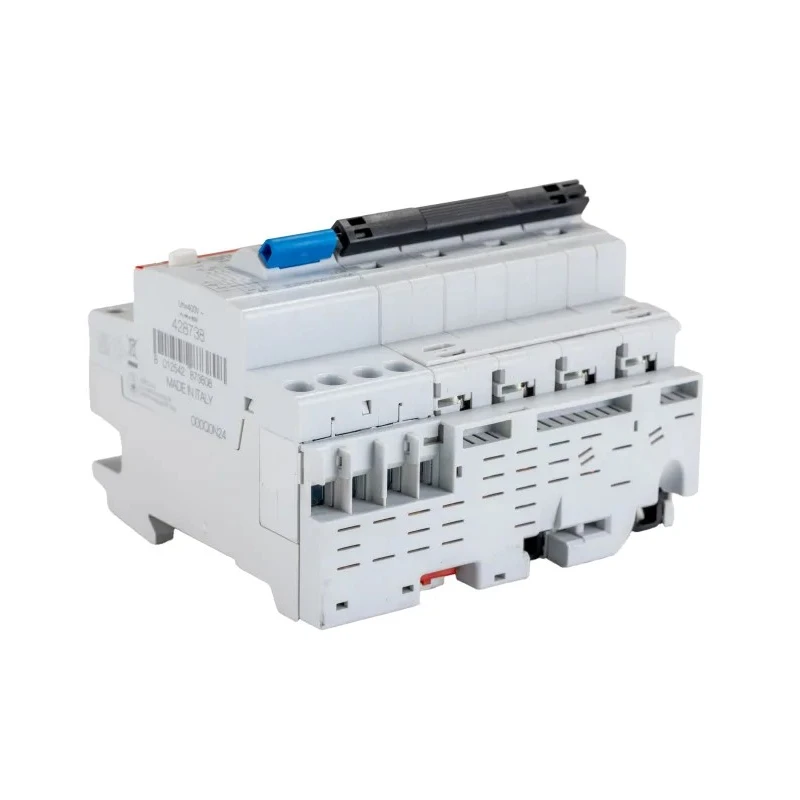

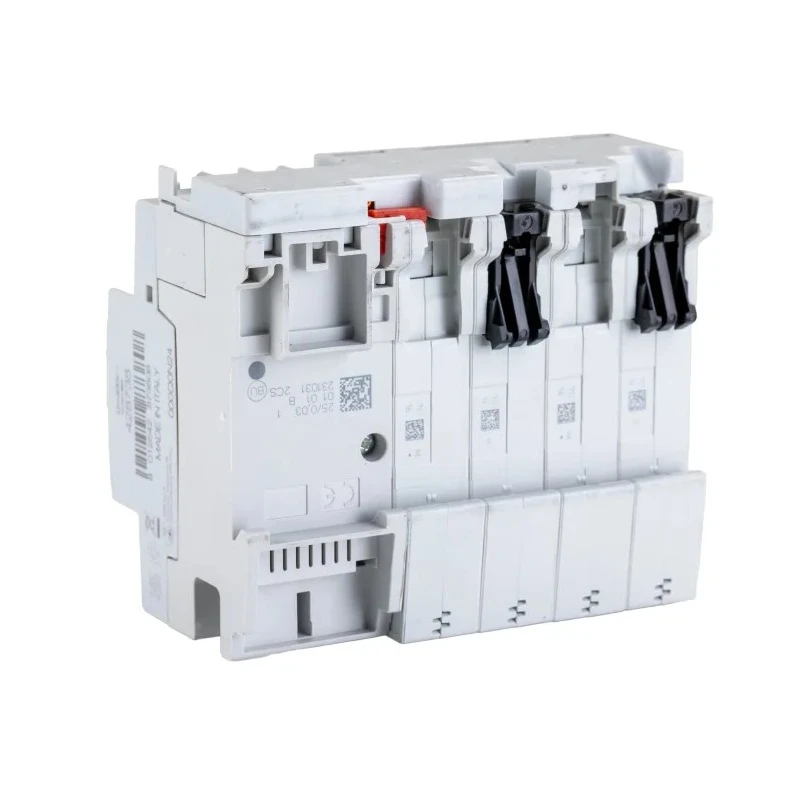

ABB Residual Current Circuit Breaker with Overload Protection, 16A, 4-Pole, 400V AC, 30mA Type C DS200 2CSR254001R1164

Free Delivery in India | Lowest Global Shipping Charges

ABB Residual Current Circuit Breaker with Overload Protection, 16A, 4-Pole, 400V AC, 30mA Type C DS200 2CSR254001R1164



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Brand	ABB
Height	93mm
Model	2CSR254001R1164
Depth	69mm
Width	105mm
Current Rating	16A
Series	DS200
Terminal type	Busbar
Breaking Capacity	10kA
Number of Poles	4
Standards/Approvals	IEC/EN 60947-2, IEC/EN 61009-1
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Reset Actuator Type	Lever
Trip Sensitivity	30mA
Earth Leakage Protection Type	AC

Key Features

Provides overload and short circuit protection for electrical installations.
Features a 4-pole configuration for comprehensive safety.
Suitable for use with residential, commercial, and industrial electrical systems.
Rated for 400V AC with busbar terminal type for easy installation.
30 mA trip sensitivity ensures safe earth leakage protection.
Utilizes Type C tripping characteristics for efficient response to faults.
Complies with IEC/EN 60947-2 and IEC/EN 61009-1 standards.
Compact design measuring 93mm height, 105mm width, and 69mm depth.

Product Description

ABB 2CSR254001R1164 Residual Current Circuit Breaker (RCBO) with Overload Protection combines state-of-the-art safety and performance for modern electrical systems. Offering a high level of protection against overloads and short circuits, this circuit breaker is part of ABB's DS200 series, renowned for its reliability and compliance with global standards.

The device is engineered with a 16A current rating and features a 4-pole configuration, making it ideal for comprehensive circuit protection in both residential and industrial settings. It operates efficiently at a rated AC voltage of 400V and features a busbar terminal type for straightforward and secure installation.

With a trip sensitivity of 30mA, this RCBO ensures precise earth leakage protection, safeguarding users and equipment against accidental contact and electrical faults. The Type C tripping characteristic provides quick and effective response to overload and short-circuit events, reducing downtime and enhancing safety.

The breaker boasts a robust breaking capacity of 10kA and utilizes a lever reset actuator for hassle-free operation. It is built to meet strict IEC/EN 60947-2 and IEC/EN 61009-1 standards, emphasizing ABB's commitment to quality and safety.

Provides overload and short circuit protection for electrical installations. Features a 4-pole configuration for comprehensive safety. Suitable for use with residential, commercial, and industrial electrical systems. Rated for 400V AC with busbar terminal type for easy installation.

30 mA trip sensitivity ensures safe earth leakage protection. Utilizes Type C tripping characteristics for efficient response to faults. Complies with IEC/EN 60947-2 and IEC/EN 61009-1 standards. Compact design measuring 93mm height, 105mm width, and 69mm depth.

This ABB RCBO is recommended for applications requiring reliable protection against electrical faults, such as residential distribution boards, commercial power panels, and industrial control systems. Its Italian-made design ensures durability and performance across a wide range of environments.
