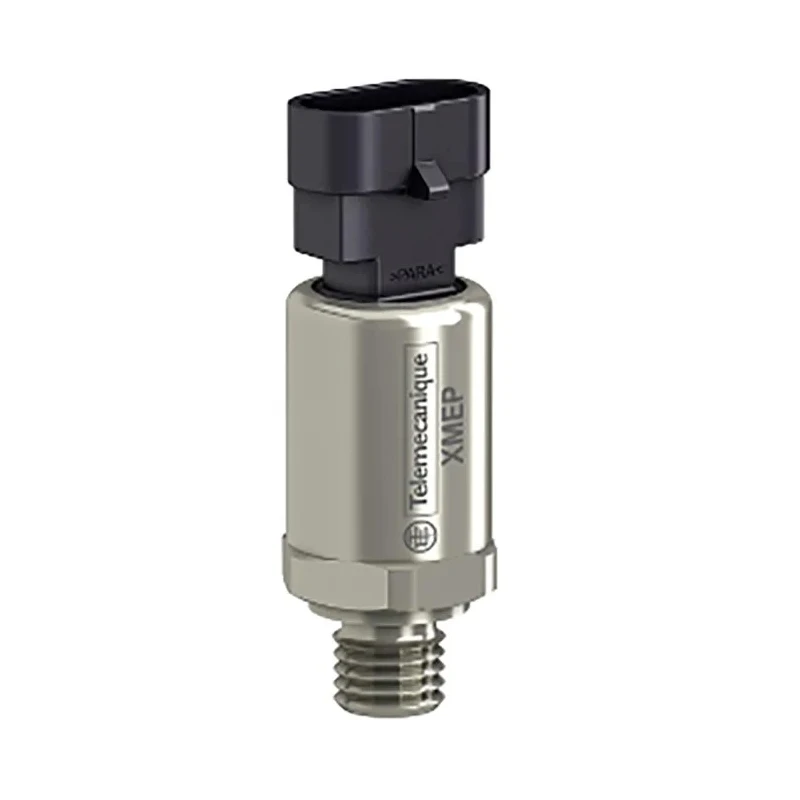

Telemecanique Sensors OsiSense XM Series Pressure Sensor 0 to 100 bar Analogue Output XMEP100BV11F

Telemecanique Sensors XMEP100BV11F is part of the OsiSense XM series, offering precise analogue pressure measurement from 0 to 100 bar. This sensor is engineered with high durability materials such as fluoropolymer, fluorocarbon, and 316L stainless steel, making it suitable for demanding industrial environments.

With an accuracy of ±0.5%, the sensor provides reliable pressure data for applications involving air, fresh water, and hydraulic oil. Its analogue output voltage range of 0.5 to 4.5V ensures compatibility with various control and automation systems.

The sensor features a male connector terminal and screw mounting type, enabling straightforward installation and secure connectivity. It is designed to endure harsh conditions, with IP67 and IP65 ratings offering strong protection against dust and water ingress, and an operating temperature range spanning from -40°C to 100°C.

Fast response times of 2 milliseconds enable real-time pressure monitoring, critical for automation, manufacturing, and process control. The device complies with rigorous industry standards including UL 61010-1, RoHS, REACH, ISO 14982, ISO 13766, and EN/IEC 61326-2-3, supporting global regulatory requirements.

This pressure sensor is widely used in industrial automation, hydraulic systems, water treatment plants, and HVAC controls, providing dependable pressure measurement solutions. The sensor features an output voltage range of 0.5 to 4.5V suitable for analogue signal interfacing.

It has an accuracy of ±0.5%, ensuring precise pressure measurement. Constructed with durable materials including fluoropolymer, fluorocarbon, and 316L stainless steel for robust housing. IP67 and IP65 rated for excellent protection against dust and water ingress.

Operates reliably across a wide temperature range from -40°C to 100°C. Designed with a male connector terminal and mounted via screw for secure installation. Compatible media includes air, fresh water, and hydraulic oil.

Fast response time of 2 milliseconds for timely pressure monitoring. Complies with multiple standards: UL 61010-1, RoHS, REACH, ISO 14982, ISO 13766, EN/IEC 61326-2-3, CE, cULus among others. Explore the full range of Telemecanique Sensors products in the Pressure Sensors category at EnvMart for reliable and certified industrial automation components.
