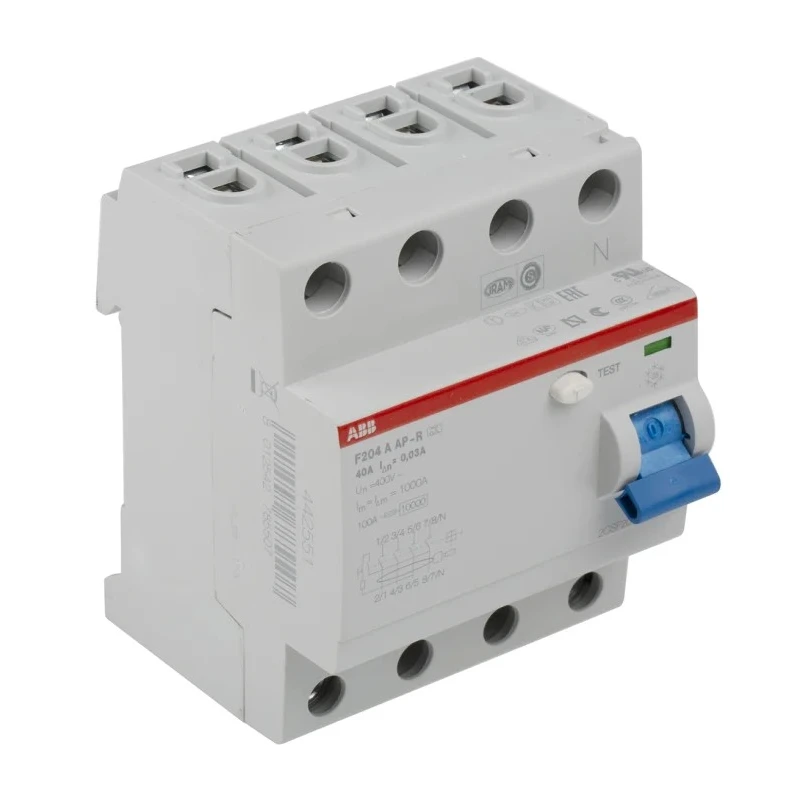

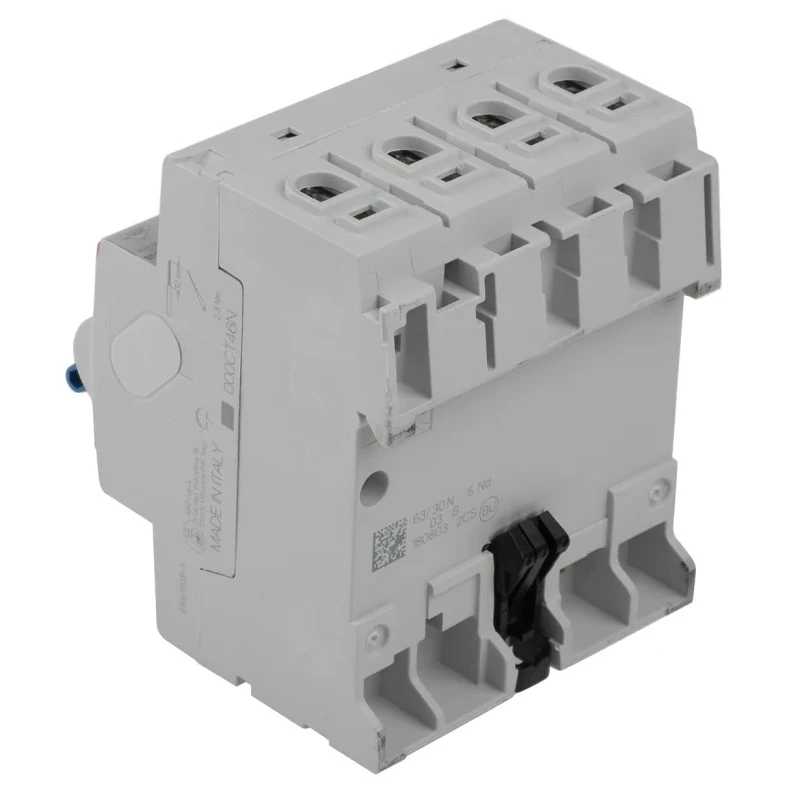

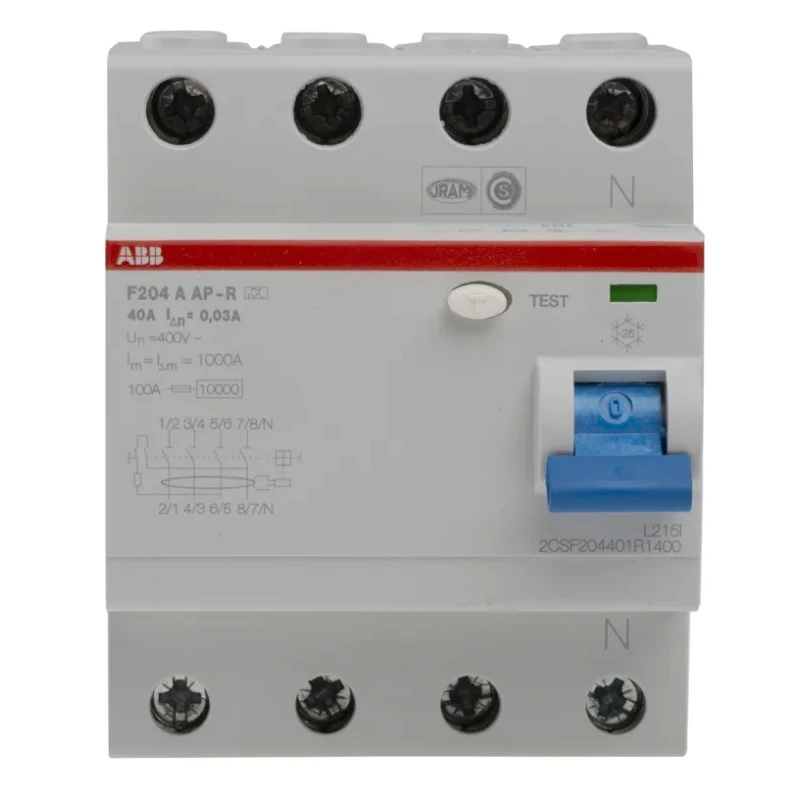

ABB F200 Series Residual Current Circuit Breaker, 40A, 4-Pole, 30 mA, Type A, 1 kA 2CSF204401R1400 F204 A-40/0,03 AP-R

Free Delivery in India | Lowest Global Shipping Charges

ABB F200 Series Residual Current Circuit Breaker, 40A, 4-Pole, 30 mA, Type A, 1 kA 2CSF204401R1400 F204 A-40/0,03 AP-R



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	F200
Brand	ABB
Height	85mm
Model	2CSF204401R1400 F204 A-40/0,03 AP-R
Depth	69mm
Width	70mm
Mount Type	DIN Rail
Current Rating	40A
Series	F200
Terminal type	Screw
Breaking Capacity	1kA
Number of Poles	4
Standards/Approvals	CE, IEC EN 61008, RoHS
Rated AC Voltage	277V ac
Tripping Characteristics	Type A
Tripping Mechanism	Electromagnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous
Earth Leakage Protection Type	AP-R

Key Features

Compact and durable design suitable for DIN rail mounting.
Provides Earth fault safety protection with trip sensitivity of 30mA.
Breaking capacity of 1kA ensures reliable fault interruption.
Equipped with a toggle switch reset actuator for easy operation.
Standards compliant with CE, IEC EN 61008, and RoHS for safety and quality assurance.
Screw terminal type for secure wiring connections.
Instantaneous break time facilitated by electromagnetic tripping mechanism.
Designed for industrial and commercial electrical safety applications.

Product Description

ABB 2CSF204401R1400 F204 A-40/0,03 AP-R Residual Current Circuit Breaker from the F200 series is a high-quality, reliable 4-pole device rated for 40A current. It is designed to protect electrical circuits by detecting earth leakage current and disconnecting the power supply to prevent hazards.

This device features a trip sensitivity of 30mA with Type A tripping characteristics, suitable for AC and pulsating DC residual currents. It operates at a rated AC voltage of 277V and has a breaking capacity of 1kA, ensuring robust fault clearance capabilities.

The breaker mounts easily on DIN rails, allowing seamless installation within electrical control panels. Its compact dimensions (Height 85mm, Width 70mm, Depth 69mm) and screw terminal connections make it suitable for various industrial and commercial applications requiring earth leakage protection.

Equipped with an electromagnetic tripping mechanism and instantaneous break time, it ensures rapid interruption on fault detection. The toggle switch reset actuator enhances ease of operation for maintenance and resetting after tripping events.

Certified with CE, IEC EN 61008, and RoHS, this breaker meets stringent safety and environmental standards. Manufactured in Italy, it delivers quality and compliance for electrical safety systems.

Compact and durable design suitable for DIN rail mounting. Provides Earth fault safety protection with trip sensitivity of 30mA. Breaking capacity of 1kA ensures reliable fault interruption. Equipped with a toggle switch reset actuator for easy operation.

Standards compliant with CE, IEC EN 61008, and RoHS for safety and quality assurance. Screw terminal type for secure wiring connections. Dimensions: Height 85mm, Width 70mm, Depth 69mm to fit standard electrical panels. Instantaneous break time facilitated by electromagnetic tripping mechanism.

Designed for industrial and commercial electrical safety applications. Rated for AC voltage of 277V ensuring compatibility with common AC systems.

This ABB Residual Current Circuit Breaker is ideal for industrial, manufacturing, commercial, and construction applications where reliable earth leakage protection is mandatory. It helps safeguard personnel and equipment by promptly disconnecting power during leakage faults.
