ABB FH200 Series Residual Current Circuit Breaker, 63A, 4-Pole, 30 mA, Type AC, 0.03 A 400V ac FH200

Free Delivery in India | Lowest Global Shipping Charges

ABB FH200 Series Residual Current Circuit Breaker, 63A, 4-Pole, 30 mA, Type AC, 0.03 A 400V ac FH200



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	RCCBs F200
Brand	ABB
Height	85mm
Model	FH200
Depth	85mm
Width	70mm
Mount Type	DIN Rail
Current Rating	63A
Series	FH200
Terminal type	Screw
Breaking Capacity	0.03A
Number of Poles	4
Standards/Approvals	CE
Rated AC Voltage	400V ac
Tripping Characteristics	Type AC
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous
Earth Leakage Protection Type	AC
4 pole DIN rail mount RCCB,63A 30mABrand	ABB
Type B 4 pole RCCB,60A 1.5kABrand	Merlin Gerin

Key Features

Equipped with a toggle switch to show contact position clearly.
Operates reliably within a temperature range of -25°C to +55°C.
IP2X rating provides protection against solid objects larger than 12.5mm.
Rated frequency of 50Hz ensures compatibility with common AC power supplies worldwide.
Instantaneous break time offers maximum protection for connected equipment.
Compact dimensions of 70mm width, 85mm height, and 85mm depth fit standard DIN rail mounts.
High breaking capacity ensuring robust safety performance.
Complies with CE standards for quality and safety assurance.

Product Description

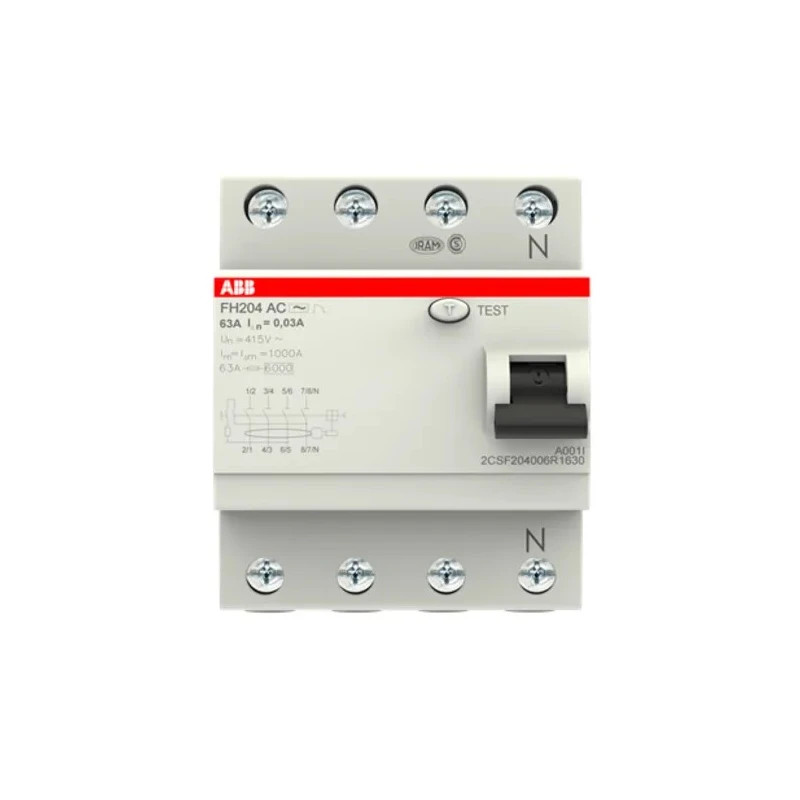

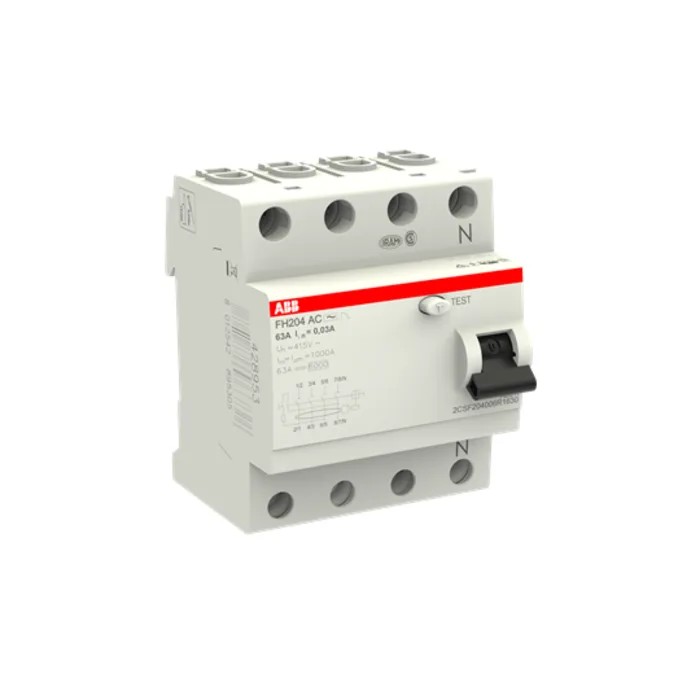

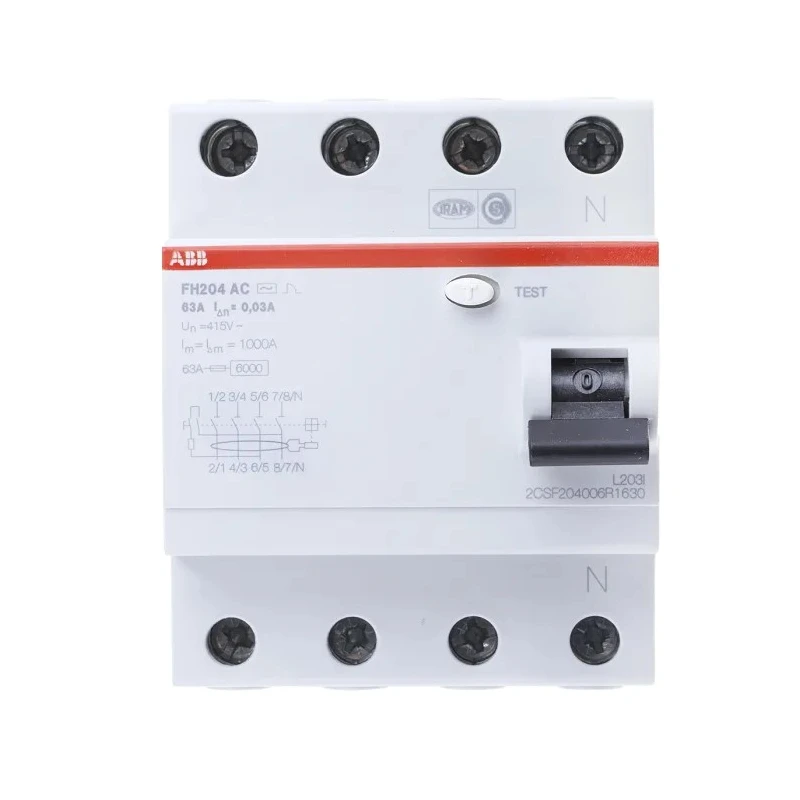

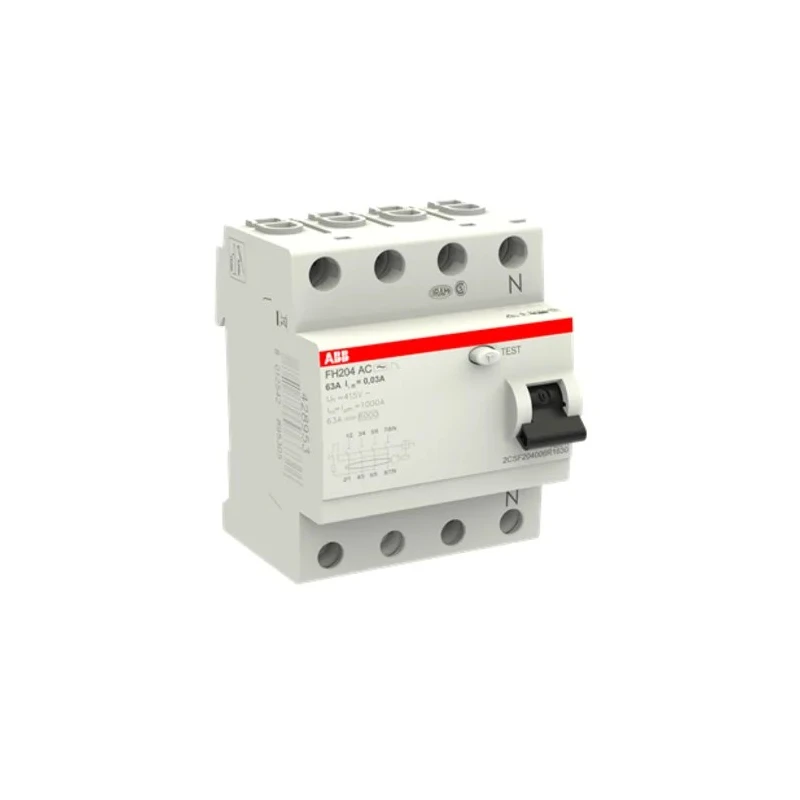

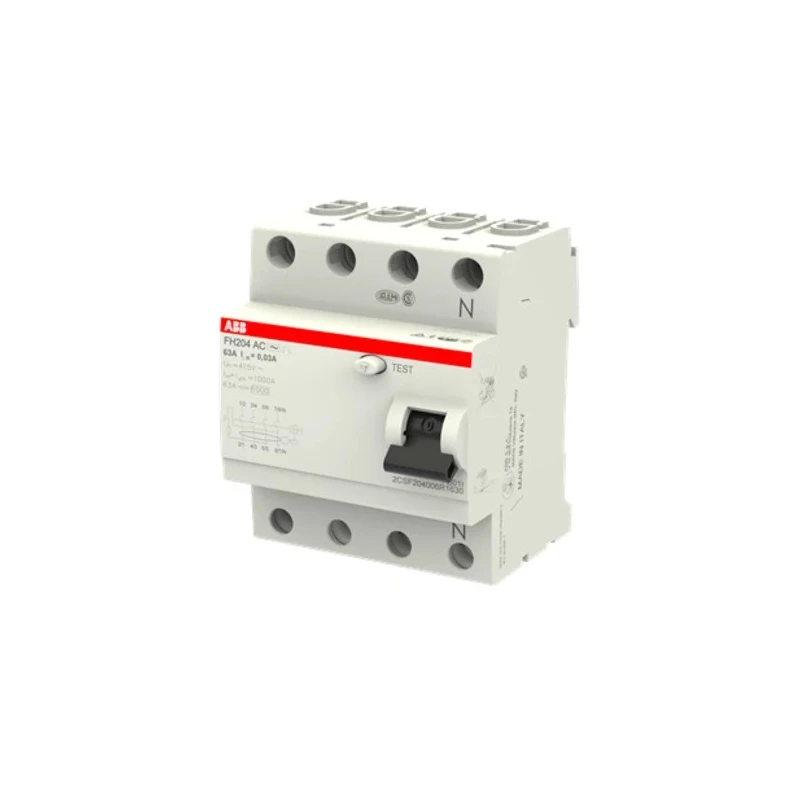

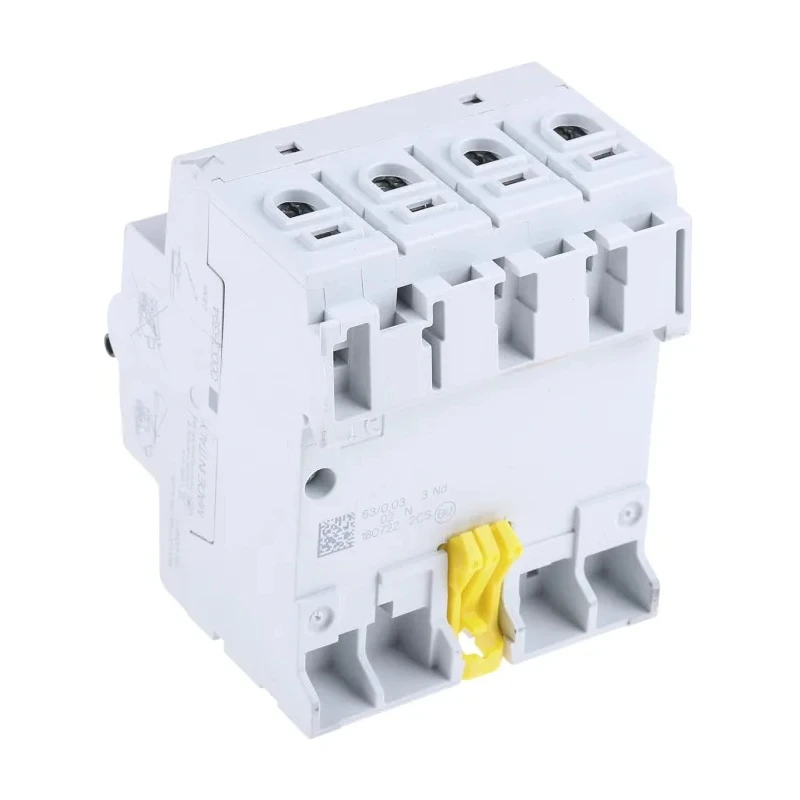

ABB FH200 Residual Current Circuit Breaker model FH200 is designed for protecting electrical circuits with a rated current of 63A and operating voltage of 400V AC. It features 4 poles and trip sensitivity of 30 mA with Type AC tripping characteristics, making it suitable for safeguarding homes, commercial installations, and industrial electrical networks against earth leakage faults.

Built to endure challenging environmental conditions, this RCCB operates effectively between temperatures of -25°C to +55°C and offers IP2X ingress protection, enhancing operational safety by preventing solid object intrusion larger than 12.5mm. Its instantaneous break time ensures rapid disconnection during fault events, minimizing risk to equipment and personnel.

The device mounts easily on standard DIN rails and is equipped with screw terminals for secure wiring. The toggle switch provides clear indication of contact position for easy operation and maintenance. With compact dimensions of 70mm (W) x 85mm (H) x 85mm (D) and a lightweight design at just 380 grams, it conveniently fits small electrical cabinets.

ABB FH200 complies with CE standards and is manufactured in Italy, ensuring quality and regulatory compliance. Its 50Hz rated frequency embraces global compatibility with standard AC electrical systems.

Toggle switch clearly shows contact position for user-friendly operation. Wide operating temperature range of -25°C to +55°C suits diverse environments. IP2X rated to block solid objects greater than 12.5mm enhancing safety.

Instantaneous response time delivers superior protection performance. Compact 4-pole DIN rail mount design facilitates easy installation. Screw terminal type ensures reliable and easy wiring connections. Conforms to CE standards guaranteeing product safety and quality.

Designed and manufactured in Italy under stringent quality controls.

This ABB FH200 Residual Current Circuit Breaker is ideal for use in electrical networks, engineering industries, medical equipment, lighting systems, and security installations where protection against earth faults and electrical shocks is critical. Its robust build and precise trip settings make it suitable for both residential and commercial applications.

Explore more high-quality circuit breakers and electrical safety devices from ABB in our catalog.
