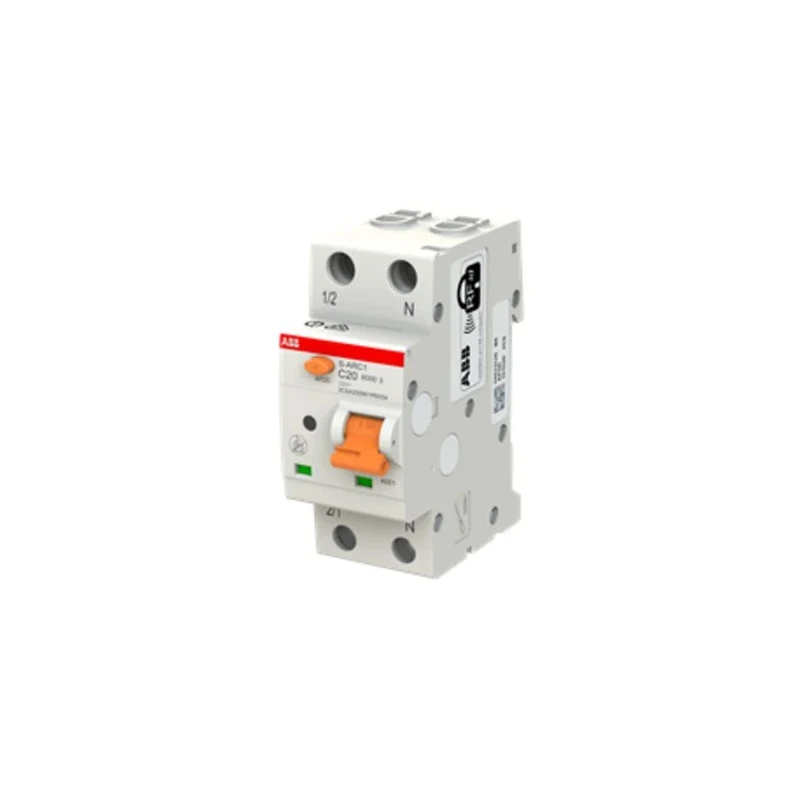

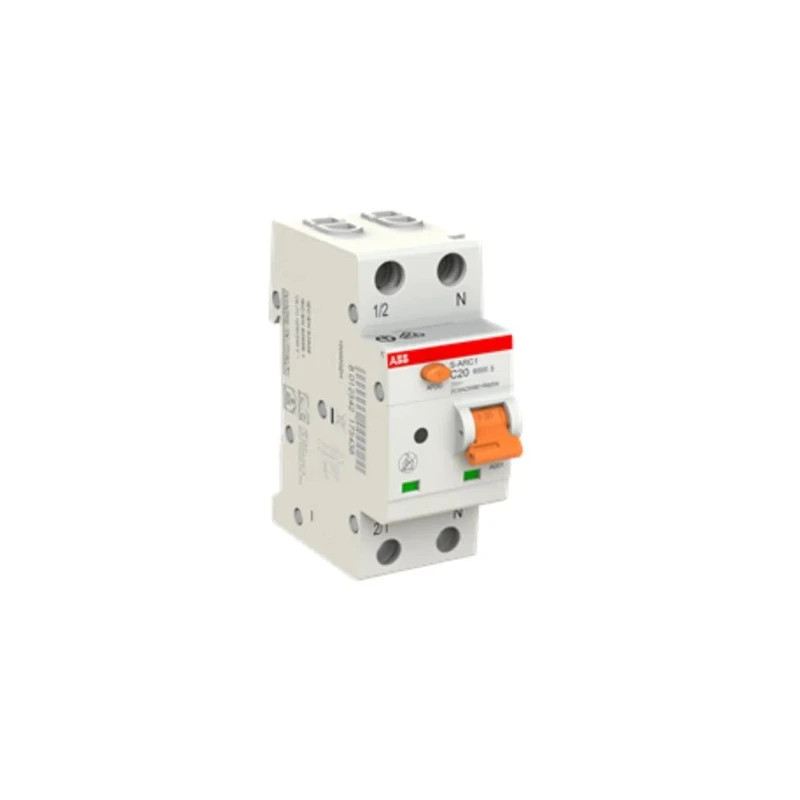

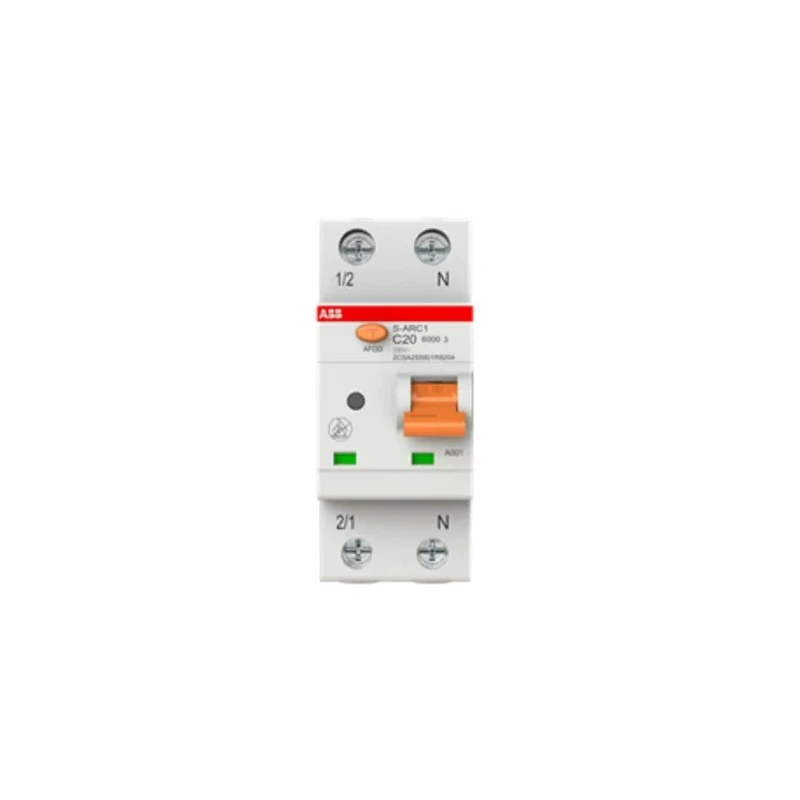

ABB S-ARC1 Miniature Circuit Breaker, 1-Pole, 20A, Type C, 240V AC, 6 kA Breaking Capacity ARC1

Free Delivery in India | Lowest Global Shipping Charges

ABB S-ARC1 Miniature Circuit Breaker, 1-Pole, 20A, Type C, 240V AC, 6 kA Breaking Capacity ARC1



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	S-ARC1
Brand	ABB
Height	85mm
Model	ARC1
Depth	69mm
IP Rating	IP20, IP40
Width	35mm
Mount Type	DIN Rail
Current Rating	20A
Series	S-ARC1
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	1
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	240V ac
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch

Key Features

Compact 35mm width allows space-efficient DIN rail mounting.
Operates at 240V AC rated voltage suitable for residential applications.
Thermal magnetic tripping mechanism for effective short circuit protection.
Screw terminal type ensures secure and reliable electrical connections.
6 kA breaking capacity ensures high performance fault clearing capability.
IP20 and IP40 rated for dust and touch protection.
Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.
Toggle switch reset actuator for simple manual operation.

Product Description

ABB ARC1 Miniature Circuit Breaker is a high-performance, 1-pole electrical protection device rated at 20A with Type C tripping characteristics designed for residential and light commercial installations operating at 240V AC. Manufactured in Italy, this MCB offers compact dimensions with a width of 35mm, height of 85mm, and depth of 69mm, making it ideal for space-efficient DIN rail mounting.

The device incorporates a thermal magnetic tripping mechanism, which provides effective protection against overloads and short circuits, particularly suitable for inductive loads such as motors and transformers. Its screw terminal design ensures secure and lasting electrical connections, while the IP20 and IP40 protection ratings safeguard the device from dust ingress and accidental contact.

Conforming to international IEC/EN 60898-1 and IEC/EN 60947-2 standards, this ABB S-ARC1 series MCB is capable of interrupting fault currents up to 6 kA, ensuring high safety and reliability for your electrical systems.

Applications include safeguarding residential electrical installations, commercial electrical panels, and various automation or control setups requiring dependable circuit protection. The Type C tripping curve is beneficial for environments with high inrush currents, reducing nuisance tripping while maintaining effective fault clearance.

Compact 35mm width enables efficient use of panel space. Highly reliable thermal magnetic short circuit and overload protection. Rated for 240V AC voltage providing broad compatibility. Screw terminals for firm and secure wiring connections.

6 kA breaking capacity for robust fault clearing performance. IP20, IP40 protection to resist dust and accidental contact. Toggle switch reset actuator facilitates easy manual reset. Compliance with IEC standards guarantees industrial-grade quality.

Discover more electrical protection devices and ABB products in the Miniature Circuit Breaker category on EnvMart for your industrial, commercial, or residential electrical needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 20A, making it suitable for various residential and light commercial applications.

It has a breaking capacity of 6 kA, ensuring effective fault clearing capability during electrical faults.

The dimensions are 35mm in width, 85mm in height, and 69mm in depth, allowing for efficient DIN rail mounting.

It utilizes a thermal magnetic tripping mechanism, which provides protection against overloads and short circuits.

The ABB S-ARC1 is rated for 240V AC, suitable for standard residential electrical systems.

It has IP20 and IP40 ratings, providing protection against dust ingress and accidental contact.

This model features screw terminals, ensuring secure and reliable electrical connections.

It has Type C tripping characteristics, which are beneficial for environments with high inrush currents, reducing nuisance tripping.

Yes, it complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring it meets international safety and performance requirements.

It is designed for DIN rail mounting, making it suitable for various panel setups.

This model is manufactured in Italy, ensuring adherence to high manufacturing standards.

It is suitable for safeguarding residential electrical installations, commercial electrical panels, and various automation setups requiring circuit protection.
