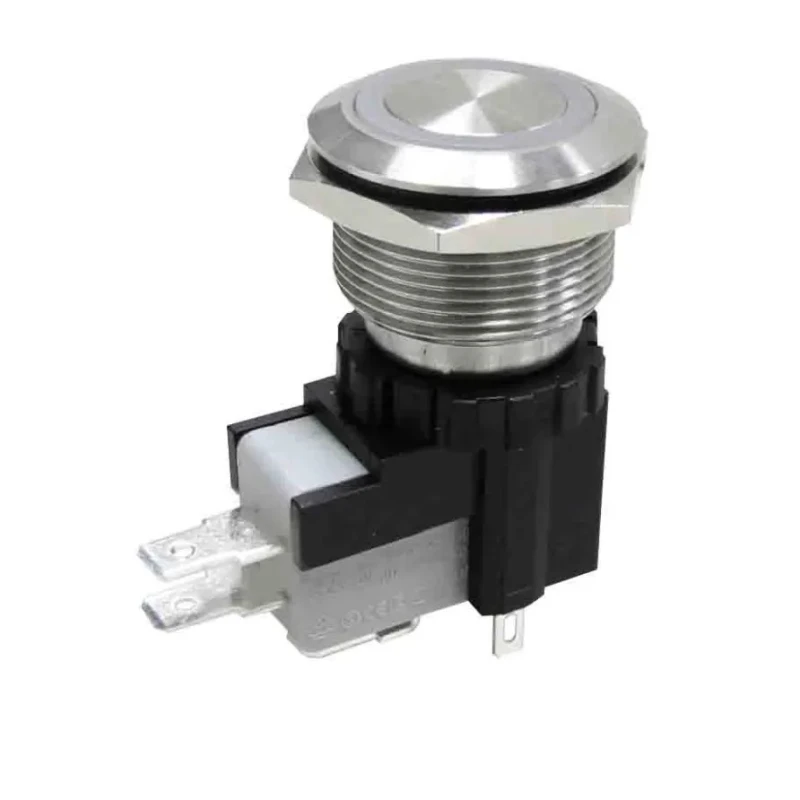

RS PRO Push Button Switch Momentary Panel Mount SPST IP67 250 V ac 175-8049

RS PRO 175-8049 Push Button Switch is a robust momentary switch designed for panel mounting with a precise 22.2 mm cutout size. Featuring a silver flat actuator, it offers reliable and intuitive control in various industrial settings. The single pole single throw (SPST) contact configuration supports electrical loads up to 250 V AC and current capacities of 16 to 26 amperes. Its quick connect terminal type ensures efficient wiring installation.

This push button switch benefits from an IP67 rating, providing excellent protection against dust ingress and water immersion, which makes it suitable for challenging environments including manufacturing floors and outdoor control panels. The operating temperature range of -25°C to 85°C allows use in cold storage or warm industrial areas without loss of performance.

Certified by multiple industry approvals such as cULus Recognized, EC15, EN15, and UL 94 V-0 and V-2 flame retardant standards, this switch assures compliance with safety and performance regulations. The design includes a replaceable micro-switch and bushing, facilitating easy maintenance and saving downtime.

Typical applications include industrial control instruments, medical equipment, security monitoring systems, vehicle peripherals, audio-visual setups, and energy storage devices. The high current capacity and durability make it ideal for demanding electronic and electrical systems.

The actuator is silver-colored with a flat style for easy operation. Switch operation is momentary, requiring continuous press to maintain contact. Designed for panel mounting with a quick connect terminal type. Rated for a contact AC voltage of 250 V with a contact current rating of 16 or 26 amperes.

The device is IP67 rated, ensuring protection against dust and water ingress. Operational temperature range spans from -25°C to 85°C for versatile environmental use. Complies with safety and quality standards including cULus Recognized, EC15, EN15, UL 94 V-0, and UL 94 V-2.

Constructed with replaceable micro-switch and bushing for convenient maintenance. Applications include industrial control instruments, medical equipment, security monitoring, vehicle peripherals, and energy storage equipment.

Manufactured in Taiwan, Province Of China, ensuring high product quality. Explore more Push Button Switches and electrical components in the RS PRO range at EnvMart to find the perfect fit for your industrial or commercial projects.
