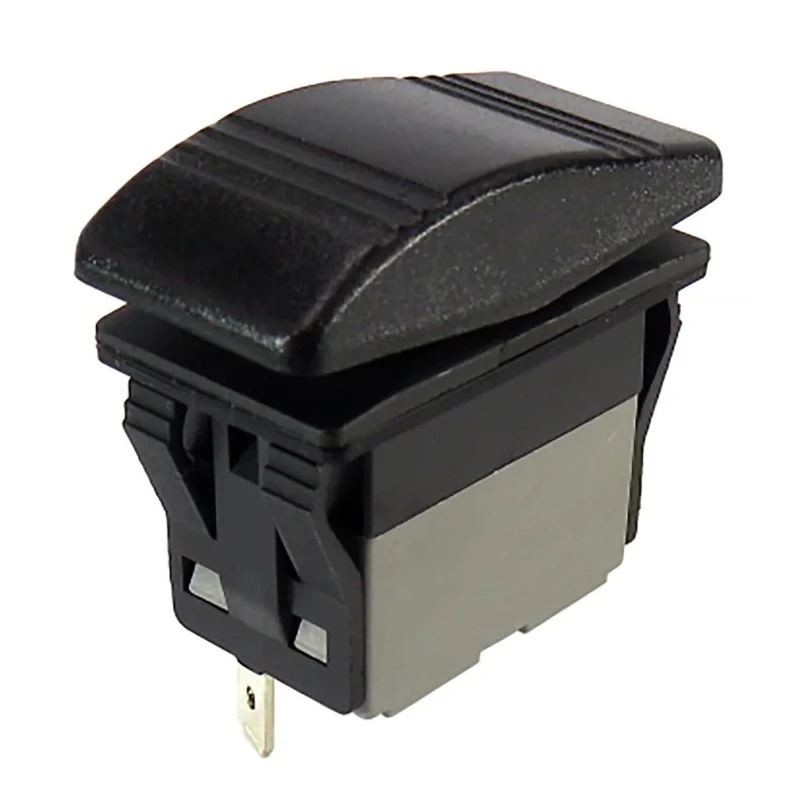

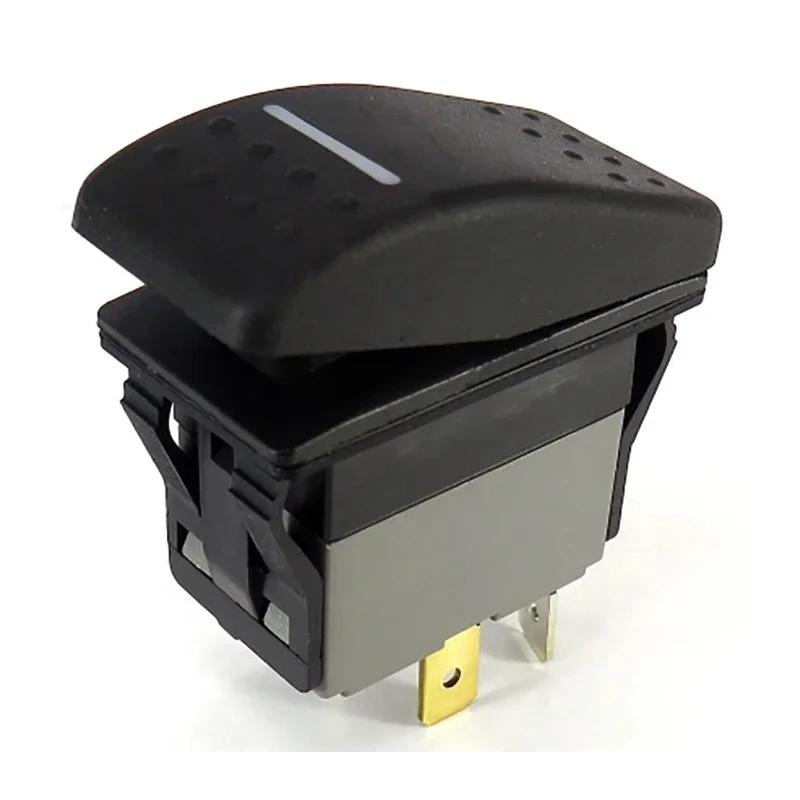

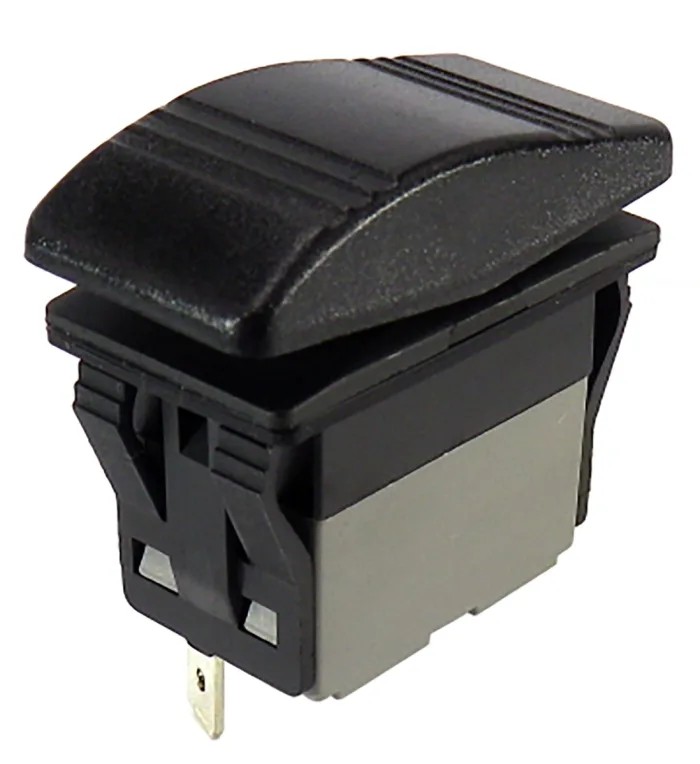

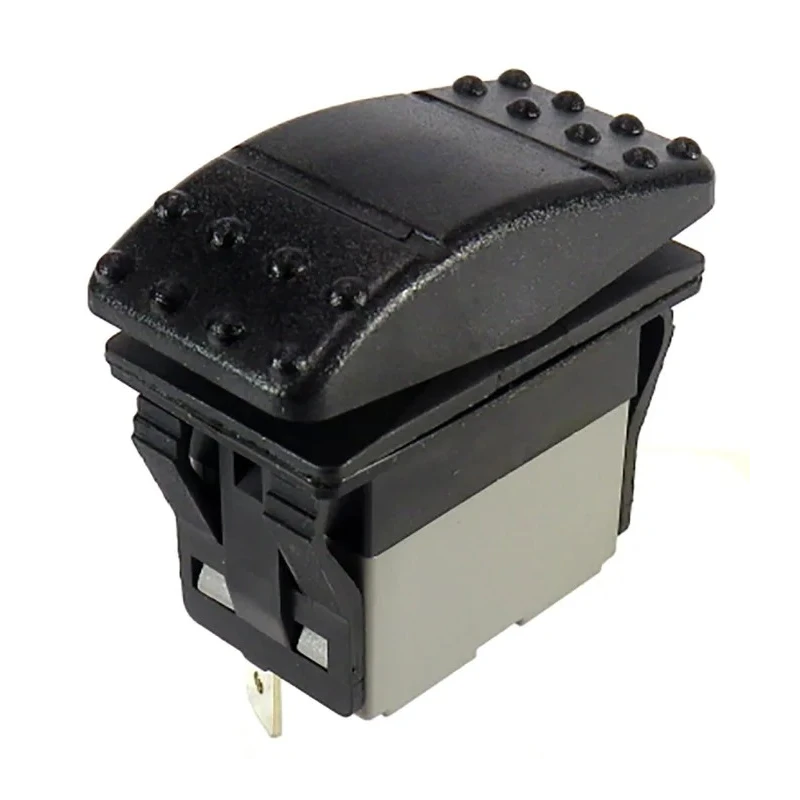

RS PRO Illuminated DPDT Rocker Switch On-Off-On Panel Mount Quick Connect Terminals Model 174-8352

RS PRO 174-8352 is an illuminated Double Pole Double Throw (DPDT) rocker switch designed for panel mounting with quick connect terminals. The switch features On-Off-On operation and a durable polyamide housing suitable for demanding industrial, electrical, and automation applications.

This rocker switch offers a panel cutout size of 21.1 x 37 mm, ensuring compatibility with standard mounting panels. It supports a contact current of 16 and 20 Amperes and can handle up to 250 volts AC and 30 volts DC, making it suitable for a variety of electrical control circuits.

The switch's illumination enhances user visibility in dim environments, providing clear indication of switch status. IP67 ingress protection guarantees reliable operation even in dusty or wet conditions. The actuator is black and rectangular, designed for ergonomic and precise control.

Equipped with a mechanical life expectancy of 30,000 cycles, this switch is built for longevity in industrial setups. It operates effectively within temperatures ranging from -20°C to 85°C, suitable for both indoor and outdoor installations.

Common applications include electrical panels, automation systems, machinery control, HVAC systems, and other industrial equipment requiring dependable switching functions with illuminated feedback.

Double Pole Double Throw (DPDT) contact configuration enables versatile switching functions. Illuminated design enhances visibility and operational status indication. Polyamide housing ensures durable use with high mechanical and thermal resistance.

Panel cutout size of 21.1 x 37 mm facilitates standard installation. Provides quick connect terminal type for fast and secure wiring. IP67 rating offers excellent protection against dust and water ingress. Supports contact current rated at 16 and 20 Amperes with 250 V AC and 30 V DC voltages.

Reliable mechanical life of up to 30,000 cycles for extended switch performance. Operates within wide temperature range from -20°C to 85°C. Rectangular black actuator with On-Off-On switch configuration enhances ergonomic control.
