Schurter Non-Resettable Axial Fuse, Fast Acting, 63mA, 125V AC/DC, Ceramic Body, 172321 Series 7010.6300.13

Free Delivery in India | Lowest Global Shipping Charges

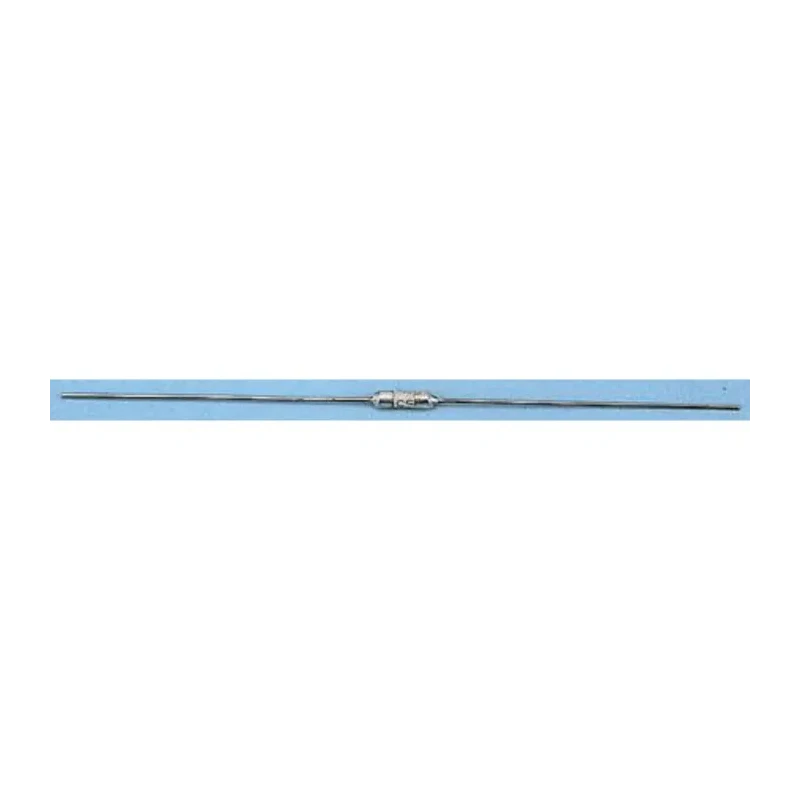

Schurter Non-Resettable Axial Fuse, Fast Acting, 63mA, 125V AC/DC, Ceramic Body, 172321 Series 7010.6300.13

Name: Schurter Non-Resettable Axial Fuse, Fast Acting, 63mA, 125V AC/DC, Ceramic Body, 172321 Series 7010.6300.13
Brand: Schurter
SKU: 398476
Price: 1.92 USD
Availability: InStock



Category Non-Resettable Fuse Brand Schurter Condition New

Specifications

Country of Origin	France
Voltage	125, 125V ac
Diameter	2.36mm
Brand	Schurter
Body Material	Ceramic
Height	8mm
Length	8mm
Current Rating	63mA
Series	172321
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
Lead Length	86mm
Breaking Capacity	300A
Standards/Approvals	RoHS
Lead Diameter	0.82mm
Fuse Characteristics	Fast Acting
Lead Orientation	Axial
Schurter Leaded PCB Mount Fuse, Axial 63mA, 125V ac/dcBrand	Schurter

Key Features

Designed for direct solder mounting on PCB with axial lead orientation.
Constructed with a ceramic tube and thermoplastic polyamide body for durability.
Fast-acting fuse type providing reliable circuit protection.
Compact dimensions with 8mm length and 2.36mm diameter.
High breaking capacity of 300A suitable for industrial and electronic applications.
Operating temperature range from -55°C to 85°C.
Compliant with RoHS standards ensuring environmentally safe materials.
Manufactured in France meeting quality and performance standards including NF C 93-435.

Product Description

Schurter 7010.6300.13 is a non-resettable axial fuse designed for effective circuit protection in electronic and electrical systems. It features a fast-acting characteristic with a rated current of 63mA and voltage rating of 125V AC and DC, suitable for a range of industrial and laboratory applications.

The fuse employs a robust ceramic body combined with a thermoplastic polyamide sleeve, ensuring high durability under operating temperatures from -55°C to 85°C. Its compact size with a length of 8mm and diameter of 2.36mm allows easy PCB mounting, especially in confined electronic assemblies.

Equipped with an axial lead orientation of 86mm lead length and 0.82mm lead diameter, the fuse is ideal for direct solder mounting on printed circuit boards. It provides a high breaking capacity of 300A, making it suitable for protection against overcurrent conditions in sensitive equipment in sectors such as electrical automation, manufacturing, and HVAC controls.

This product complies with RoHS directives and industry standards NF C 93-435, CCQ, GAM T1, and is LNZ listed, ensuring both safety and quality compliance. It is manufactured in France under the 172321 series by Schurter.

Designed for direct PCB mounting with axial leads. Fast-acting with high breaking capacity of 300A. Ceramic body with thermoplastic polyamide insulation. Compact 8mm length, 2.36mm diameter for space-saving design. Suitable for industrial, laboratory, electrical automation and manufacturing applications.

Operates reliably from -55°C to 85°C ambient temperature. RoHS compliant ensuring environmental safety. Manufactured in France adhering to international fuse standards.

This Schurter Non-Resettable Fuse is a reliable component for circuit protection needs in varied industrial and commercial electronic systems. Find more Schurter fuses and electrical protection devices in the EnvMart circuit breakers and fuse category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a rated current of 63mA and a voltage rating of 125V AC and DC.

It has a high breaking capacity of 300A, suitable for protecting sensitive equipment against overcurrent conditions.

The fuse has a length of 8mm and a diameter of 2.36mm, making it compact for easy PCB mounting.

It features a ceramic body with a thermoplastic polyamide sleeve, ensuring durability and reliability.

This fuse operates reliably within a temperature range of -55°C to 85°C.

It is designed with an axial lead orientation, featuring a lead length of 86mm and a lead diameter of 0.82mm for direct solder mounting on PCBs.

Yes, it is RoHS compliant, ensuring that it meets environmental safety standards.

This fuse is manufactured in France, adhering to quality and performance standards.

It is suitable for industrial, laboratory, electrical automation, and manufacturing applications.

It meets several standards including NF C 93-435, CCQ, and GAM T1, ensuring compliance with industry regulations.

It is a fast-acting, non-resettable axial fuse designed for effective circuit protection.

The high breaking capacity of 300A allows it to effectively protect circuits from overcurrent situations, which is critical in sensitive electronic applications.
