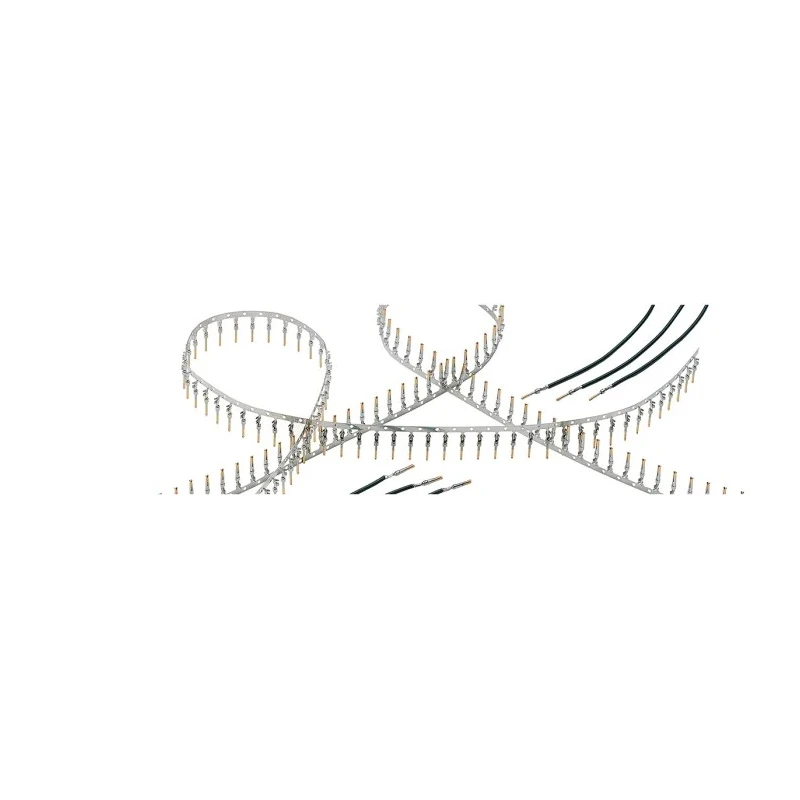

HARTING Female Crimp D-Sub Connector Contact Palladium over Nickel Pin 24 AWG 09670007268
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Current | 6.5A |
| Length | 14.1mm |
| Gender | Female |
| Contact Material | Brass |
| Series | D-Sub Standard |
| Termination Type | Crimp |
| Contact Type | Pin |
| Contact Plating | Palladium over Nickel |
| Minimum Wire Size mm² | 0.09mm² |
| Maximum Wire Size mm² | 0.25mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Made of brass with palladium over nickel plating for enhanced durability.
- Suitable for wire sizes ranging from 0.09mm² to 0.25mm² (28 AWG to 24 AWG).
- Maximum current rating of 6.5 amperes for reliable electrical performance.
- Contact type is pin with a length of 14.1mm for precise connection.
- Termination type is crimp for secure wire attachment.
- Maximum contact resistance capped at 10 milliohms.
- Designed as part of the D-Sub standard series for compatibility.
- Manufactured in Germany ensuring high-quality standards.
Product Description
HARTING 09670007268 Female Crimp D-Sub Connector Contact is a precision-engineered electrical connector contact designed for crimping onto wires with cross-sectional areas from 0.09mm² to 0.25mm², equivalent to 28 AWG to 24 AWG sizes. It features a brass contact base with a palladium over nickel plating, providing exceptional corrosion resistance and durability suitable for demanding industrial and electronic applications.
This D-Sub Standard Series contact has a pin-type contact element measuring 14.1mm in length, designed specifically for female crimp connections. The termination method is crimp, offering secure and reliable wire attachment to ensure stable connectivity in various setups.
The current rating of 6.5A makes this contact suitable for moderate electrical load scenarios. It presents a maximum contact resistance of 10 milliohms ensuring minimal electrical loss during operation. The product conforms to IEC 60 807 standards, reflecting excellent electrical and mechanical quality benchmarks.
Ideal for usage in electronics manufacturing, communications equipment, control panels, and other applications requiring robust D-Sub contacts. Suitable for assembly using dedicated crimping tools and compatible insertion and extraction tooling.
Made of brass and plated with palladium over nickel for corrosion resistance. Supports wire sizes between 28 AWG to 24 AWG (0.09mm² to 0.25mm²). Rated for currents up to 6.5 amperes. Maximum contact resistance is 10 milliohms for efficient conductivity.
Crimp termination ensures secure and reliable wire connections. Pin-type contact with 14.1mm length designed for female connections. Part of the D-Sub Standard Series for broad compatibility. Manufactured in Germany to stringent quality standards.
Explore a wide range of connector solutions and accessories on EnvMart for your industrial, electronic, and communication needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this D-Sub connector contact is 6.5 amperes, ensuring reliable electrical performance in moderate load scenarios.
It is suitable for wire sizes ranging from 0.09mm² to 0.25mm², which corresponds to 28 AWG to 24 AWG.
The pin contact length is 14.1mm, designed for precise connections in female crimp applications.
The contact is made of brass and features palladium over nickel plating for enhanced corrosion resistance and durability.
This model uses a crimp termination type, providing secure and reliable wire attachment.
The maximum contact resistance is capped at 10 milliohms, ensuring minimal electrical loss during operation.
Yes, it is part of the D-Sub Standard Series, which ensures broad compatibility with various applications.
This connector contact is manufactured in Germany, adhering to high-quality standards.
This connector features a pin-type contact designed specifically for female crimp connections.
It is ideal for use in electronics manufacturing, communications equipment, and control panels, among other applications requiring robust D-Sub contacts.
Assembly requires dedicated crimping tools and compatible insertion and extraction tooling for proper installation.
The palladium over nickel plating enhances the contact's corrosion resistance, making it suitable for demanding industrial and electronic applications.
