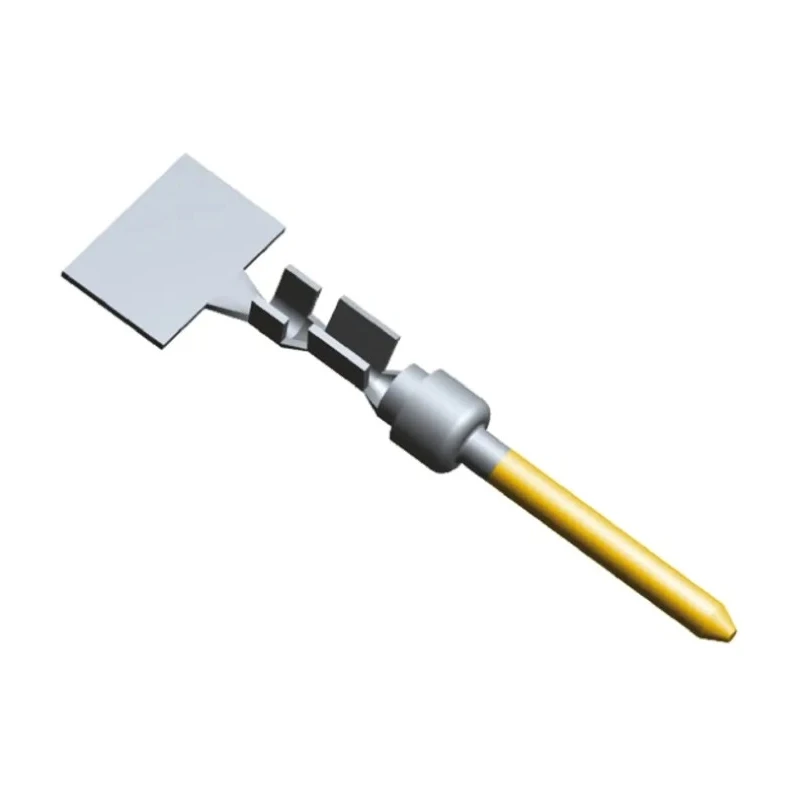

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact Gold over Nickel Signal 28 AWG 1658540-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 14.86mm |
| Gender | Male |
| Contact Material | Brass |
| Series | AMPLIMITE HDP-20 |
| Termination Type | Crimp |
| Contact Type | Signal |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 28AWG |
| Contact Size | 20 |
| • Pin diameter | 0.04 (1.02) |
Key Features
- Contact size 20DF suitable for AMPLIMITE D-Sub connector system.
- Gold plated over nickel for enhanced durability and conductivity.
- Compatible with wire sizes from 24 to 28 AWG (0.2 to 0.6 mm²).
- Crimp termination type ensures secure and fast connections.
- Contact length 14.86 mm with pin diameter of 1.02 mm (0.04 inch).
- Designed for signal transmission within electrical and electronic assemblies.
- Compatible with TE Connectivity crimp and insertion/extraction tools.
- Ideal for industrial, electronic manufacturing, and assembly applications.
Product Description
TE Connectivity 1658540-1 AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact is engineered for high-quality and reliable signal connections in electronic applications. This brass contact is plated with gold over nickel to provide excellent conductivity and corrosion resistance, ensuring long-term performance.
Designed specifically for the AMPLIMITE D-Sub connector system, this size 20DF contact features a length of 14.86 mm and a pin diameter of 1.02 mm (0.04 inch), optimized for signals within wire sizes ranging from 24 to 28 AWG (0.2 to 0.6 mm²). The crimp termination type facilitates fast, secure wire connections suitable for automated manufacturing.
These male contacts are suitable for use in electronic manufacturing, testing, instrumentation, communications equipment, and industrial environments where dependable electrical connections are required. TE Connectivity’s specialized tooling, including crimp tool 446-816 and insertion/extraction tool 446-822, supports precise assembly and maintenance.
Contact size 20DF designed for AMPLIMITE D-Sub connectors. Brass contact material with gold over nickel plating for durability. Supports signal wires from 24 to 28 AWG with crimp termination. 14.86 mm length with a pin diameter of 1.02 mm.
Compatible with dedicated TE crimp and extraction tools for efficient assembly. Suitable for industrial, lab, and communication electronic applications. Reliable signal transmission within electrical connectors. Easy integration into automated manufacturing processes.
This product falls under the D-Sub Connector Contact category and is a trusted solution by TE Connectivity for demanding electronics assembly. Explore more products in the connectors range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a contact size of 20DF, designed specifically for the AMPLIMITE D-Sub connector system.
The contact length is 14.86 mm, with a pin diameter of 1.02 mm (0.04 inch).
It supports wire sizes ranging from 24 to 28 AWG (0.2 to 0.6 mm²).
This model utilizes a crimp termination type, ensuring secure and fast connections.
The contact is made of brass and is plated with gold over nickel for enhanced conductivity and corrosion resistance.
It is compatible with TE Connectivity crimp and insertion/extraction tools, specifically crimp tool 446-816 and insertion/extraction tool 446-822.
This unit is suitable for use in electronic manufacturing, testing, instrumentation, communications equipment, and industrial environments.
It is designed for signal transmission within electrical and electronic assemblies.
The country of origin for this product is India.
This model belongs to the AMPLIMITE HDP-20 series.
This connector contact is male gendered.
The gold over nickel plating enhances durability and conductivity, ensuring long-term performance in electrical connections.
