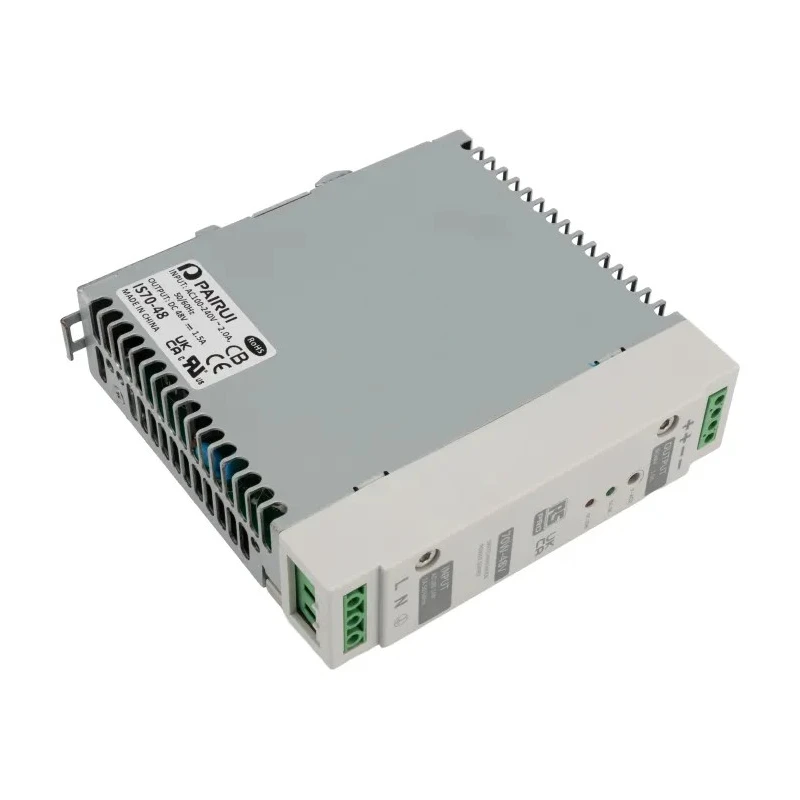

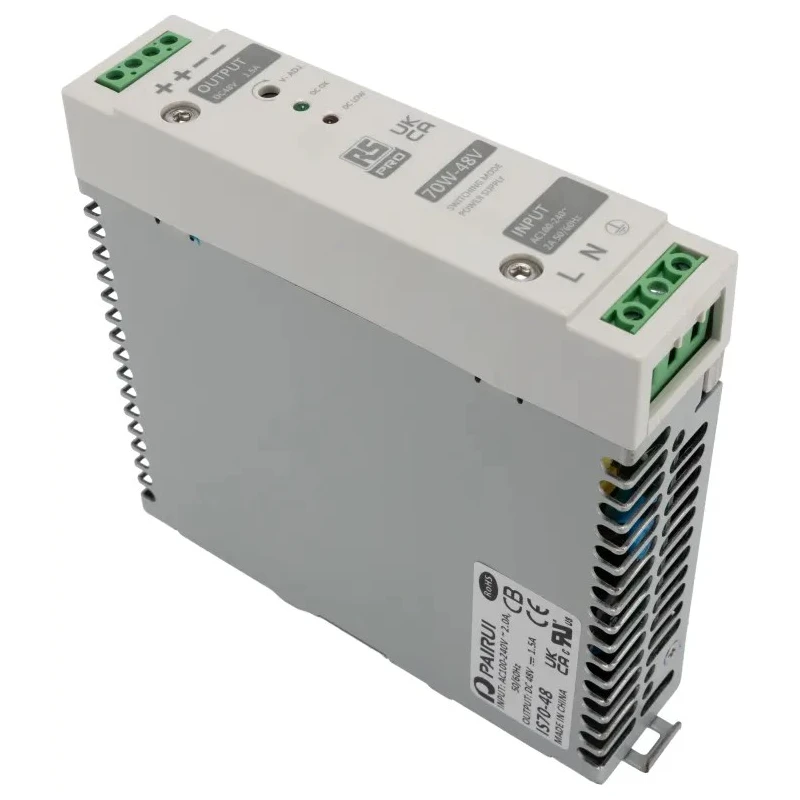

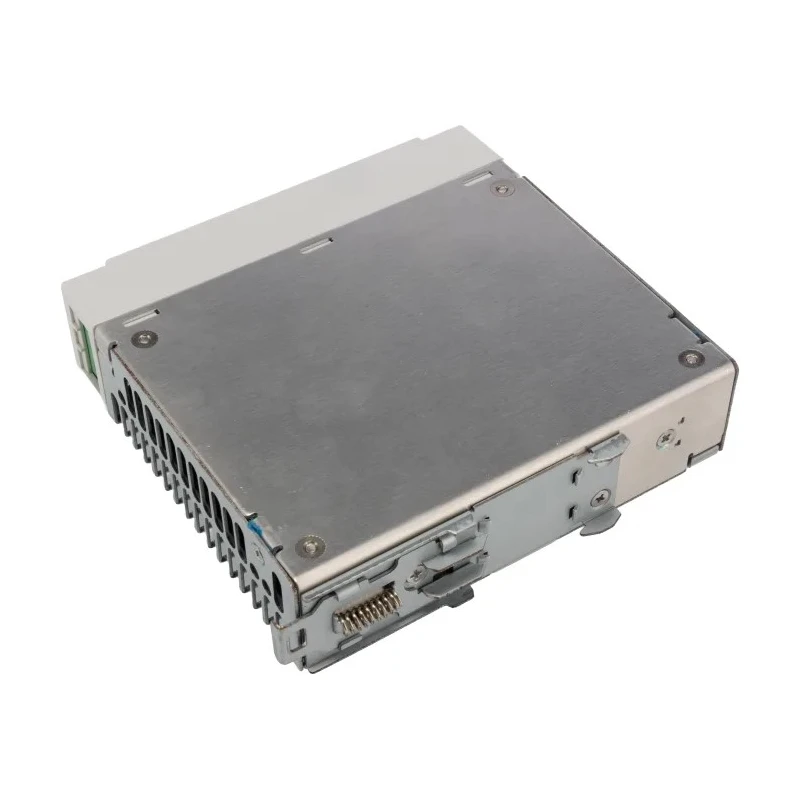

RS PRO Switched Mode DIN Rail Power Supply 264V AC Input 55V DC Output 1.5A 70W 136-8316
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Power | 70W |
| Height | 130mm |
| Model | 136-8316 |
| Depth | 125mm |
| Width | 33mm |
| Output Current | 1.5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | Medical Approval, Energy Efficiency Level VI, Energy Efficiency Level V |
| Maximum Output Voltage | 55V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- The power supply features a compact 35mm DIN rail mounting for efficient space-saving installation.
- Supports universal single-phase AC input voltage ranging from 85V to 264V AC.
- Equipped with LED indicators for DC power ON and low DC voltage status.
- Includes short circuit, over voltage, over current, and over temperature protection for enhanced safety.
- Operates efficiently from -25°C to 70°C ambient temperatures with free air convection cooling.
- Manufactured with medical approval and conforms to Energy Efficiency Level V and VI standards.
- Ideal for industrial control, factory automation, and transportation system power requirements.
- Constructed for high performance and reliability with a full load burn-in test at 100% capacity.
Product Description
RS PRO 136-8316 is a high-performance switched mode DIN rail power supply offering a compact 35mm DIN rail mounting design for convenient installation in industrial environments. This power supply accepts a universal single-phase AC input voltage from 85V to 264V AC and provides a stable 55V DC output at 1.5A current, delivering a total power output of 70W. It is engineered for applications requiring space-saving, reliable power conversion from AC mains to DC power.
The device incorporates key safety features including short circuit, over voltage, over current, and over temperature protections, ensuring robust operation in demanding industrial settings. Cooling is achieved through free air convection, eliminating the need for fans and reducing maintenance needs. LED indicators provide clear visual status for DC power and low voltage alerts, facilitating easy monitoring.
RS PRO 136-8316 complies with medical approval standards and energy efficiency levels V and VI, reflecting its performance and eco-friendly design. This power supply is suitable for powering DC-operated equipment in various sectors such as factory automation, process control, traffic, and transportation systems.
The DIN rail mounting enables quick and secure assembly alongside other control devices like circuit breakers and PLCs, enabling compact and modular industrial control panels. Its rugged construction ensures reliability across a wide operating temperature range from -25°C to 70°C.
Compact 35mm DIN rail mounting package for space efficiency. Universal AC input voltage range from 85V to 264V single phase. High reliability with full load 100% burn-in test. LED indicators for DC power ON and low voltage warning.
Comprehensive protections: short circuit, over voltage, over current, over temperature. Fanless cooling by free air convection reduces maintenance. Suitable for industrial, process control, automation, and transportation applications.
Conforms to medical and stringent energy efficiency standards V and VI.
Package contents include the RS PRO Switched Mode DIN Rail Power Supply model 136-8316 with installation and safety instructions. This power supply meets the demands of modern industrial applications requiring efficient DC power conversion from AC mains. Explore similar high-quality power solutions in the Electronics & Electricals category at EnvMart for all your industrial and automation power needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 55V DC and an output current of 1.5A, delivering a total power output of 70W.
The dimensions of this unit are 130mm in height, 125mm in depth, and 33mm in width.
It includes short circuit, over voltage, over current, and over temperature protections to ensure robust operation.
This power supply operates efficiently within a temperature range of -25°C to 70°C.
Cooling is achieved through free air convection, eliminating the need for fans and reducing maintenance requirements.
It features a compact 35mm DIN rail mounting design for efficient space-saving installation.
It conforms to medical approval standards and meets Energy Efficiency Levels V and VI.
It is ideal for applications in industrial control, factory automation, and transportation systems.
This model has a single output.
The country of origin for this power supply is China.
