MikroElektronika Communication & Wireless Development Kit with VO2630 Optocoupler for MikroBus GPIO Interface MIKROE-1196

MikroElektronika MIKROE-1196 Communication & Wireless Development Kit is a specialized optocoupler development kit designed for the mikroBUS platform. It incorporates two Vishay VO2630 high-speed dual optocouplers operating at 10 MBd each, providing galvanic isolation essential for sensitive signal interfacing in embedded and wireless communication projects.

The kit offers four input lines interfacing through the mikroBUS socket using a GPIO interface and supports either 3.3 V (default) or 5 V power supply from the mikroBUS socket, making it versatile for various microcontroller and development environments.

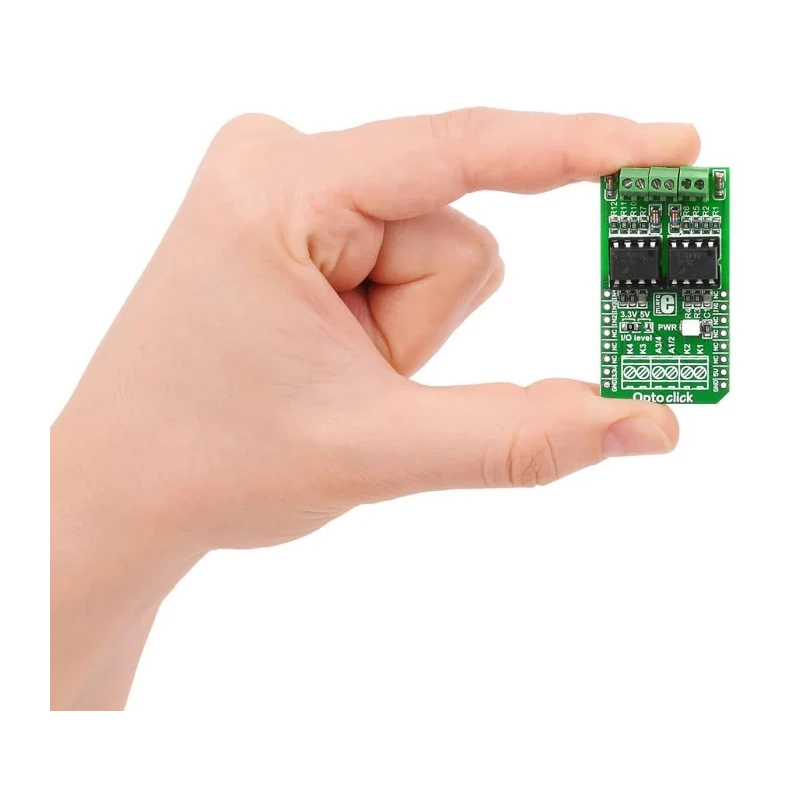

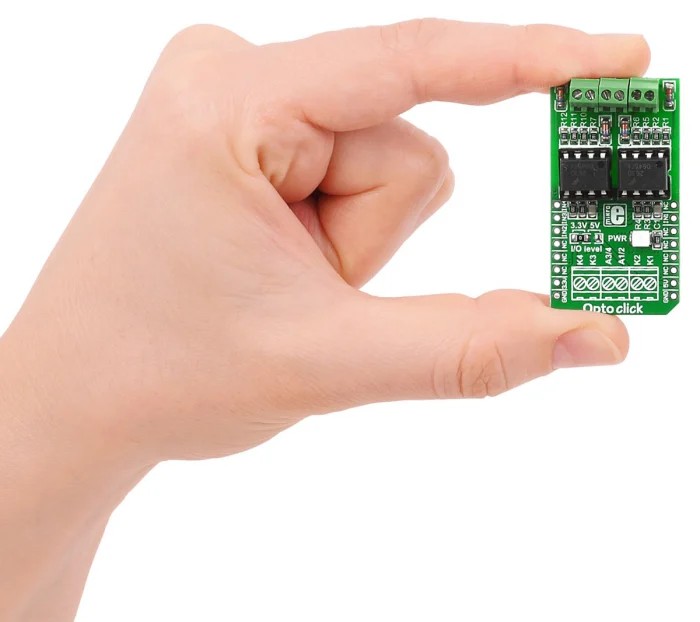

Its compact dimensions of 57.15 x 25.4 mm allow integration into tight spaces in development setups or embedded systems. The low input current design ensures efficient power usage, supporting prolonged device operation without excessive energy demands.

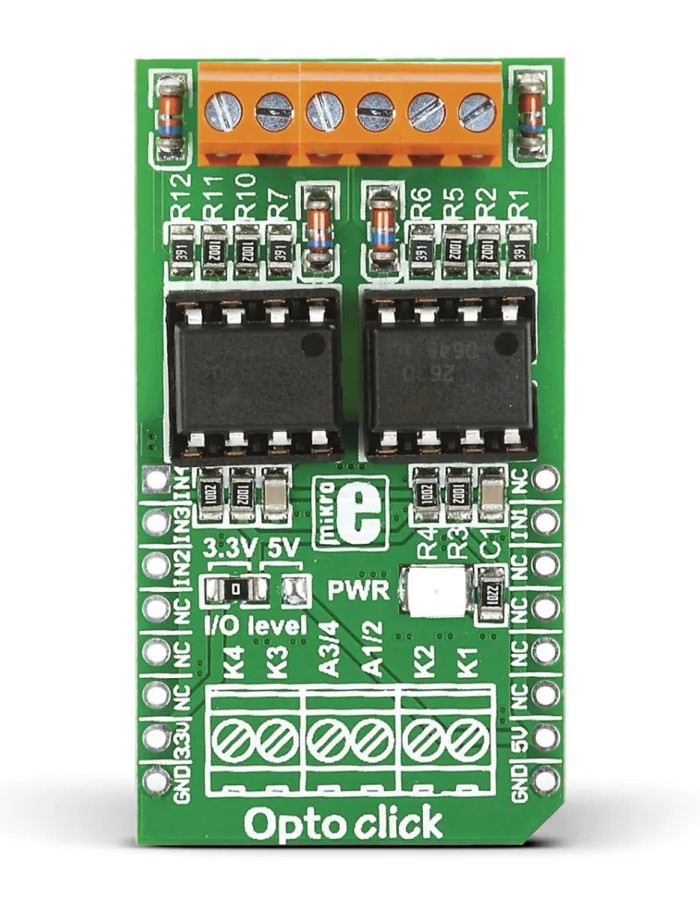

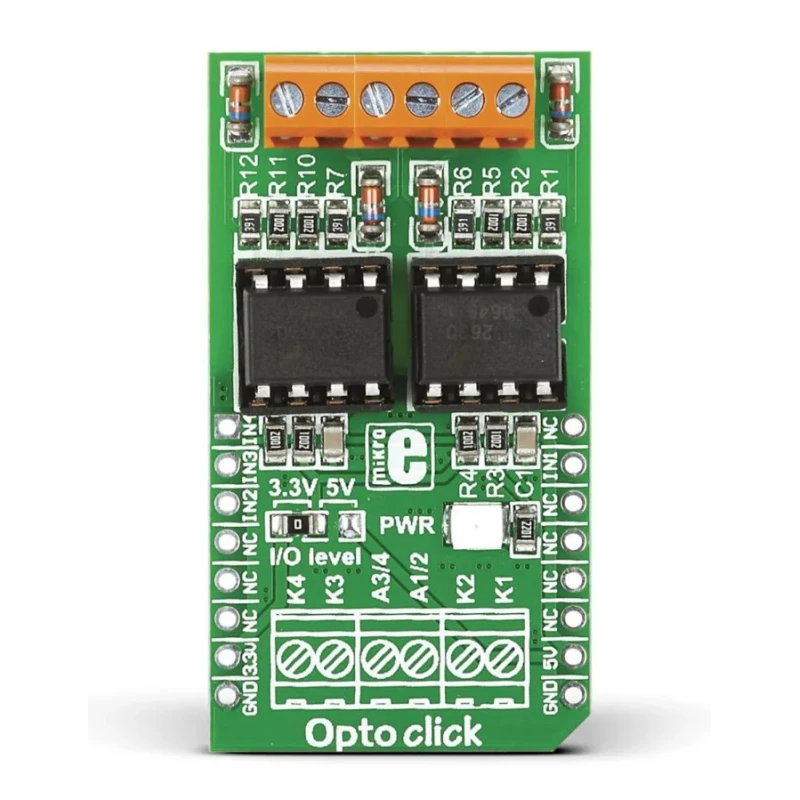

One of the key technical strengths is the high common mode rejection of 1000 V/μs, enabling reliable operation in electrically noisy industrial, laboratory, and communication environments. The VO2630 optocouplers are mounted on DIP 8-pin sockets which allow for easy replacement or upgrades, improving the development kit's maintainability.

The development kit complies with RoHS standards, affirming its environmental safety and regulatory adherence.

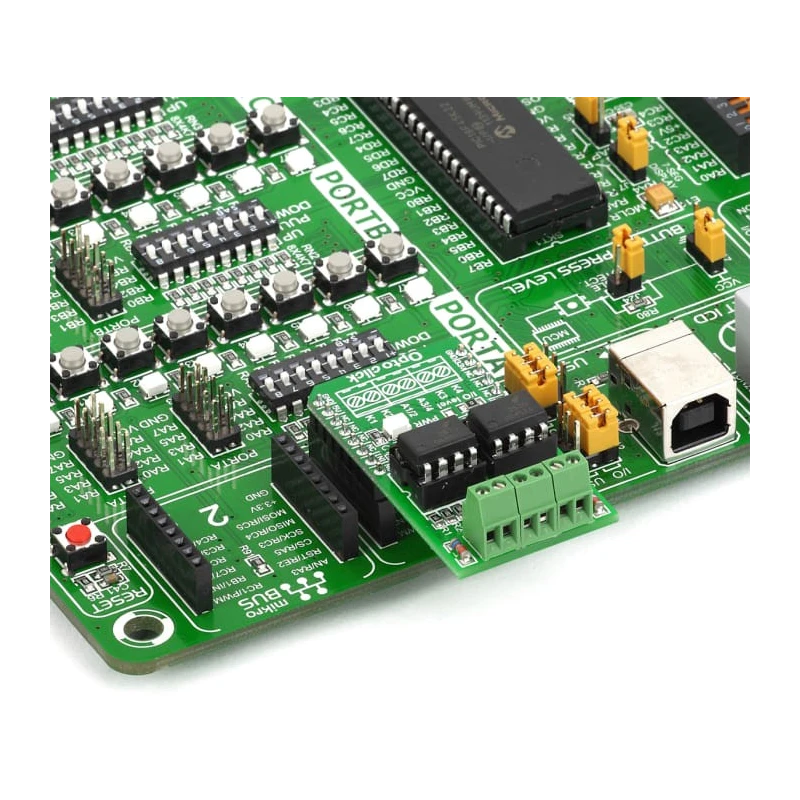

MikroElektronika provides a broad range of mikroBUS click boards to enhance development flexibility, supporting microcontroller and single-board computer platforms such as Raspberry Pi, Arduino, and BeagleBone. This VO2630 Development Kit is suitable for applications including industrial automation, communication interface prototyping, and wireless device development.

Features two Vishay VO2630 10 MBd high speed dual optocouplers enabling galvanic isolation. Provides four input lines interfacing through mikroBUS socket with GPIO interface. Supports 3.3 V or 5 V power supply from mikroBUS for broad compatibility.

Compact size of 57.15 x 25.4 mm suitable for tight space integration. Low input current for efficient power consumption. High common mode rejection of 1000 V/μs for noise immunity. Easily replaceable optocouplers on DIP 8-pin sockets for maintenance.

RoHS compliant for environmental and safety standards.
