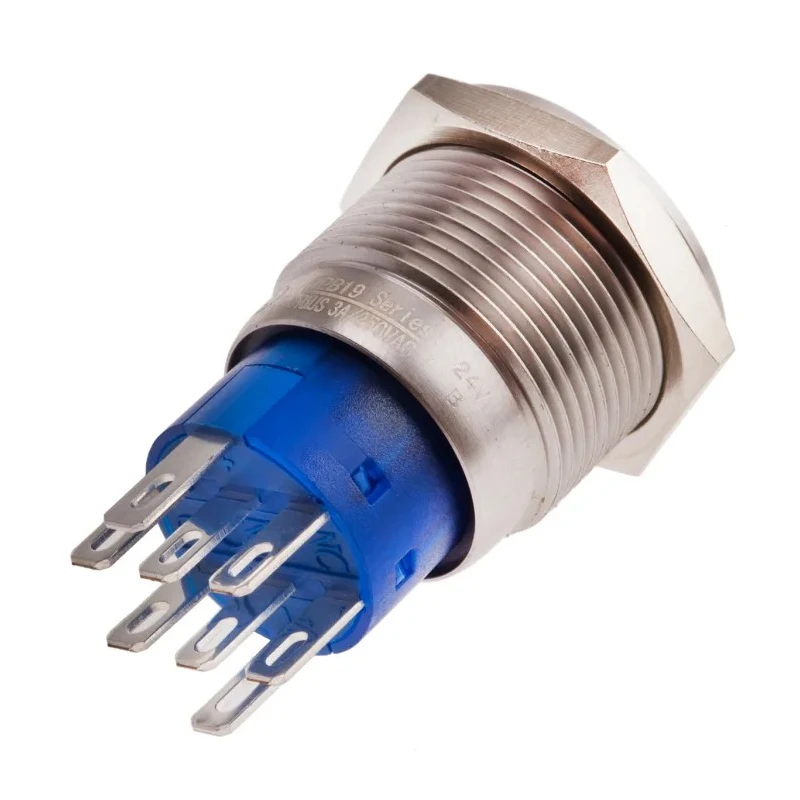

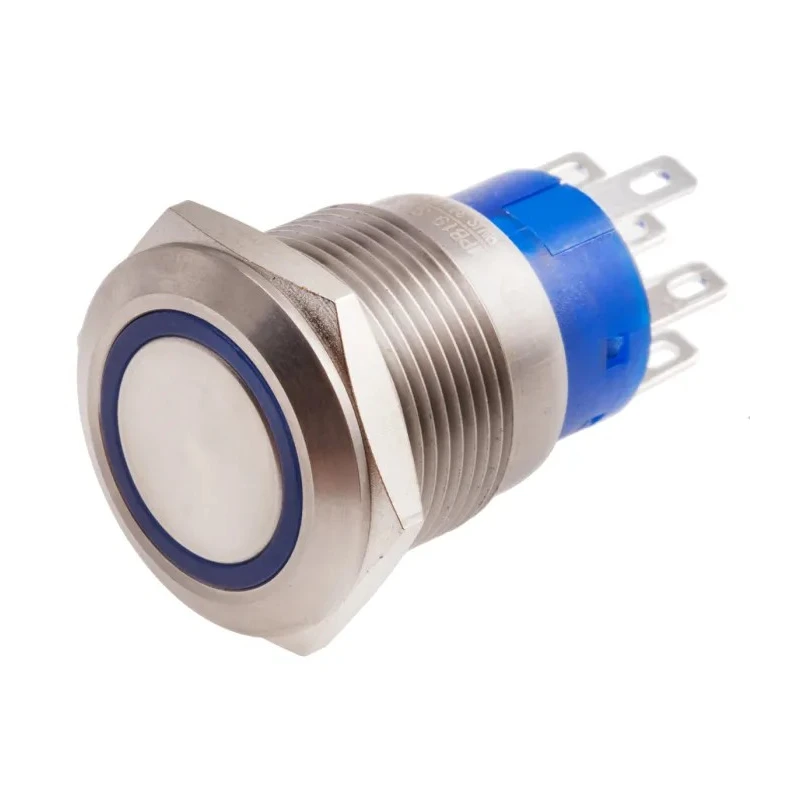

RS PRO Illuminated Momentary Push Button Switch Panel Mount 19.2 mm Cutout DPDT Blue LED IP67 250 V 5A 111-3775
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 111-3775 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | 2 NO/2 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Solder Pin |
| Standards/Approvals | cULus Recognized E 187490, IK10 |
| LED Colour | Blue |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch operates momentarily and features a robust DPDT contact configuration.
- It has a panel mounting style suitable for restricted spaces with a short design.
- Silver plated copper contacts ensure reliable electrical connections.
- The device is IP67 rated, making it dust-tight and water-resistant for harsh environments.
- Rated for 250 V AC and DC contact voltage with a 5A contact current capacity.
- Designed for a temperature range of -20°C to 55°C for varied operating conditions.
- Equipped with a round silver actuator and blue illuminated LED for visibility.
- Certified with cULus Recognized E 187490 and IK10 standards for safety and durability.
Product Description
RS PRO 111-3775 Illuminated Momentary Push Button Switch is a highly durable and corrosion-resistant panel mount switch designed for industrial and commercial applications. It features a 19.2 mm panel cutout suitable for mounting in space-restricted environments. The switch operates in a momentary mode with a DPDT (Double Pole Double Throw) contact configuration, facilitating versatile circuit control. The silver plated copper contacts deliver a firm and reliable electrical connection, enhancing switching performance.
This switch is illuminated with a blue LED, enhancing operator visibility in low-light conditions. The actuator style is round and silver colored, complementing the stainless-steel construction which offers increased robustness and corrosion resistance.
With an IP67 rating, this device is fully dust-tight and protected against water immersion, making it ideal for use in harsh environments such as medical equipment, industrial control systems, and communication devices. The switch supports contact voltages up to 250 V AC and DC, with a contact current rating of 5A, suitable for a broad range of electrical control applications.
Operating temperature ranges between -20°C and 55°C add to the switch's versatility in various climate conditions. It complies with strict safety and durability standards, being cULus Recognized and rated IK10 for impact resistance.
The compact and short design allows for integration in panels where space is limited while maintaining robust functionality. This RS PRO switch is a premium component trusted by engineers worldwide for its quality, reliability, and performance in demanding industrial and electronic control contexts.
The switch operates momentarily with DPDT configuration. Blue LED illumination for enhanced visibility. Stainless steel construction for corrosion resistance. IP67 rated for dust and water resistance. Suitable for medical, industrial, and communication equipment.
Silver plated copper contacts ensure firm connection. Rated for 250 V AC/DC and 5A contact current. Compact 19.2 mm panel cutout size. Operating temperature range: -20°C to 55°C. Complies with cULus and IK10 standards. Explore the RS PRO range at EnvMart for other high-quality Push Button Switch solutions tailored to industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a DPDT (Double Pole Double Throw) contact configuration, which allows for versatile circuit control.
This model is rated IP67, making it fully dust-tight and protected against water immersion, suitable for harsh environments.
The maximum operating temperature for this switch is 55°C, allowing it to function effectively in various climate conditions.
The required panel cutout size for installation is 19.2 mm, making it suitable for space-restricted environments.
This switch is equipped with solder pin terminals, facilitating secure electrical connections during installation.
The switch has a rated contact current of 5A, which is suitable for a variety of electrical control applications.
It supports contact voltages of up to 250 V AC and DC, making it versatile for different electrical systems.
The actuator style is round and silver in color, designed for both functionality and aesthetic appeal.
Yes, due to its IP67 rating, it is suitable for outdoor use and can withstand exposure to dust and water.
This switch is cULus Recognized and rated IK10 for impact resistance, ensuring it meets strict safety and durability standards.
The minimum operating temperature for this model is -20°C, allowing it to operate in colder environments.
This switch is suitable for use in medical equipment, industrial control systems, and communication devices due to its robust design and IP67 rating.
