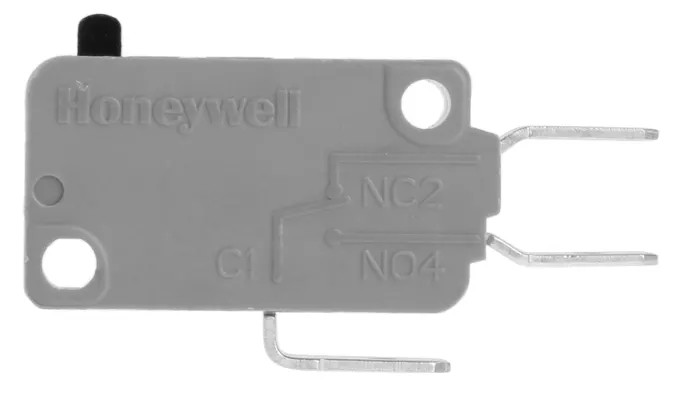

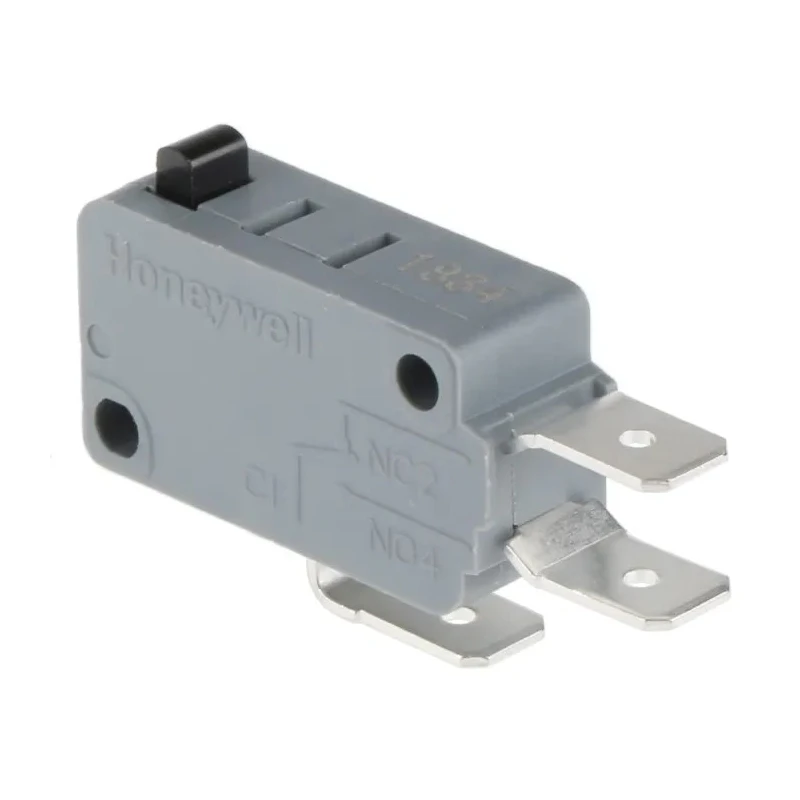

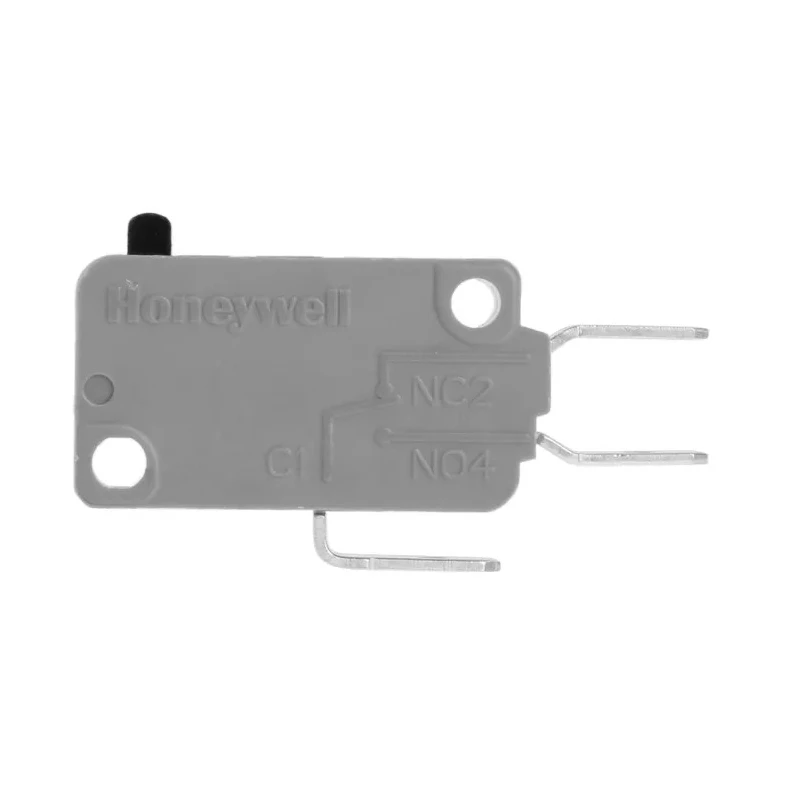

Honeywell Technologies Plunger Micro Switch, Tab Terminal, 16A, 250 V AC, SPDT V15T16-CZ100
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell |
| Length | 27.8mm |
| Model | V15T16-CZ100 |
| Depth | 10.3mm |
| Width | 10.3mm |
| Housing Material | Polybutylene Terephthalate Thermoplastic |
| Series | V15 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Actuator Type | Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | Tab |
| Standards/Approvals | cUL, ENEC, RoHS, CQC, UL |
| Switch Contact Current | 16A |
| Operating Force | 0.98N |
| Mechanical Life | 5000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Standard |
| Honeywell Plunger Microswitch, 16 A @ 250 V ac, SPDTBrand | Honeywell |
| Crouzet Button Micro Switch, Tab Terminal, 16A, 250 V ac, SPDT, IP40Brand | Crouzet |
Key Features
- This micro switch utilizes a plunger actuator for sensitive and reliable control.
- It supports a maximum switching current of 16 amperes for moderate loads.
- The switch casing is made of durable polybutylene terephthalate thermoplastic ensuring thermal resilience.
- Operating temperature range spans from -25°C to 125°C for versatile industrial applications.
- Its mechanical life is rated for 5,000,000 operations, promoting longevity and reliability.
- Tab-style quick-connect terminals enable fast field wiring and maintenance.
- The switch is compliant with standards including cUL, ENEC, RoHS, CQC, and UL certifications.
- Ideal for use in automated conveyors, position detection, control panels, and user interfaces in industrial equipment.
Product Description
Honeywell Technologies V15T16-CZ100 plunger micro switch is a compact electromechanical device designed for reliable single-pole double-throw (SPDT) switching in control and detection systems. It features a tab terminal and supports 16 amperes at 250 volts AC, making it well-suited for moderate current load applications.
Constructed with a polybutylene terephthalate thermoplastic housing, it offers excellent thermal resilience and electrical insulation, ensuring protection of internal contacts. The switch operates over a temperature range of -25°C to 125°C, maintaining performance in harsh industrial environments.

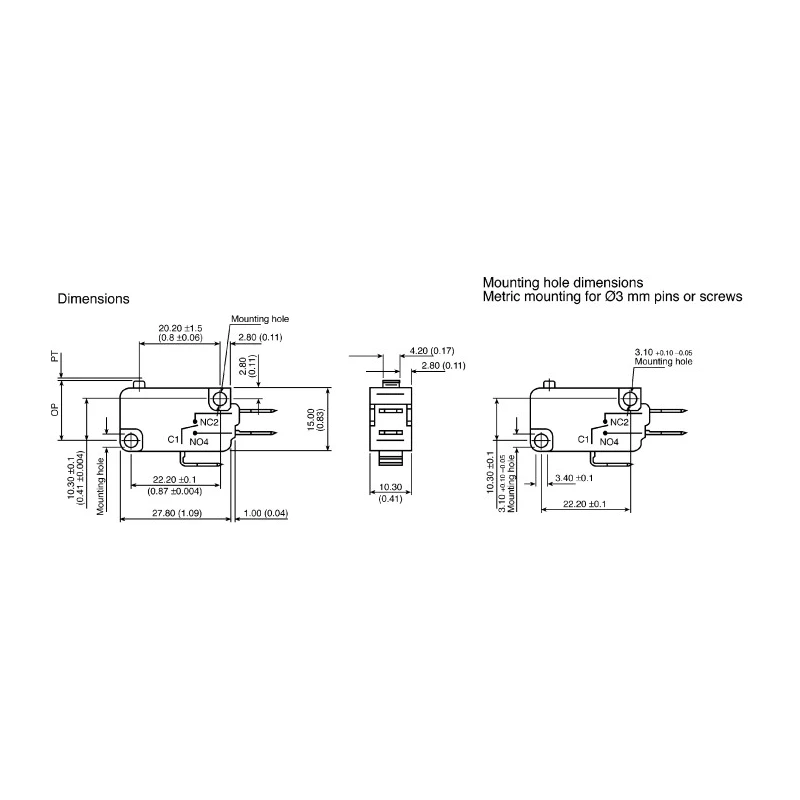

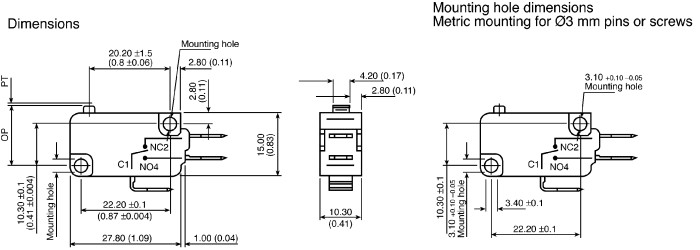

Its mechanical life of 5,000,000 operations reduces maintenance frequency, and the 0.98 newton operating force enables sensitive actuation. The compact dimensions of 27.8mm length, 10.3mm width, and 10.3mm depth allow integration into space-constrained assemblies.
The switch includes quick-connect tab terminals for easy and rapid wiring during assembly or maintenance tasks. Certified with cUL, ENEC, RoHS, CQC, and UL approvals, it complies with multiple regional standards ensuring safety and quality.
Applications include limit sensing on automated conveyors, position detection in small actuators, control panel interfaces requiring compact switches, and user-interface micro switch functions in instrumentation and equipment.
This switch features a 16A current rating suitable for moderate load applications. The SPDT configuration facilitates simple changeover switching. Thermoplastic housing provides electrical insulation and thermal stability.
Mechanical durability rated at 5 million operations ensures long service life. Wide operating temperature range supports varied industrial environments. Quick-connect tab terminals optimize installation efficiency. Certifications from UL, cUL, ENEC, RoHS, and CQC confirm regulatory compliance.
Explore more Honeywell Micro Switches at EnvMart for reliable industrial and electronic assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 16 amperes.
It operates within a temperature range of -25°C to 125°C.
This micro switch utilizes a plunger actuator for sensitive control.
The dimensions are 27.8mm in length, 10.3mm in width, and 10.3mm in depth.
The contact configuration is single-pole double-throw (SPDT).
The housing is made of polybutylene terephthalate thermoplastic, providing thermal resilience.
The mechanical life of this switch is rated for 5,000,000 operations.
It features tab-style quick-connect terminals for easy wiring.
It complies with cUL, ENEC, RoHS, CQC, and UL certifications.
The operating force required for actuation is 0.98 newtons.
It is suitable for applications such as limit sensing on automated conveyors and control panel interfaces.
This model supports a contact AC voltage of 250 volts.
