SICK Block Capacitive Proximity Sensor 10 mm NPN 200mA 30 V dc CQ28-10NNP-KW1

Free Delivery in India | Lowest Global Shipping Charges

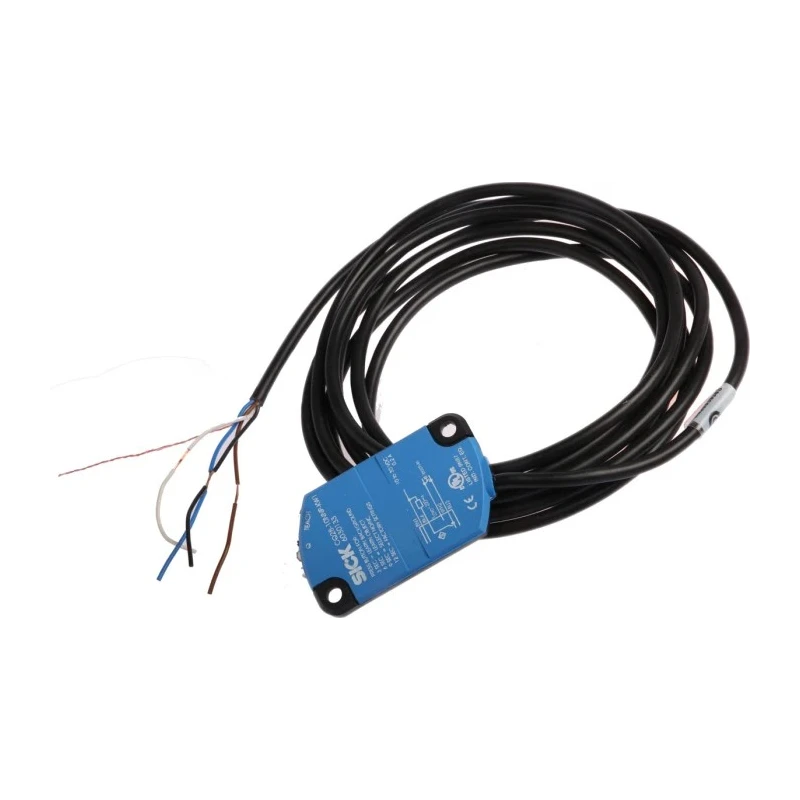

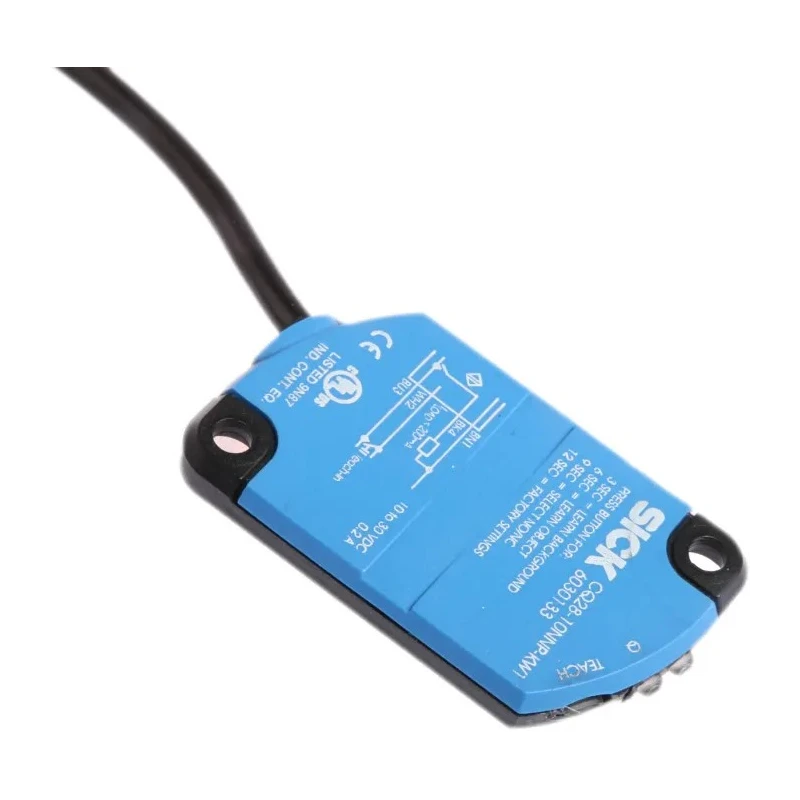

SICK Block Capacitive Proximity Sensor 10 mm NPN 200mA 30 V dc CQ28-10NNP-KW1

Name: SICK Block Capacitive Proximity Sensor 10 mm NPN 200mA 30 V dc CQ28-10NNP-KW1
Brand: SICK
SKU: 396051
Price: 177.04 USD
Availability: InStock



Category Capacitive Proximity Sensor Brand SICK Condition New

Specifications

Country of Origin	Lithuania
Brand	SICK
Dimensions	H 46mm x W 5.5mm x D 28mm
Length	46mm
Model	CQ28-10NNP-KW1
Depth	5.5mm
IP Rating	IP68
Width	27.6mm
Mount Type	Non-Flush
Housing Material	Plastic
Output type	NPN
Series	CQ28
Maximum Operating Temperature	85°C
Time Delay	300ms
Minimum Operating Temperature	-20°C
Switching Current	200mA
Terminal type	Pre-Cabled
Body Style	Block
Maximum dc Voltage	30V dc
Shielding	Unshielded
Maximum Switching Frequency	10Hz
Maximum Supply Voltage	30V
Maximum Detection	10mm

Key Features

The sensor has an ultra-thin plastic PBT block housing providing mounting flexibility.
It features an adjustable sensing range from 1 mm to 10 mm for non-flush mounting.
High EMC immunity ensures reliable operation in industrial environments.
It includes programmable NO and NC outputs with a response time delay of 300 ms.
The sensor supports NPN output type with a maximum switching current of 200 mA.
It operates at a maximum supply voltage of 30 V dc with a switching frequency of up to 10 Hz.
Operation temperature range spans from -20°C to 85°C suited for harsh conditions.
The device has IP68 protection rating for dust and water ingress resistance.

Product Description

SICK CQ28-10NNP-KW1 Block Capacitive Proximity Sensor is designed for accurate non-contact detection of various media such as liquids, solids, and powders in industrial automation, packaging, plastics, agriculture, and food and beverage industries. The device features a compact and slim plastic PBT body measuring 46 mm in height, 27.6 mm in width, and 5.5 mm in depth, facilitating flexible mounting options.

This sensor operates with a maximum supply voltage of 30 V dc and detects objects within a 10 mm range when mounted non-flush. It employs an NPN output with a maximum switching current of 200 mA and supports a switching frequency of 10 Hz. The device ensures high electromagnetic compatibility (EMC) immunity in accordance with EN60947-5-2 standards and includes a programmable NO and NC outputs which can be easily set up via a pushbutton or externally through COM input wiring.

The sensor's robust IP68-rated housing protects against dust and water ingress, making it suitable for harsh industrial environments. It operates over a temperature range of -20°C to 85°C and includes an LED display for simple operational feedback. Reverse polarity protection safeguards the sensor and connected devices.

The ultra-thin plastic block housing enables versatile deployment in tight spaces. Adjustable sensing distance from 1 mm to 10 mm accommodates varied application needs. High EMC immunity ensures consistent sensor performance in electrically noisy environments.

Programmable output with both NO and NC modes offers flexible control schemes. LED indicator assists with installation and diagnostics.

This capacitive proximity sensor is ideal for industrial, automated manufacturing, packaging, agricultural, food processing, and laboratory applications requiring non-contact level and presence detection. Its high protection rating and industrial-grade specifications ensure reliable long-term operation in challenging conditions.
