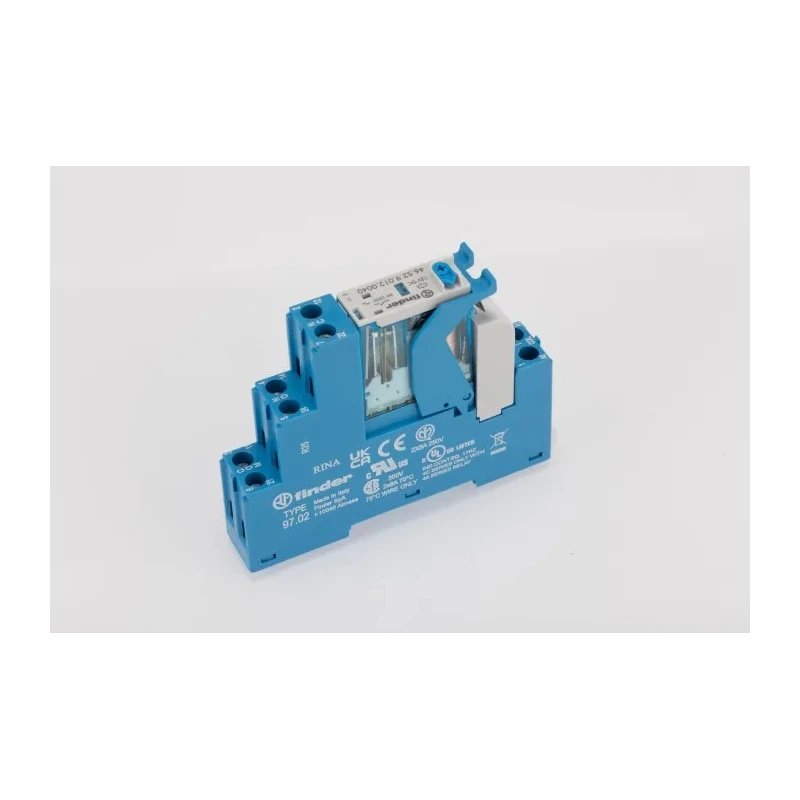

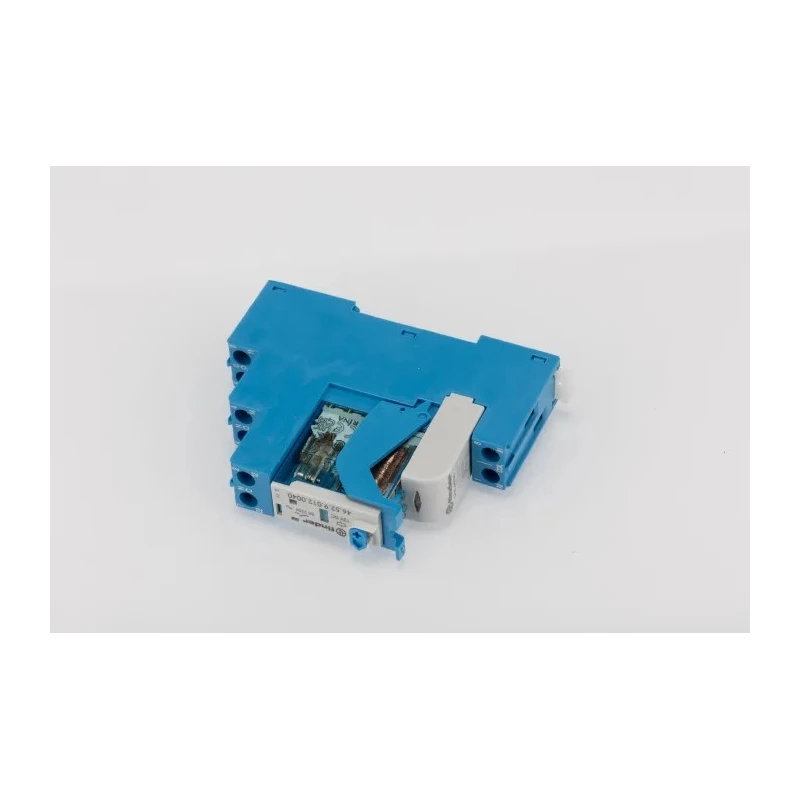

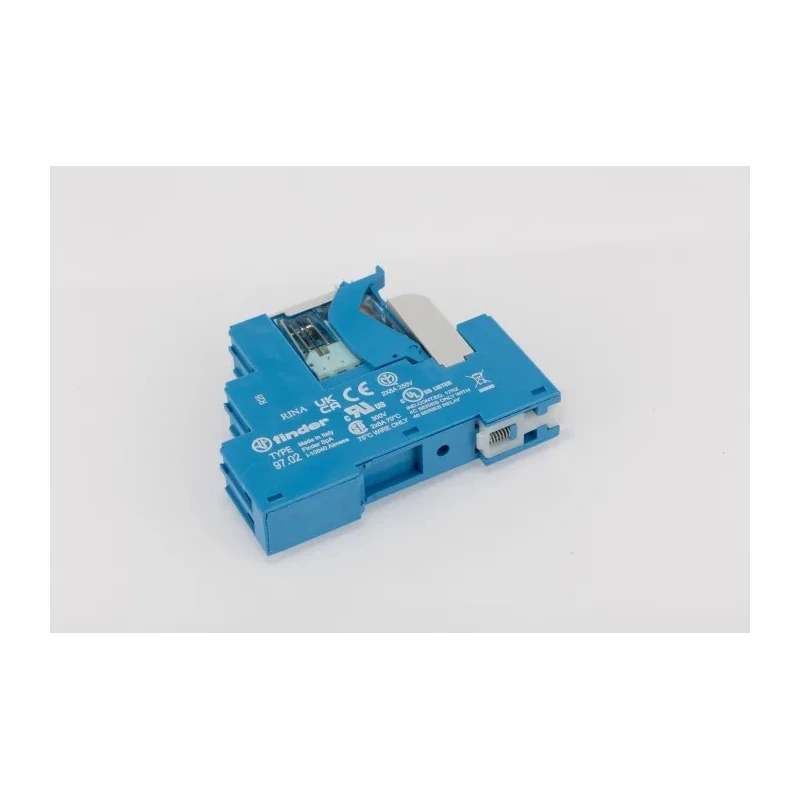

Finder 4C Series Interface Relay, DIN Rail Mount, 12V DC Coil, DPDT Contact, 8A Switching Current 4C.02.9.012.0050SPA

Finder 4C.02.9.012.0050SPA Interface Relay is a reliable electromechanical relay designed for industrial and automation applications. It features a 12V DC coil voltage and a DPDT (double pole double throw) contact configuration, enabling control of multiple circuits with high precision.

This relay is mounted on DIN rails and secured with screw terminals, providing stable and easy integration into control panels. The coil resistance is 300Ω with a coil current of 40mA, ensuring efficient energy usage. Its switching current capacity is rated at 8A, suitable for a broad range of electrical loads.

Constructed with silver alloy contacts, the relay offers excellent conductivity and prolonged operational life, with a mechanical life expectancy of up to 10 million cycles. It supports both AC and DC coil compatibility and features a switching AC voltage capability of up to 250V and switching DC voltage of 12V.

The relay operates effectively across a wide temperature range from -40°C to 70°C, making it well-suited for harsh environments such as industrial automation, escalators, lighting in tunnels and roads, distribution boards, carousel warehouses, and crane operations.

Compact in size, with dimensions of 82.9mm height, 15.8mm length, and 64.6mm width, the device is certified under EAC and CE standards, assuring quality and safety compliance. Features a double pole double throw (DPDT) contact configuration for versatile circuit control.

Coil voltage is rated at 12V DC with a coil resistance of 300Ω and coil current of 40mA. Switching current capacity of 8A suitable for various industrial applications. Silver alloy contacts ensure high conductivity and durability for up to 10 million mechanical cycles.

Operates efficiently within a temperature range of -40°C to 70°C. Mount type is DIN Rail with secure screw terminal connections. Compact dimensions measuring 82.9mm height, 15.8mm length, and 64.6mm width. Certified to EAC and CE standards guaranteeing quality and compliance.

Ideal for automation control panels, escalators, lifts, lighting systems, distribution boards, and industrial machinery.

This Finder 4C series interface relay integrates seamlessly in industrial electrical systems requiring high reliability and precise switching. Explore the full range of Interface Relays and electrical components in the EnvMart catalog for complementary solutions.
