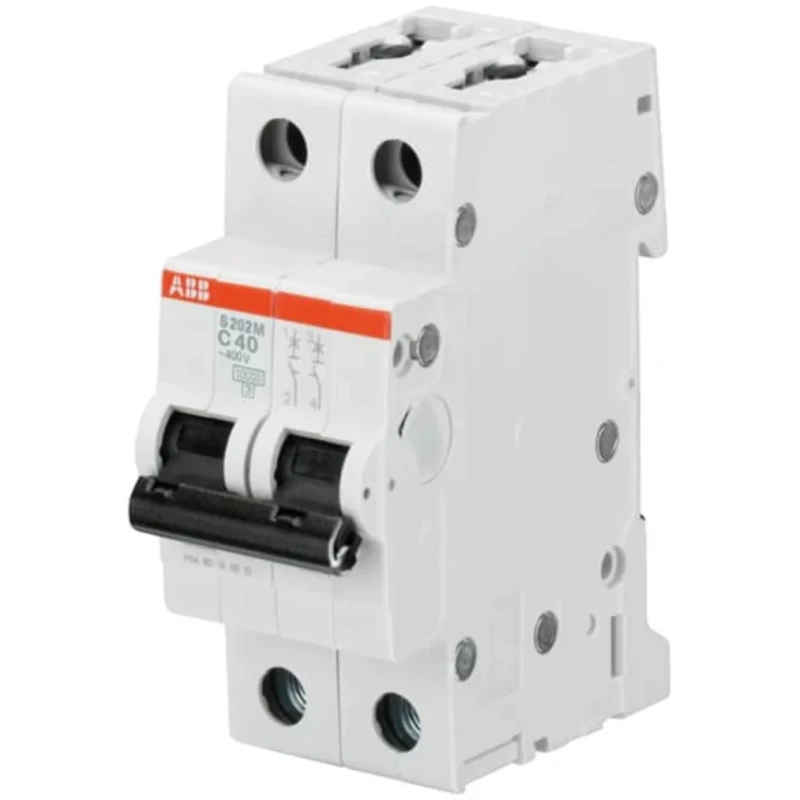

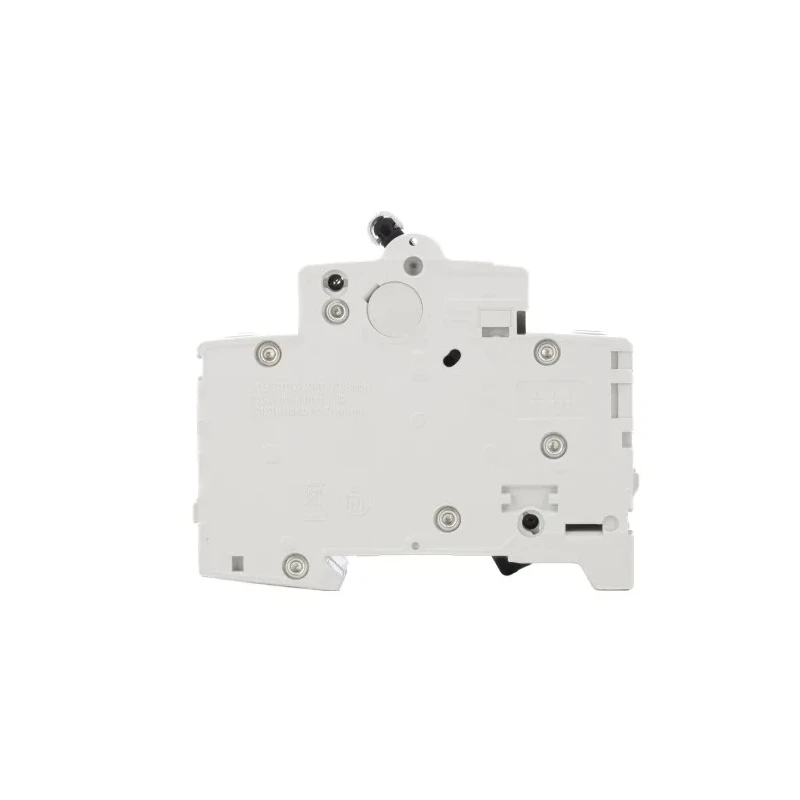

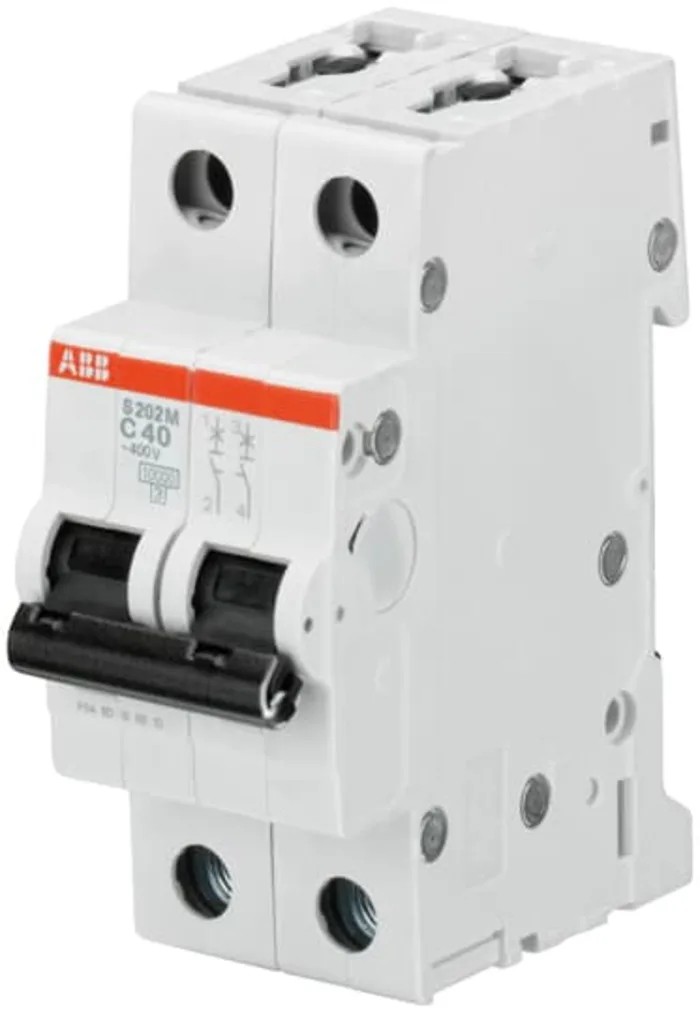

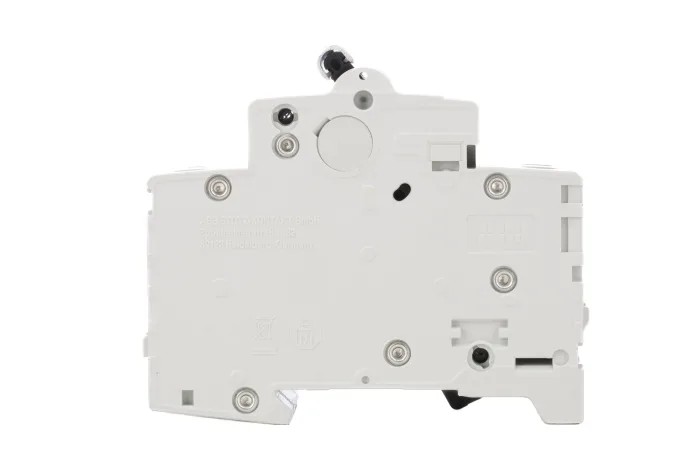

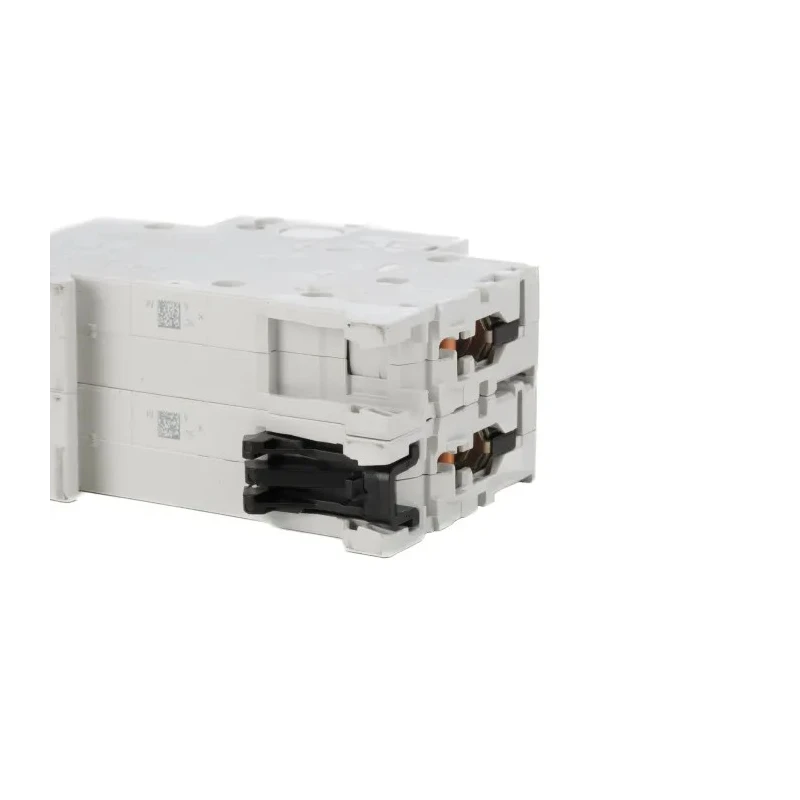

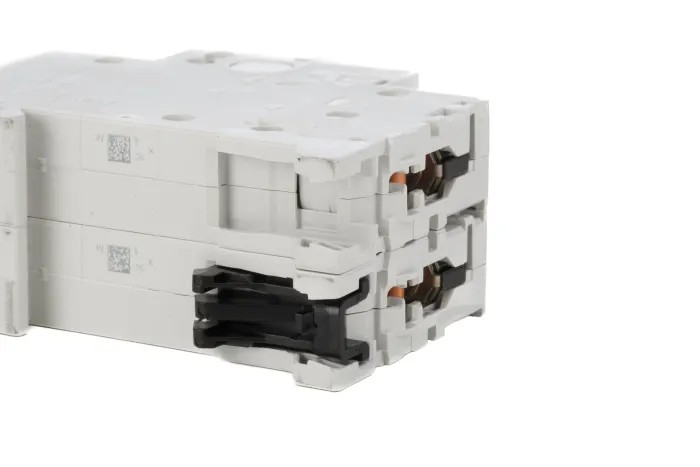

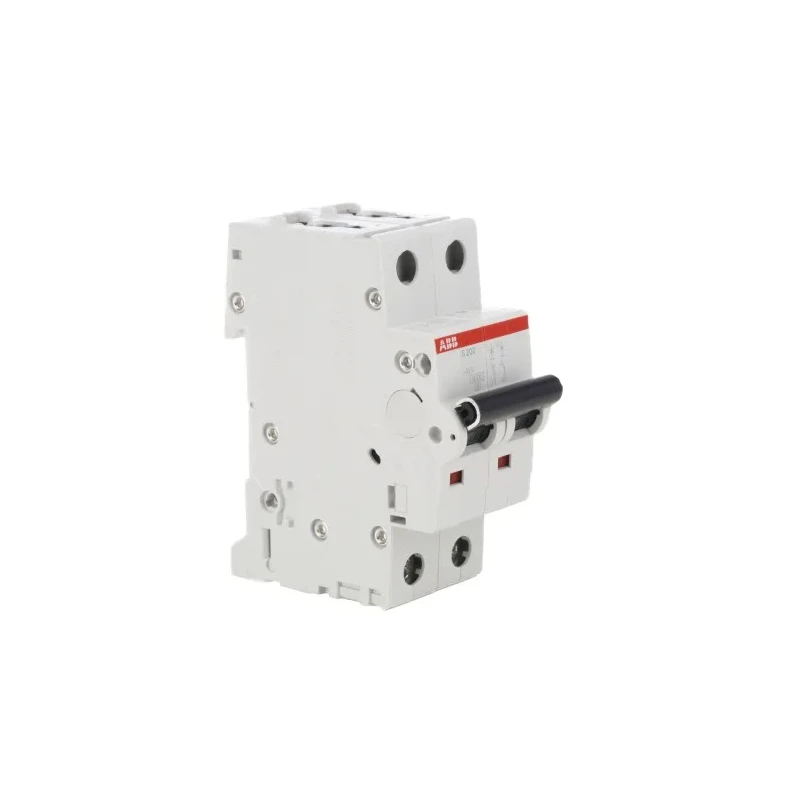

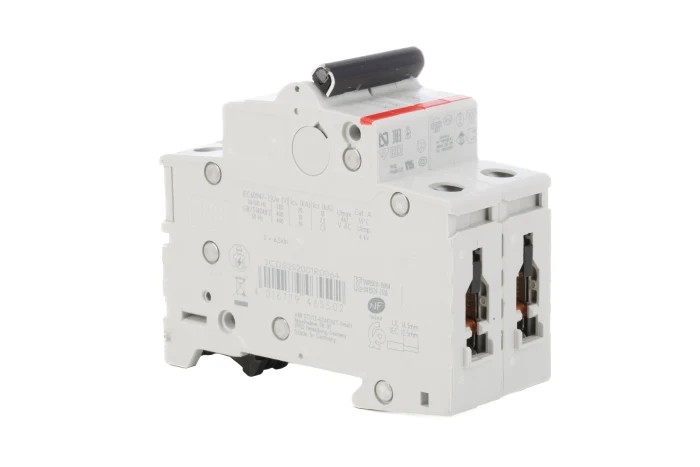

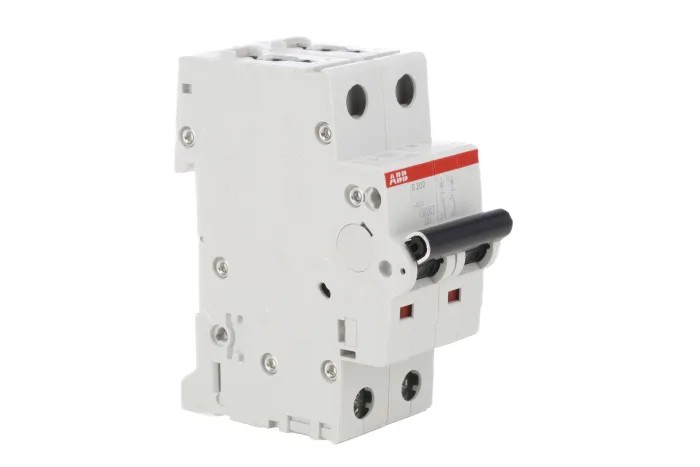

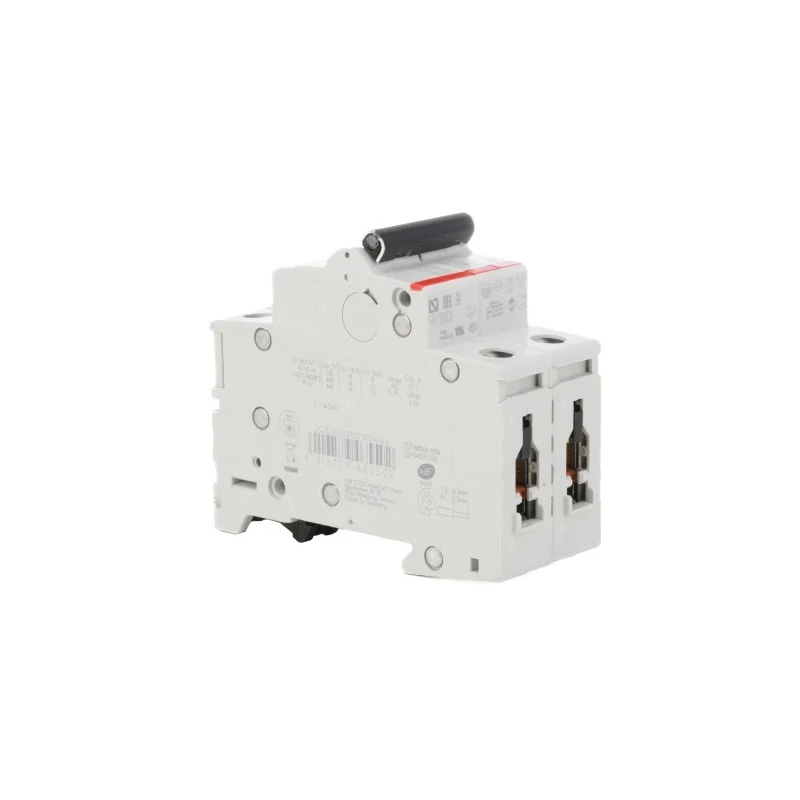

ABB System Pro M Compact S200M Miniature Circuit Breaker, 2-Pole, 2A, Type C, 440V AC, 125V DC, 10 2CDS272001R0024 S202M-C2

ABB 2CDS272001R0024 S202M-C2 is a System Pro M Compact miniature circuit breaker designed for protection of electrical circuits in industrial and commercial applications. It features 2 poles, a 2A current rating, and a Type C tripping characteristic, making it suitable for general purpose protection where surge currents up to 5-10 times the rated current can occur.

This circuit breaker supports both AC and DC voltages with ratings of 440V AC and 125V DC, respectively. It has a breaking capacity of 10 kA, ensuring effective interruption of fault currents to protect wiring and connected devices. The device incorporates both thermal and electromagnetic tripping mechanisms, giving reliable protection against overloads and short circuits.

The compact breaker mounts on a DIN rail for ease of installation and clean panel design. It has dual IP ratings of IP20 and IP40, indicating touch-proof safety and ingress protection suitable for indoor electrical installations. The product operates efficiently in harsh environments with a temperature range from -25°C to +55°C.

Compliance with IEC/EN 60947-2 and IEC/EN 60898-1 standards ensures reliability and safety in various industrial, commercial, and HVAC applications. Its dimensions of 111mm height, 35mm width, and 76mm depth allow space-saving configurations within distribution boards.

Manufactured in Germany, this ABB Miniature Circuit Breaker is part of the Better World program, designed for disassembly and sustainability. It is ideal for protecting electric motors, lighting systems, heating, ventilation, and air conditioning systems from overload and short circuit damage.

Provides reliable two-pole circuit protection for 2A currents. Type C tripping characteristic for surge protection between 5 and 10 times rated current. DIN rail mounting for streamlined electrical panel installations. Rated for both 440V AC and 125V DC voltages.

High breaking capacity of 10 kA for safe fault interruption. Thermal and electromagnetic tripping mechanisms for comprehensive protection. Dual IP20 and IP40 ratings ensure safety against electric shock and ingress. Wide operational temperature range from -25°C to +55°C for diverse environments.

Compact dimensions suitable for space-conscious setups. Manufactured in Germany with sustainability focus and better world compliance.

Ideal for industrial, electrical automation, HVAC, manufacturing, and commercial applications requiring dependable circuit protection. Explore more ABB products and circuit breakers on EnvMart for all your electrical safety needs.
