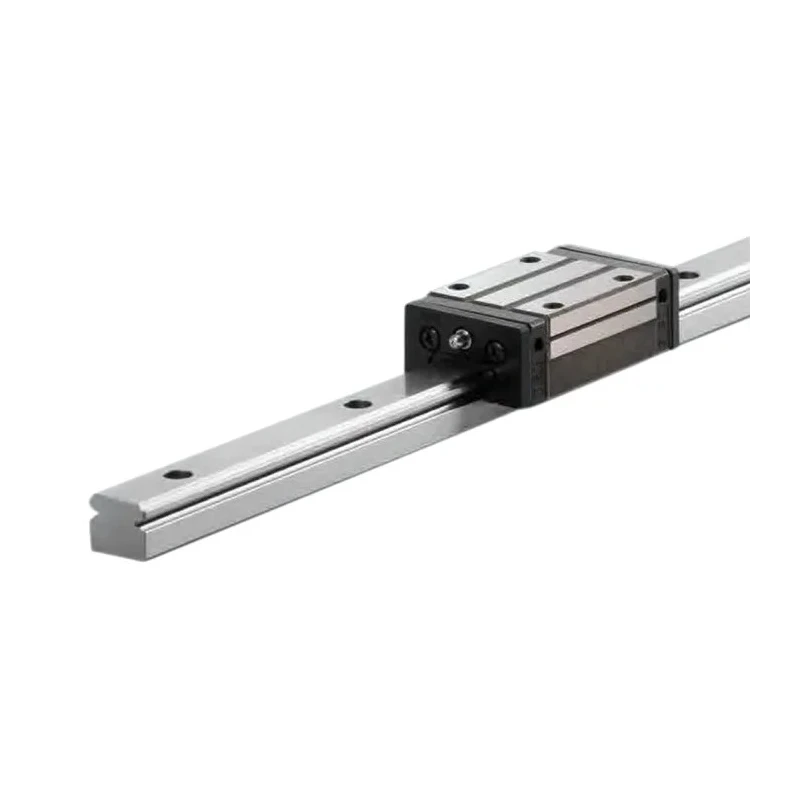

NSK Guide Block Linear Motion NS Series Compact Carriage 56.8mm Length 34mm Width 5750N Dynamic Load NAS15ALCE01PCZ

NSK NAS15ALCE01PCZ guide block is a part of the NS series compact linear guides designed to meet modern demands for high-performance linear motion solutions. Featuring a carriage length of 56.8 mm and width of 34 mm, this guide block delivers robust dynamic load capabilities of 5750 N with a static load rating of 9100 N, complying with ISO14728-1 and ISO14728-2 standards.

The updated NS series replaces the older LS and LH range, boasting 1.3 times the dynamic load rating and a new groove design that significantly doubles load-bearing lifespan by enhancing ball and rail contact. This results in reduced surface pressure and extended maintenance intervals, improving operational productivity.

The guide block maintains identical installation dimensions with the previous LH and LS series, facilitating seamless component compatibility. A redesigned ball recirculation path optimizes noise reduction by up to 3 dB and intensifies suitability for high-speed operations.

NSK’s K1 lubrication system, incorporated in this series, combines 70% mineral oil and 30% polyolefin resin to enable maintenance-free operation over a lifespan of up to 40,000 km. This lubrication system is effective regardless of orientation and eliminates the challenges of grease application or oil contamination, enhancing reliability in various industrial environments.

This guide block is expressly suited for industrial uses including machine tools, robotic systems, semiconductor manufacturing, automotive production lines, CT scanners, measuring instruments, and automated train platform doors.

Compact carriage dimensions optimize space usage in machinery design. High dynamic and static load ratings for demanding mechanical requirements. Compliance with recognized international standards assures quality. Extended service life through improved mechanical design and lubrication system.

Noise reduction enhances operational condition in sensitive environments. Compatibility with legacy systems simplifies upgrades and replacements. Maintenance-free operation reduces downtime and service costs. Versatile applicability across multiple industrial sectors.

Set contains 1 guide block. Explore more from NSK and similar linear motion products on EnvMart.
