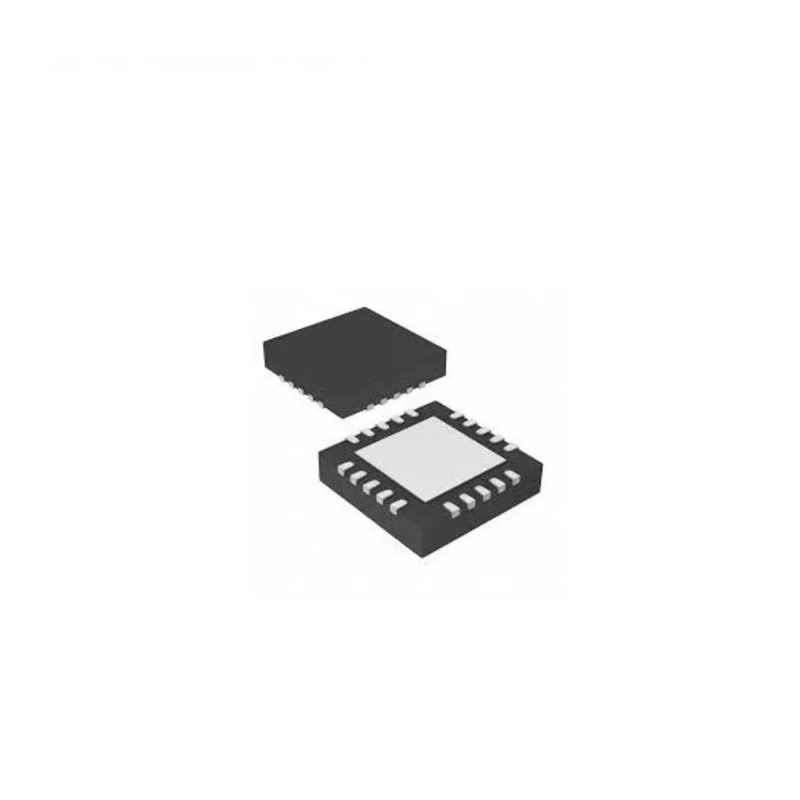

Microchip 8 bit PIC Microcontroller, 20 MHz Clock, 3.5kB FLASH, 20-Pin QFN PIC16F785-I/ML

Microchip PIC16F785-I/ML is a new 8-bit PIC microcontroller designed with a 20 MHz frequency and 3.5kB FLASH memory in a 20-pin QFN package. This microcontroller integrates a RISC instruction set architecture optimized for fast execution with only 35 instructions, mostly single-cycle, offering efficient program performance for embedded applications.

It features a broad operating voltage range from 2.5 volts to a maximum of 5.5 volts, making it ideal for industrial, automotive, and consumer electronics applications. The device supports multiple communication interfaces including PWM, I2C, SPI, and EUSART, enabling versatile connectivity in complex system designs.

Designed for durability and reliability, it supports an industrial temperature range from -40°C to 85°C, suitable for use in demanding environments. With its 3 timers, 10-bit ADC, and 20 programmable I/O pins, it provides ample functionality for timing, analog signals processing, and I/O management.

The microcontroller is equipped with power-saving features including a low-power sleep mode, software-controlled brown-out reset and a programmable code protection mechanism to secure embedded software from unauthorized access.

Its compact 7.62mm wide QFN surface mount package supports high-density PCB layouts, facilitating miniaturized device designs. This Microchip PIC16F785-I/ML microcontroller is extensively used in industrial automation, embedded control systems, consumer electronics, automotive electronics, and instrumentation.

Utilizes an 8-bit PIC architecture supporting RISC instruction set. Operates within a voltage range of 2.5V to 5.5V suitable for industrial applications. Equipped with 3 timers and 10-bit ADC capabilities for versatile control uses.

Includes PWM, I2C, SPI, and EUSART interfaces enabling diverse communication protocols. Operates within an extended temperature range of -40°C to 85°C for harsh environments. Features software selectable frequency range from 8 MHz down to 32 kHz.

Supports power-saving sleep mode and brown-out reset with software control. Has 128-bit RAM and 20 programmable I/O ports for flexible hardware control. Packaged in a compact 7.62mm width QFN surface mount form factor.

Ideal for engineers and designers implementing reliable microcontroller solutions in modern embedded electronics, the PIC16F785-I/ML offers an excellent balance of performance, power savings, and peripheral integration.
