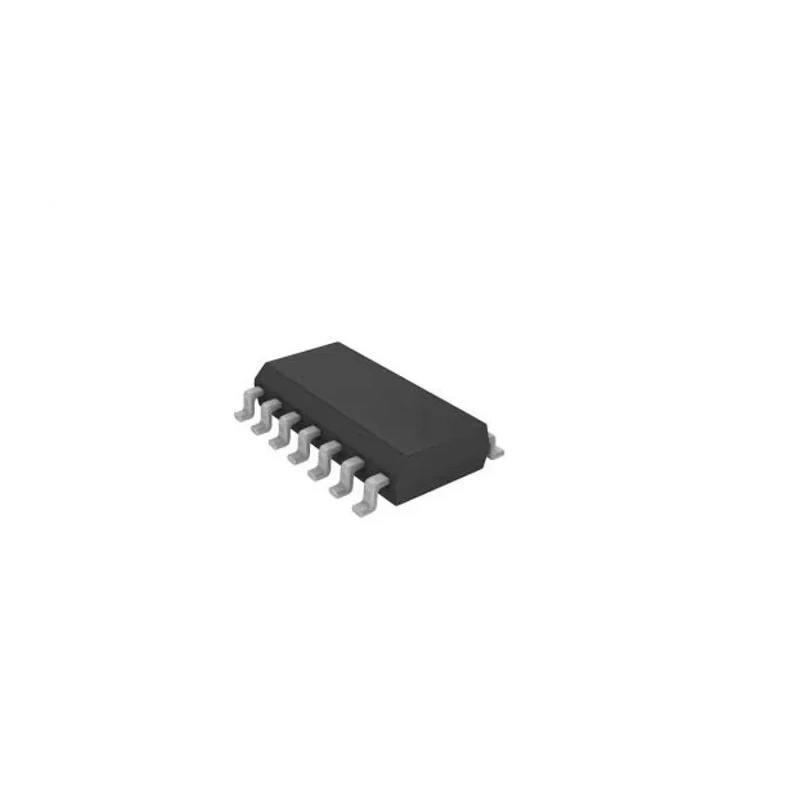

Microchip 8-bit PIC Microcontroller SOIC 14-Pin, 32 MHz Clock, 28kB FLASH Memory PIC16F18426-I/SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.75mm |
| Length | 8.65mm |
| Model | PIC16F18426-I/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Interface Type | EUSART, NCO, I2C, DSM, PPS, PWM, SPI, CWG |
| Standards/Approvals | RoHS, REACH |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 28kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 14 |
| Number of Timers | 8 |
| Instruction Set Architecture | RISC |
| ADCs | 10 bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates with an 8-bit PIC core optimized for embedded applications.
- Includes 2kB RAM and 28kB program memory using FLASH technology.
- Supports maximum supply voltage up to 5.5V and minimum supply voltage of 2.5V.
- Contains multiple communication interfaces including EUSART, I2C, SPI, and PWM peripherals.
- Designed for operation in temperature range of -40°C to 85°C for industrial use.
- Provides 14 programmable I/O pins and 8 timers for flexible control tasks.
- Includes a 10-bit ADC and a 5-bit DAC for analog operations.
- Compact dimensions of 8.65mm length, 3.9mm width and 1.75mm height in SOIC package.
Product Description
Microchip PIC16F18426-I/SL is a high-performance 8-bit PIC microcontroller packaged in a 14-pin SOIC format, designed for use in a wide array of embedded applications requiring efficient processing and low power consumption.
It operates with a maximum clock frequency of 32 MHz and offers 28kB of FLASH program memory coupled with 2kB of RAM to handle complex program logic.
With a broad operating voltage range from 2.5V to 5.5V and operating temperature limits from -40°C to 85°C, this microcontroller is engineered to withstand demanding industrial and commercial environments.
Equipped with versatile communication peripherals such as EUSART, I2C, SPI, PWM, and CWG along with 14 programmable I/O pins, it facilitates varied interfacing needs. The integrated 10-bit ADC and a 5-bit DAC enhance analog interfacing capabilities within embedded systems.
The PIC16F18426-I/SL operates using a RISC architecture optimized for fast and reliable execution, supported by 8 timers and a 16-level hardware stack. Its compact SOIC package, measuring 8.65mm by 3.9mm by 1.75mm, makes it suitable for space-constrained circuit boards.
This product complies with RoHS and REACH directives, ensuring environmentally conscious manufacturing standards. Operates at 32 MHz clock frequency providing efficient processing power. 28kB Flash Memory for program storage and 2kB RAM for data handling.
Wide supply voltage range: 2.5V to 5.5V for flexible power options. Multiple interfaces including EUSART, I2C, SPI, and PWM for robust connectivity. Supports operation in temperatures from -40°C to 85°C for industrial reliability.
Includes 14 programmable I/O pins and 8 timers for versatile control. Integrated 10-bit ADC and 5-bit DAC for analog signal processing. Compact 14-pin SOIC surface mount package dimensions optimized for PCB design. Compliance with RoHS and REACH environmental standards ensures regulatory adherence.
This Microchip microcontroller model PIC16F18426-I/SL is well suited for applications in industrial automation, consumer electronics, HVAC control systems, automotive sensors, and other embedded system implementations demanding reliable 8-bit processing and low power consumption.
Explore the full range of Microchip microcontrollers on EnvMart for tailored solutions to your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It has a program memory size of 28kB using FLASH technology.
This microcontroller operates within a temperature range of -40°C to 85°C.
The PIC16F18426-I/SL features 14 programmable I/O pins.
It supports multiple communication interfaces including EUSART, I2C, SPI, and PWM.
The SOIC package measures 1.75mm in height and 3.9mm in width.
This model includes 2kB of RAM.
It operates with a supply voltage range from 2.5V to 5.5V.
The PIC16F18426-I/SL includes 8 timers for flexible control tasks.
It features a 10-bit ADC for analog signal processing.
Yes, it complies with RoHS and REACH environmental standards.
The length of this microcontroller is 8.65mm.
