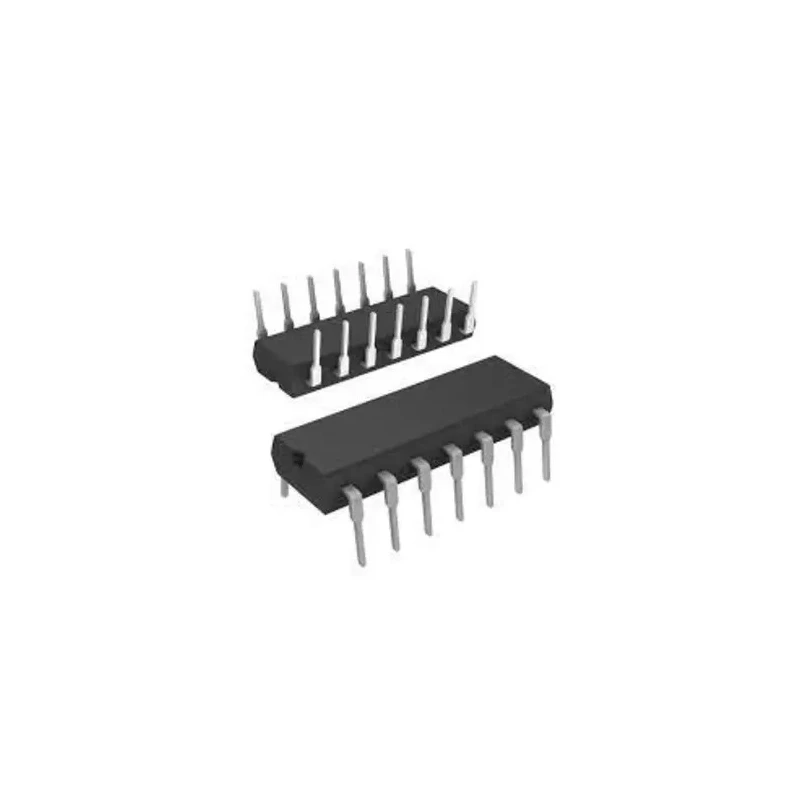

Microchip 8 bit PIC Microcontroller, 20 MHz Clock, 1.7kB FLASH Memory, 14-Pin DIP Package PIC16F630-E/P

Microchip PIC16F630-E/P is an 8 bit CMOS flash-based microcontroller designed for various industrial and embedded applications. It is built around a PIC core with a minimal 35-instruction set, optimized for single-cycle instruction execution except for branches which require two cycles. Operating at a maximum clock frequency of 20 MHz, this microcontroller provides efficient processing capabilities.

The device features 1.7kB of flash program memory with an endurance of 100,000 write cycles and 64 bits of RAM, ensuring reliable code storage and temporary data management. It supports multiple communication interfaces including GPIO, SPI, I2C, and UART, making it highly flexible for interfacing with other hardware components.

The microcontroller is equipped with 12 programmable input/output pins, two timers for event control, and a 10-bit ADC module enabling analog-to-digital conversion. It includes power management features such as power-saving sleep mode and a watchdog timer with an independent oscillator for increased reliability. The device supports a wide operating voltage range from 2.5V to 5.5V, enabling operation in variable power environments. It also provides robust industrial temperature tolerance from -40°C to 85°C suitable for harsh operating conditions.

Operates on a streamlined RISC architecture improving power, speed, and efficiency. Flexible Flash Memory and EEPROM with long retention ensures durability. Supports extensive communication protocols for diverse applications.

Incorporates multiple timers and watchdog functionality for dependable operation. Compact DIP package facilitates straightforward integration on PCBs. Complies with RoHS directives making it environmentally responsible. Ideal for embedded control, industrial automation, and low power applications requiring reliable microcontroller performance.

This Microchip microcontroller can be effectively utilized in industrial controls, home automation, sensor interfacing, and small embedded systems to deliver reliable computing power in compact form factor. Its extended temperature range and robust memory endurance make it well suited for demanding environments.
