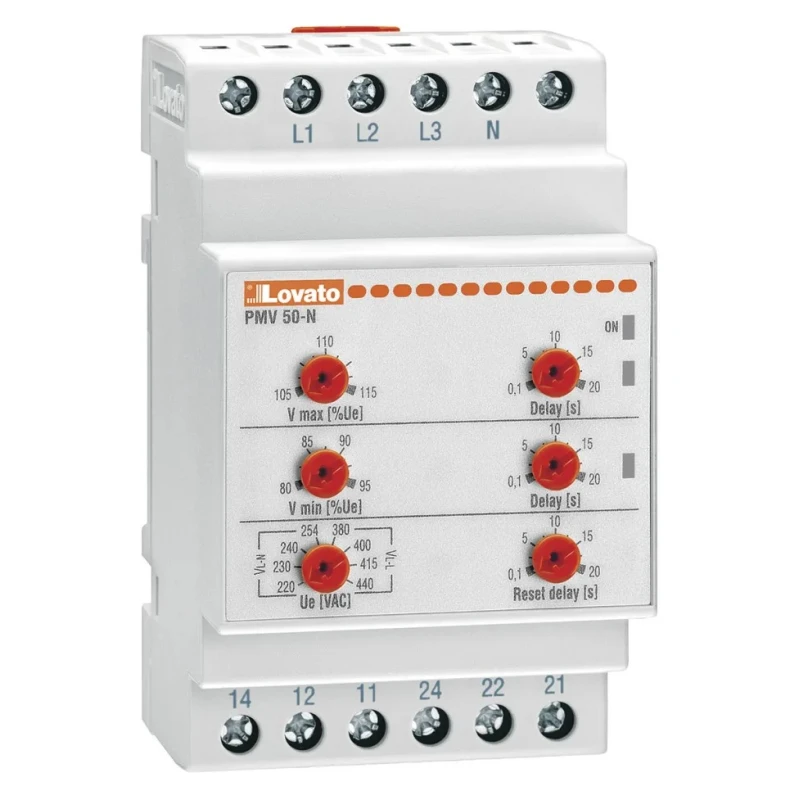

Lovato Electric Monitoring Relay 3 Phase SPDT DIN Rail 208V AC 240V AC PMV50NA240
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Lovato Electric |
| Height | 104.7mm |
| Length | 35.8mm |
| Model | PMV50NA240 |
| IP Rating | IP20, IP40 |
| Width | 64.9mm |
| Mount Type | DIN Rail |
| Series | PMV50 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Compliant with Standards | IES/EN 60255-5 |
| Electrical Phase | 3 |
| Switching Voltage | 400V ac |
| Contact Current | 8A |
| Supply AC Voltage | 208, 240V ac |
| IEC protection | IP40 on front and only when placed in an IP40 enclosure or control board |
Key Features
- Self-powered relay suitable for monitoring minimum and maximum voltages.
- Modular DIN 43880 housing with compact dimensions for easy panel installation.
- Equipped with SPDT contact configuration ensuring reliable switching.
- IP20 protection at terminals and IP40 protection on the front panel with appropriate enclosure.
- High contact current rating of 8A and switching voltage up to 400V AC.
- Suitable for three-phase electrical systems with configurable rated voltage.
- Wide operating temperature range from -60°C to +60°C for versatile environmental application.
- Certified to international standards including RoHS, IEC/EN 61000-6-3, UL 508, and CSA C22.
Product Description
Lovato Electric PMV50NA240 Monitoring Relay is a three-phase, SPDT contact relay designed for accurate voltage monitoring in electrical and automation systems. Operating at 208V AC and 240V AC supply voltages, this relay effectively monitors minimum and maximum voltage levels and detects phase failures and incorrect phase sequence. Its modular DIN 43880 housing facilitates easy mounting on DIN rails within electrical panels.
This relay features a screw terminal type for secure wiring connections and offers IP20 protection at the terminals, with IP40 protection on the front when installed in an IP40 enclosure or control board. It supports a switching voltage of up to 400V AC and a contact current rating of 8A to handle various load requirements.
The PMV50NA240 provides excellent tripping accuracy and configurable rated voltage settings ensuring flexibility in diverse industrial applications. With an operating temperature range from -60°C to +60°C, it is built for reliable performance in harsh environments.
Self-powered design supporting minimum and maximum AC voltage detection. Compact DIN Rail housing compliant with IEC and UL standards. SPDT contact configuration for versatile switching applications. High electrical endurance with 8A contact current and 400V AC switching capacity.
IP20 and IP40 protection levels to ensure durability and safety. Suitable for use in industrial automation, electrical distribution, and control systems. Conforms to standards IEC/EN 61000-6-3, IEC/EN 61000-6-2, UL 508, and CSA C22.
Manufactured in Italy adhering to stringent quality assurance processes.
This Monitoring Relay is ideal for use in industrial machinery, electrical panels, HVAC systems, and any application requiring reliable voltage monitoring and phase detection. Its robust build and international certifications provide confidence in safety and performance.
Available for purchase through EnvMart, this Lovato Electric PMV50NA240 relay delivers a dependable solution for advanced control and signal conditioning needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
The PMV50NA240 has a maximum switching voltage of 400V AC, suitable for various load requirements.
The dimensions of this unit are 104.7mm in height, 35.8mm in length, and 64.9mm in width.
It operates within a temperature range of -60°C to +60°C, making it suitable for diverse environmental conditions.
This model uses screw terminals for secure wiring connections, ensuring reliable installation.
Yes, it is designed for three-phase electrical systems, effectively monitoring minimum and maximum voltage levels.
The contact current rating for the PMV50NA240 is 8A, allowing it to handle various load requirements.
It is designed for mounting on DIN rails, facilitating easy installation within electrical panels.
This relay has an IP20 protection rating at the terminals and IP40 protection on the front when installed in an appropriate enclosure.
It complies with several international standards, including RoHS, IEC/EN 61000-6-3, UL 508, and CSA C22.
The PMV50NA240 operates at supply voltages of 208V AC and 240V AC, with configurable rated voltage settings.
This monitoring relay is manufactured in Italy, adhering to stringent quality assurance processes.
