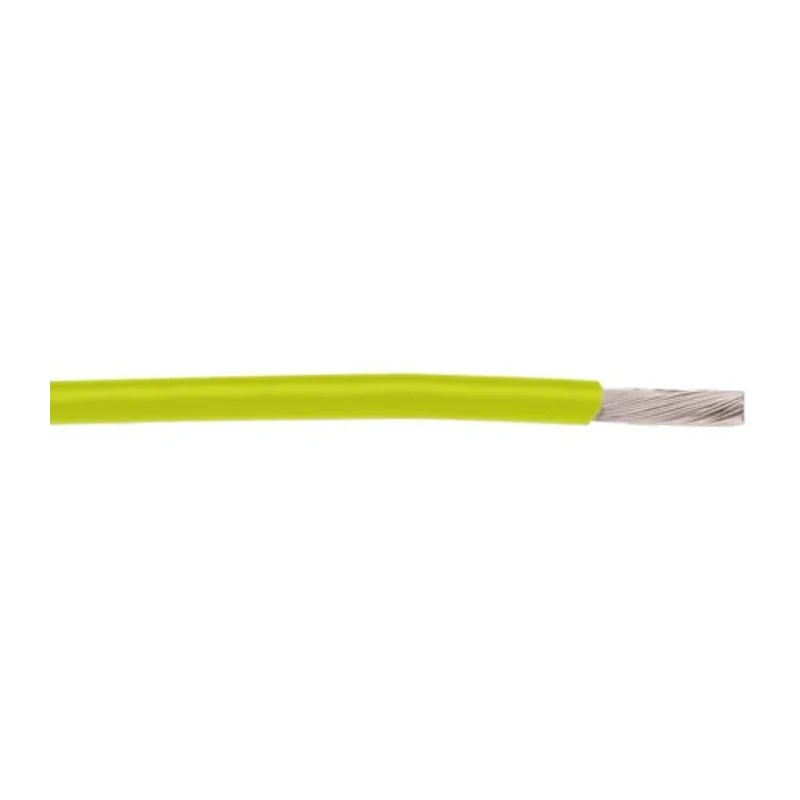

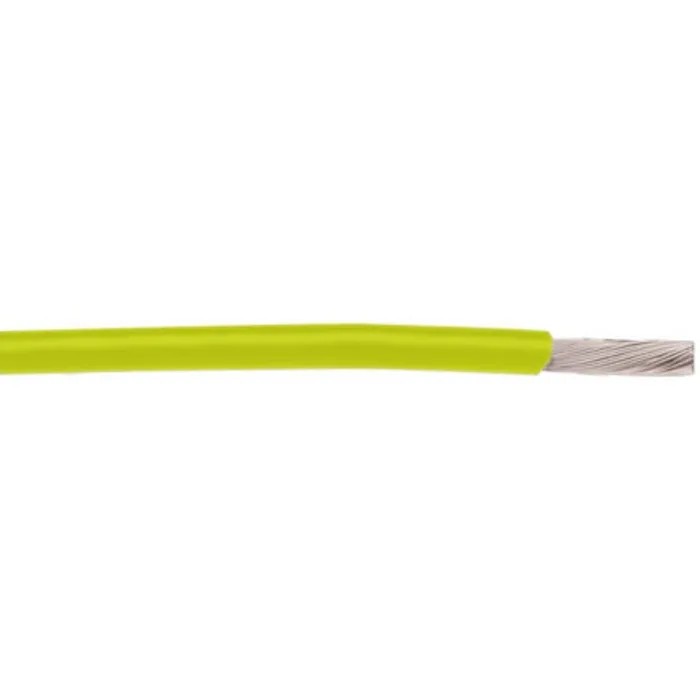

Alpha Wire PTFE Hook Up Wire 24 AWG 0.24 mm² 19/36 Stranded Yellow 30.5 m 2844/19 YL005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire PTFE Hook Up Wire 24 AWG 0.24 mm² 19/36 Stranded Yellow 30.5 m 2844/19 YL005

Name: Alpha Wire PTFE Hook Up Wire 24 AWG 0.24 mm² 19/36 Stranded Yellow 30.5 m 2844/19 YL005
Brand: ALPHA WIRE
SKU: 394227
Price: 92.68 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Alpha Wire
Temperature range	-60°C to +200°C
CROSS SECTIONAL AREA	0.24mm²
Model	2844/19 YL005
Cable Length	30.5m
Series	Hookup Wire TEFLON
Outside diameter	0.91mm
Maximum Operating Temperature	200°C
Conductor Material	Copper
Minimum Operating Temperature	-60°C
Wire size	24 AWG
Standards/Approvals	California Proposition 65, EU Directive 2011/65/EU (RoHS2), MIL-DTL-16878/6 (Type ET), MIL-W-16878E-TYPE ET, NEMA HP3-ETXBAB, REACH Regulation (EC 1907/2006), RoHS Compliant, UL VW-1
Jacket Colour	Yellow
Fire Behaviour	Flame Resistant
American Wire Gauge	24AWG
Number of Strands	19
Core Strands	19 x 36AWG
Size of Strands	36AWG
Stranding	19/36 AWG
Chemically inert	Chemical and solvent resistance
NEMA HP3 Type	ETXBEE
Insulation Colour	Yellow

Key Features

The wire features PTFE insulation providing excellent chemical resistance and high-temperature durability.
Stranded conductor with 19 strands of 36 AWG ensures flexibility and reliability for electronic applications.
Designed to operate within temperatures ranging from -60°C to +200°C.
The insulation color is yellow for easy identification.
Rated for 250 V operating voltage and flame resistant complying with multiple standards including MIL-DTL-16878/6 and UL VW-1.
Suitable for demanding environments including military, automotive, control panels, and electronic equipment internal wiring.
Provides excellent electrical performance with copper conductor material.
Compliant with RoHS, REACH, and California Proposition 65 regulations ensuring safety and environmental standards.

Product Description

Alpha Wire 2844/19 YL005 PTFE Hook Up Wire is a premium 24 AWG copper conductor wire with a 0.24 mm² cross-sectional area. The wire is composed of 19 strands each of 36 AWG, providing both flexibility and durability. It is insulated with yellow Polytetrafluoroethylene (PTFE), known for excellent chemical resistance and the ability to operate in extreme temperature ranges from -60°C to +200°C.

This flame-resistant hook-up wire meets rigorous standards such as MIL-DTL-16878/6 (Type ET), NEMA HP3-ETXBAB, UL VW-1, RoHS, and REACH regulations, making it ideal for demanding electronic, military, and industrial applications. The wire’s 250 V rating allows its use in low voltage and current electronic control panels, automotive wiring, ovens, meters, and other internal electronic equipment.

With a compact outside diameter of 0.91 mm and a length of 30.5 meters, this wire is well-suited for delicate wiring tasks requiring high reliability. PTFE insulation ensures chemical and solvent resistance, making it resistant to degradation in harsh environments such as laboratories and manufacturing facilities.

This product is commonly utilized in military applications benefiting from mil-spec standards, guaranteeing performance under shock, temperature extremes, and chemical exposure. Applications include control cabinets, machine tools, off-road equipment, transformers, switchboards, and high-temperature ovens.

PTFE insulation provides excellent electrical properties and high temperature resistance. Copper conductor with 19/36 AWG stranded construction ensures flexibility and durability. Temperature range from -60°C to +200°C supports various industrial and military uses.

Yellow insulation color for clear identification. Flame resistant and meets extensive compliance standards for safety and environmental regulations. Suitable for electrical, automotive, military, and industrial wiring applications.

Chemical and solvent resistant for harsh environment durability. Compact 0.91 mm outside diameter for space-saving installations. 30.5 m cable length provides sufficient wiring for multiple uses. Conforms to California Proposition 65, RoHS2, MIL standards, and REACH regulations.

Explore more technical wires and cables in the Electronics & Electricals category on EnvMart for your industrial and laboratory needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model operates within a temperature range of -60°C to +200°C, making it suitable for various industrial and military applications.

It is rated for a maximum operating voltage of 250 V, allowing its use in low voltage electronic applications.

The wire has a length of 30.5 meters and an outside diameter of 0.91 mm, which is compact for space-saving installations.

The wire features a copper conductor with PTFE insulation, providing excellent chemical resistance and high-temperature durability.

This unit consists of 19 strands of 36 AWG, ensuring flexibility and reliability for electronic applications.

It complies with several standards including MIL-DTL-16878/6, RoHS, REACH, and UL VW-1, ensuring safety and environmental compliance.

Yes, the PTFE insulation provides chemical and solvent resistance, making it suitable for harsh environments such as laboratories and manufacturing facilities.

This model is commonly utilized in military applications, automotive wiring, control panels, and internal wiring for electronic equipment.

The yellow insulation color allows for easy identification of the wire, which can be beneficial in complex wiring setups.
