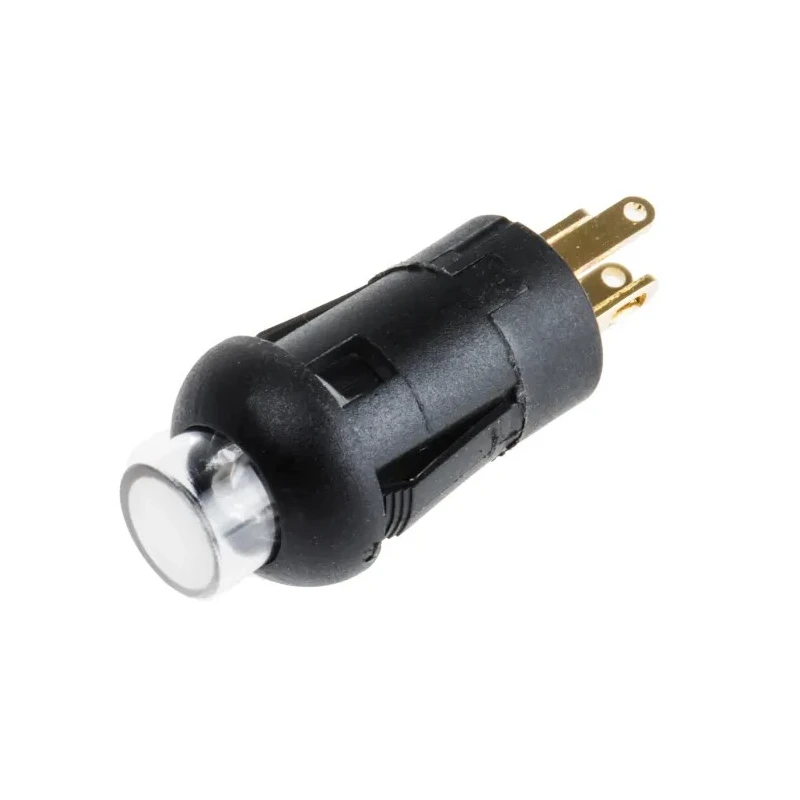

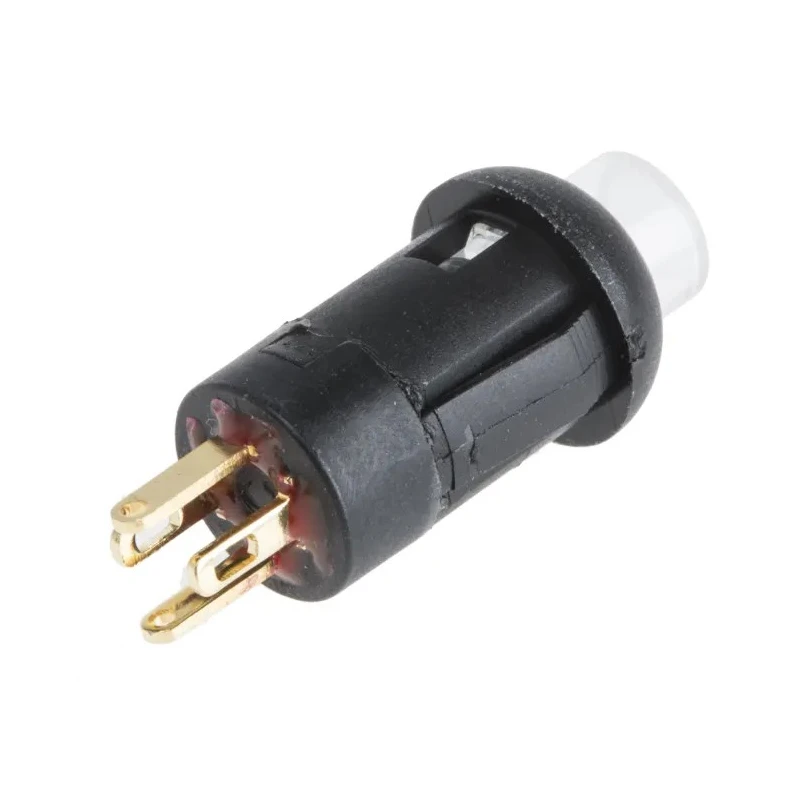

RS PRO Illuminated Miniature Push Button Switch Momentary PCB Cap Actuator SPST Blue Green LED 30V DC 30V AC 820-7546

RS PRO 820-7546 Illuminated Miniature Push Button Switch is a high-quality component designed for momentary SPST switching with PCB mount and 8 mm panel cutout size. It features a cap actuator that illuminates with blue and green LEDs providing visual feedback in circuits.

The switch body is constructed from Nylon 6/6, ensuring robustness, while the terminals are copper alloy with gold plating to maintain excellent electrical conductivity and corrosion resistance. It supports contact voltages of up to 30V DC and 30V AC with a contact current rated at 100mA. The maximum operating temperature rating is 85°C, allowing use in demanding conditions.

The mechanical design offers a total travel distance of 1.2±0.3 mm with an operating force around 250±100 gram-force. This ensures precise control with a reliable momentary on-off action when pressed. The normally open SPST contact configuration makes it suitable for a wide variety of electrical and electronic switching applications.

Common industrial use cases include test equipment setups, telecommunications infrastructure, networking devices, and handheld appliances where reliable and visible user input is necessary.

The switch’s illuminated blue and green LEDs enhance user interface interaction. Compact miniature design with durable materials ensures a long operating life up to 50,000 cycles. Gold-plated terminal pins provide superior electrical performance and durability.

The product is engineered for seamless PCB integration with precise mounting. Operates efficiently within temperature extremes up to 85°C. Provides reliable momentary operation for various industrial and commercial applications.

For industrial and commercial requirements in electronics, the RS PRO 820-7546 model is a trusted push button switch solution. Browse further options in Push Button Switches category at EnvMart for more products that suit varied applications.
