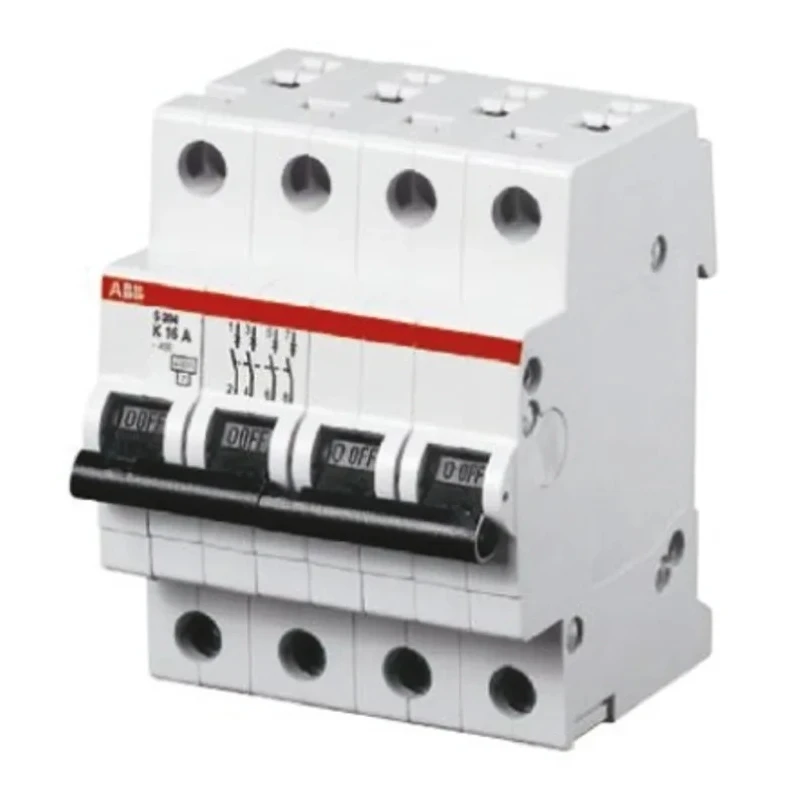

ABB System Pro M Compact S200M Miniature Circuit Breaker, 4-Pole, 20A, Type B, 400V AC, 10 kA 2CDS274001R0205 S204M-B20

Free Delivery in India | Lowest Global Shipping Charges

ABB System Pro M Compact S200M Miniature Circuit Breaker, 4-Pole, 20A, Type B, 400V AC, 10 kA 2CDS274001R0205 S204M-B20



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	88mm
Model	2CDS274001R0205 S204M-B20
Depth	75mm
IP Rating	IP40, IP20
Width	70mm
Mount Type	DIN Rail
Current Rating	20A
Series	S200M
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	4
Standards/Approvals	IEC/EN 60947-2, IEC/EN 60898-1
Rated AC Voltage	400V ac
Tripping Characteristics	Type B
Better World Claim	Designed for Disassembly
Tripping Mechanism	Thermal
Reset Actuator Type	Toggle Switch

Key Features

Designed for reliable circuit protection in industrial and commercial electrical systems.
Features thermal tripping mechanism to prevent overload and overheating.
Compact size with width of 70 mm and depth of 75 mm for easy panel integration.
Mounts easily on DIN rail enabling flexible installation and maintenance.
Screw terminal type ensures secure and stable electrical connections.
Rated for 400V AC voltage with a breaking capacity of 10 kA.
IP40 and IP20 ratings provide protection against solid objects and limited ingress of dust.
Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards for operational safety.

Product Description

ABB 2CDS274001R0205 S204M-B20 System Pro M Compact S200M Miniature Circuit Breaker is a high-quality electrical protection device designed to safeguard commercial and industrial electrical installations. This 4-pole breaker supports an operating current of 20A and operates reliably at 400 V AC voltage. The device features Type B tripping characteristics and a thermal tripping mechanism for effective overload protection to prevent electrical faults that could lead to equipment damage or fire hazards.

With dimensions measuring approximately 70 mm width, 88 mm height, and 75 mm depth, this MCB has a compact form factor optimized for space-saving electrical panels. Its DIN rail mounting design allows for quick installation and flexible arrangements within control panels, facilitating maintenance and modifications.

The breaker uses screw type terminals to ensure secure and stable electrical connections, enhancing safety during operation and maintenance. ABB's System Pro M Compact range incorporates sustainable design principles, including ease of disassembly for efficient recycling and maintenance, aligned with environmental responsibility.

This product complies with international IEC and EN standards (IEC/EN 60947-2, IEC/EN 60898-1), ensuring reliable performance and safety in demanding commercial and industrial electrical systems. It is suited for a wide range of electrical protection applications where performance, safety, and durability are essential.

Offers reliable overload protection through thermal tripping mechanism. Compact housing design facilitating integration in limited spaces. Compliance with relevant international safety and performance standards. Supports industrial and commercial electrical system protection needs.

Designed for disassembly to promote sustainable maintenance and recycling. Enhanced safety with secure screw terminal connections. High breaking capacity of 10 kA for fault current interruption.

ABB System Pro M Compact S200M series circuit breakers are essential components for industrial, commercial, manufacturing, water treatment, and HVAC electrical panels. Their reliable performance ensures system continuity while protecting circuits from overloads and faults. Explore the ABB category for more electrical protection solutions at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The ABB System Pro M Compact S200M Miniature Circuit Breaker has a breaking capacity of 10 kA, allowing it to effectively interrupt fault currents.

This miniature circuit breaker is rated for 400V AC voltage, making it suitable for various industrial and commercial applications.

This unit features a 4-pole configuration, providing comprehensive circuit protection for multi-phase systems.

The dimensions of this circuit breaker are approximately 70 mm in width, 88 mm in height, and 75 mm in depth, allowing for compact installation.

It employs a thermal tripping mechanism, which helps prevent overload and overheating by disconnecting the circuit when necessary.

The device has an IP40 rating for protection against solid objects and an IP20 rating for limited dust ingress, ensuring adequate safety in various environments.

This model is designed for DIN rail mounting, which facilitates easy installation and maintenance in electrical panels.

This circuit breaker features Type B tripping characteristics, which are suitable for general applications with moderate inrush currents.

It uses screw type terminals, ensuring secure and stable electrical connections during operation and maintenance.

The device complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards, ensuring operational safety and performance reliability.

This miniature circuit breaker has a current rating of 20A, making it suitable for various electrical protection applications.

The country of origin for this model is Germany, indicating a standard of manufacturing quality associated with the region.
