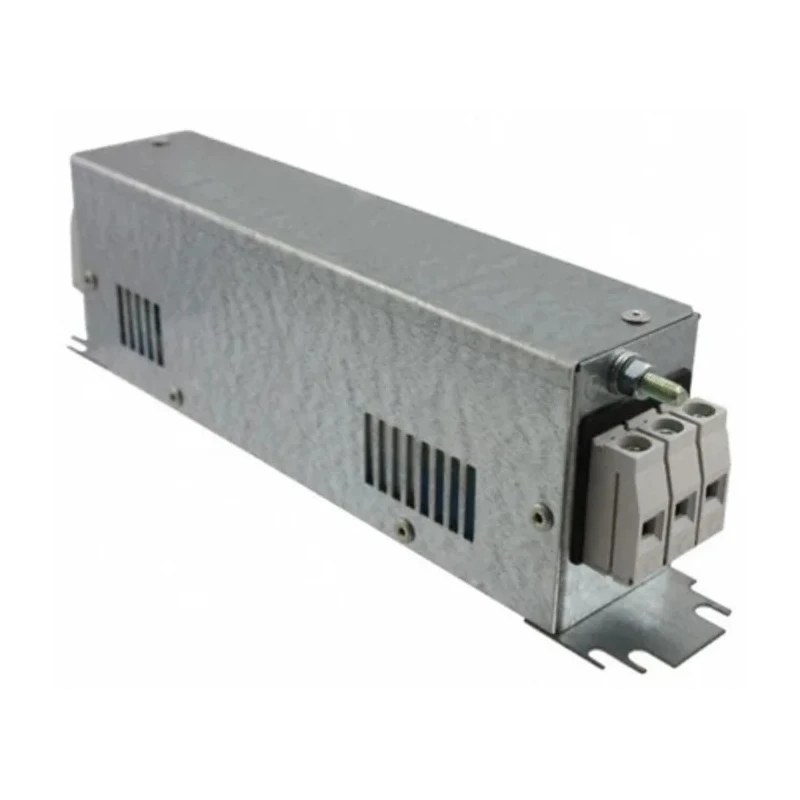

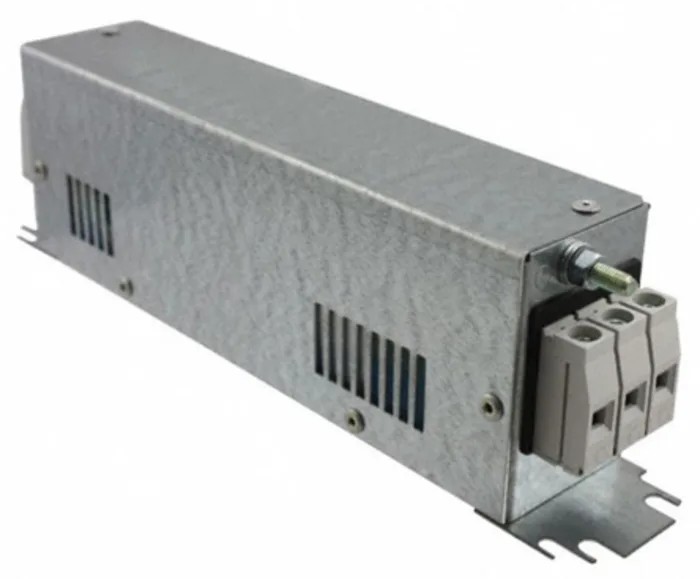

Schurter FMAC ECO 3 Phase Flange RFI Filter 16A 480V AC 60Hz Screw Termination FMAC-091C-1610

The Schurter FMAC-091C-1610 is a high-performance 3 phase flange RFI Filter designed to suppress electromagnetic interference in industrial equipment and photovoltaic applications. Rated for a maximum current of 16 A and voltage of 480 V AC at 60 Hz, it ensures reliable electrical noise mitigation in demanding electrical environments.

This single-stage filter (FMAC ECO series) features high symmetrical and asymmetrical attenuation with a wide frequency response ranging from 10 kHz to 300 MHz, effectively protecting sensitive electronic systems from mains interference and voltage spikes. Its robust flange mounting combined with screw clamp terminals provides secure and easy installation into power line circuits.

Electrical characteristics include a capacitance of 2.2 μF and inductance of 550 μH, optimized to ensure efficient power line noise filtration. The device maintains a low leakage current of 8.9 mA, meeting electrical safety guidelines, and operates reliably within a temperature range of -25°C to 100°C.

Mechanical dimensions of 70 mm height, 250 mm depth, and 45.5 mm length make it suitable for panel mounting and integration within electrical control cabinets and systems. The low resistance of 7.6 mΩ helps minimize power loss, which is quantified at 6 W for this model.

The FMAC-091C-1610 complies with international standards IEC 60939 and UL 1283, and holds certifications including VDE and UL approvals, ensuring adherence to safety and performance standards in various markets.

Designed for high symmetrical and asymmetrical attenuation from 10 kHz to 300 MHz. Single-stage filter optimized for photovoltaic and industrial use. Flange mount and screw clamp terminals provide secure and stable connections.

Compact size suitable for integration into electrical equipment enclosures. Compliant with IEC 60939 and UL 1283 standards, certified by VDE and UL. Low leakage current and resistance for efficient and safe operation. Wide operating temperature range accommodates diverse environments.

Robust construction for industrial application durability. Effective suppression of interference voltage from mains supply.

This Schurter FMAC ECO series product is ideal for engineers and technicians engaged in designing and maintaining photovoltaic systems, industrial electrical installations, and other applications requiring reliable EMI filtering solutions. Browse the Power Line Filters category on EnvMart for complementary product options.
