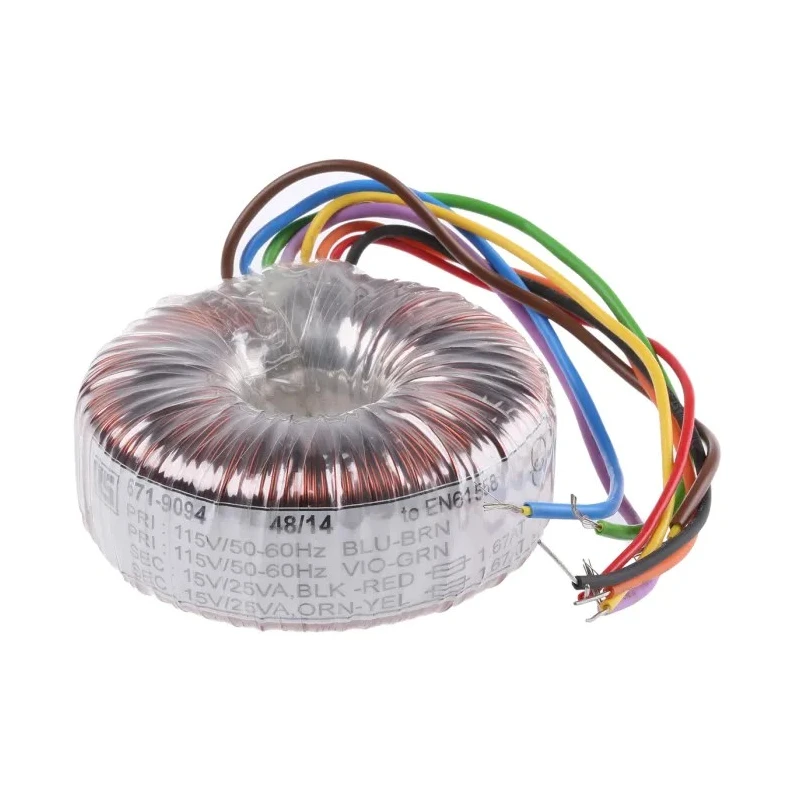

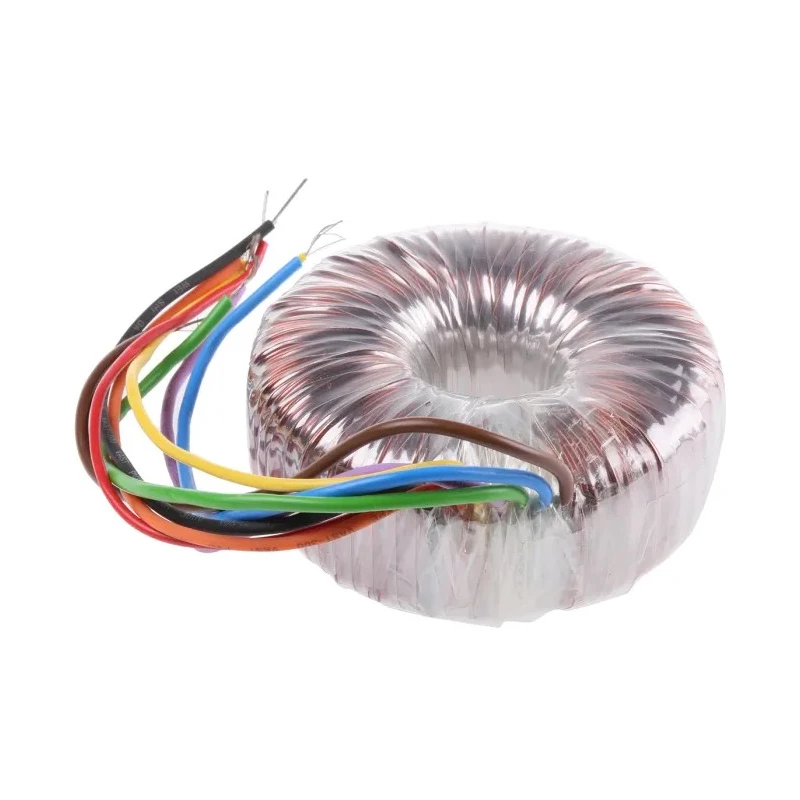

RS PRO 230 V ac 2 x 15 V ac Toroidal Transformer 50 VA 2 Output 671-9094

RS PRO model 671-9094 is a high quality Toroidal Transformer designed for industrial and electronic applications. It features a primary voltage of 230 V ac and dual secondary voltages of 2 x 15 V ac, capable of delivering 50 VA power across two outputs.

The transformer utilises copper conductor termination wires for secure and robust connections. Its compact physical dimensions of 80 mm diameter and 33 mm height make it ideal for use in designs where space is limited.

The open wound dual 115 V primary windings support operating frequencies ranging from 50 Hz to 60 Hz, ensuring compatibility with common AC power standards. A notable attribute is its extremely low level of radiated magnetic field and induced noise, which enhances performance in sensitive electrical environments.

With its secondary current rating of 1.667 A, this toroidal transformer is suitable for powering various industrial, laboratory, HVAC, and manufacturing equipment. Dual 115 Vac primary windings. Two independent secondary outputs 2 x 15 V ac.

Copper conductor termination wires for connection. Compact form factor with 80 mm diameter and 33 mm height. Low iron loss and minimal noise emissions. Operating frequency range 50 Hz to 60 Hz.

Please note that mounting hardware is not supplied with this unit and must be sourced separately. It is important to ensure that the fixing bolt does not short-circuit by contacting metal chassis elements simultaneously.

This RS PRO Toroidal Transformer is an optimal choice for electronic components and power supplies requiring reliable, quiet, and efficient voltage transformation. Explore the complete range of transformers and electronic components at EnvMart for all your industrial and laboratory needs.
