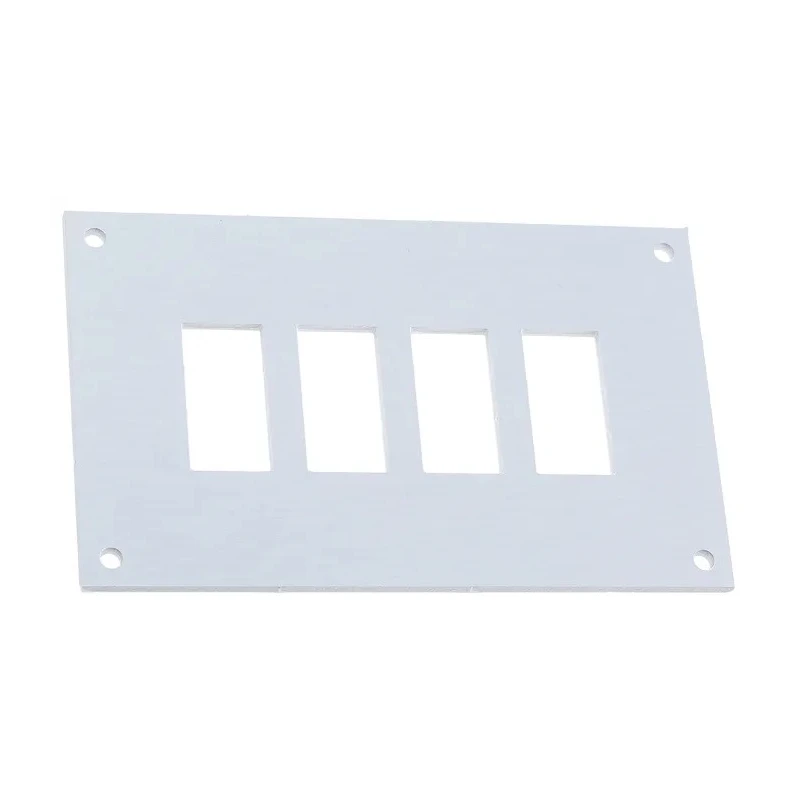

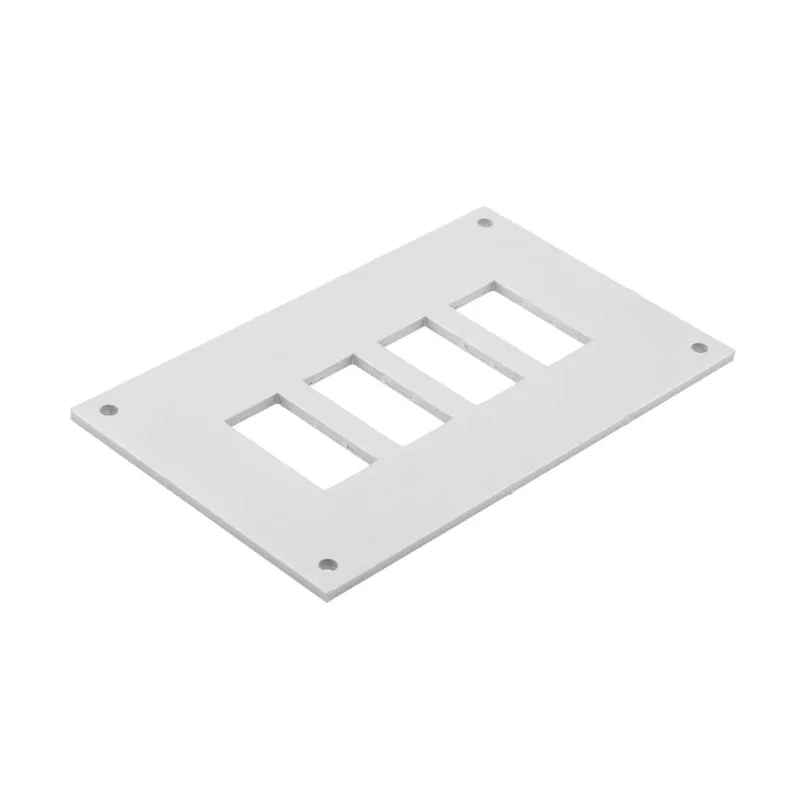

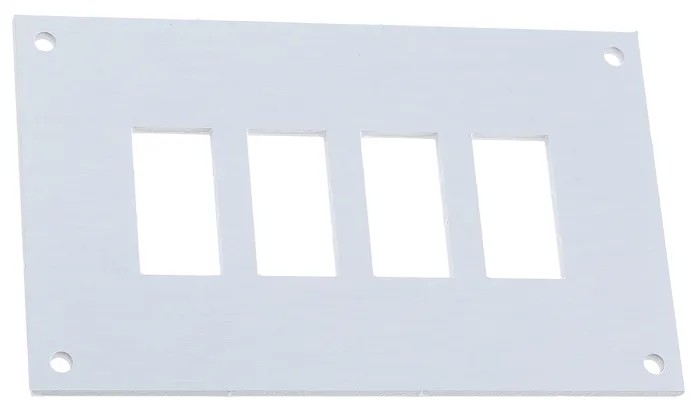

RS PRO Thermocouple Panel for Use with Up To 4 Fascia Sockets, RoHS Standard 397-1769

RS PRO 397-1769 Thermocouple Panel for use with up to 4 fascia sockets, manufactured with anodised aluminium faceplates, offers longevity and reliable performance in industrial and laboratory sensor applications. This product is RoHS compliant, ensuring adherence to environmental and safety standards.

The panel is compatible with both miniature and standard fascia panel mounting thermocouple sockets, making it versatile for various sensor configurations. The etch matt and satin anodised finishes improve corrosion resistance and provide a professional appearance suitable for industrial environments.

Standard height panels measure 66 mm while miniature panels are 45 mm high, accommodating different spatial requirements. The fixing holes are precisely placed with a diameter of 3.2 mm and a 5 mm offset from the edge corners to facilitate secure mounting.

The length of the panel is calculated based on the number of ways (n): for standard panels, the formula is (19 x n) + 31 mm; for miniature panels, (15 x n) + 25 mm. This allows customization depending on the number of fascia sockets required.

Typical use cases include industrial automation, sensor assemblies in manufacturing, HVAC monitoring systems, and laboratory instrumentation requiring thermocouple module panels. Constructed with anodised aluminium faceplates for durability.

Supports both miniature and standard thermocouple sockets. RoHS compliant ensuring regulatory standards. Standard height of 66 mm and miniature height of 45 mm available. Includes fixing holes sized at 3.2 mm diameter for secure installation.

Adjustable length based on the formula related to the number of ways. Explore more Sensor Accessories and thermocouple panels in the RS PRO range on EnvMart for reliable automation and control solutions.
