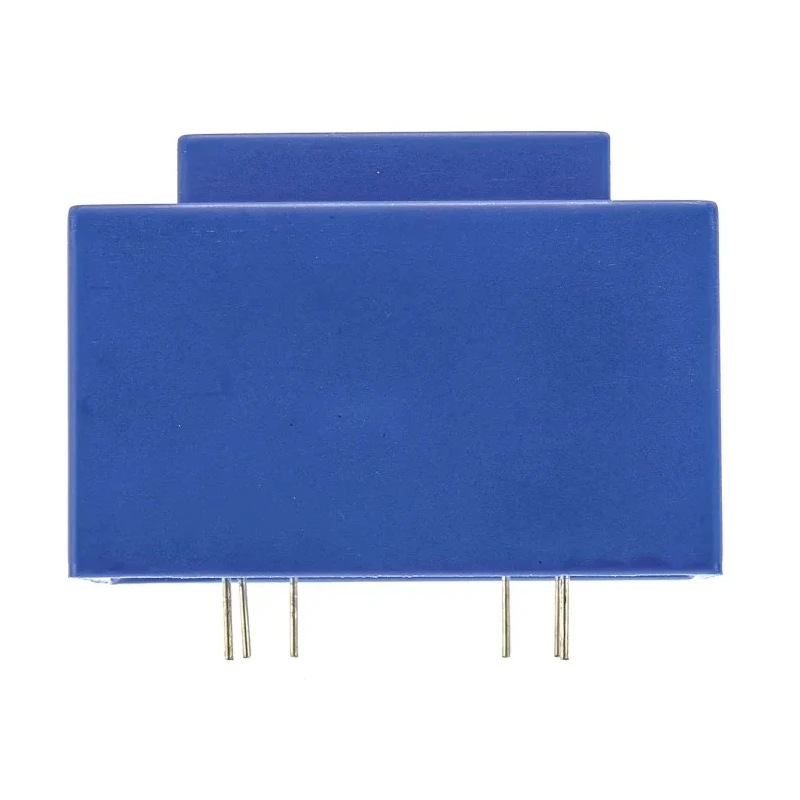

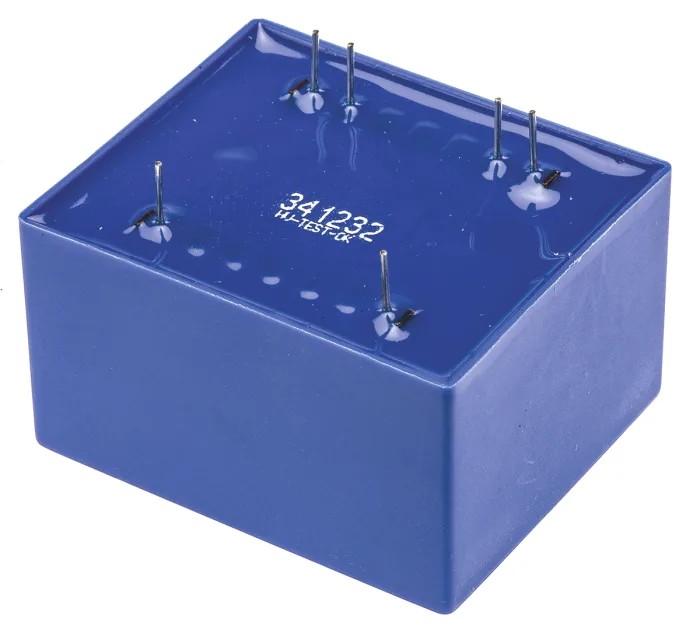

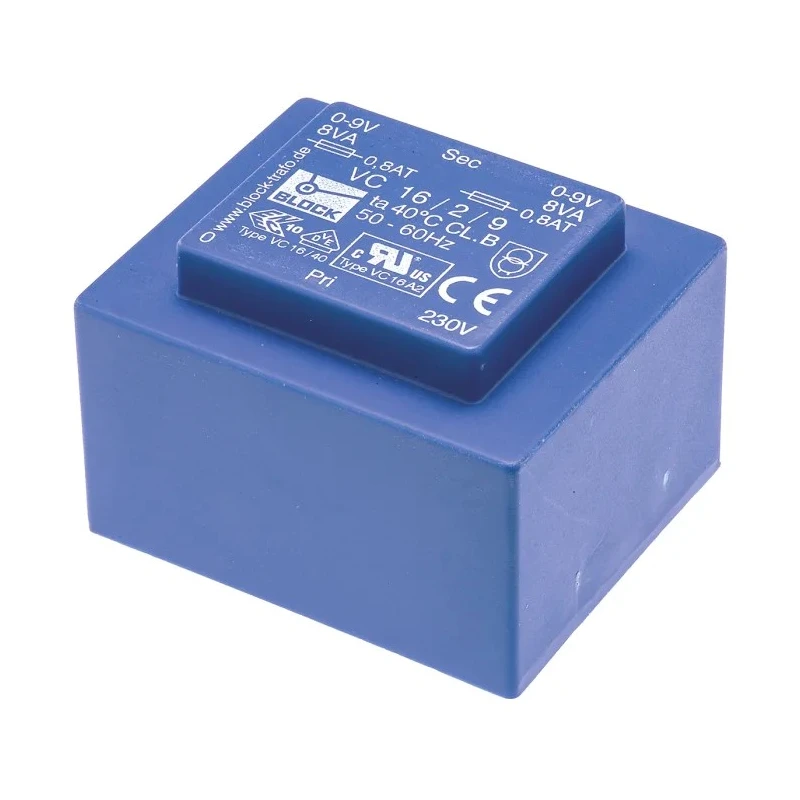

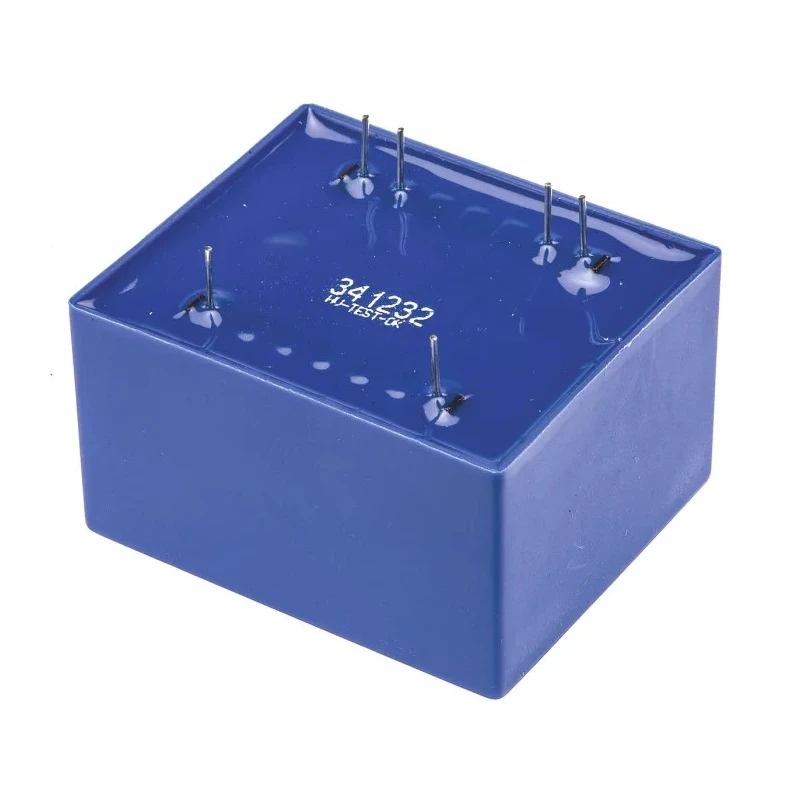

Block PCB Transformer 2 x 9 V AC 230 V AC Primary 16VA Pin Mount VC 16/2/9

Name: Block PCB Transformer 2 x 9 V AC 230 V AC Primary 16VA Pin Mount VC 16/2/9
Brand: Block
SKU: 392439
Price: 24.54 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	76%
Length	57mm
Model	VC 16/2/9
Depth	48mm
Gross Weight	420g
Width	39mm
Mount Type	Pin
Series	VC 16/2/9
Maximum Operating Temperature	40°C
Number of outputs	2
Primary Voltage	230 V ac
Secondary Voltage	2 x 9 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Designed for 230 V AC primary voltage operation.
Features two outputs with 2 x 9 V AC secondary voltage.
Pin mount type ensures secure PCB integration.
Operates efficiently with 76% efficiency rating.
Compact dimensions of 57 mm length, 39 mm width, and 48 mm depth.
Supports operating frequencies between 50 Hz and 60 Hz.
Maximum operating temperature rated at 40°C.
Constructed with vacuum resin moulded UL94-V0 rated insulation for safety.

Product Description

Block VC 16/2/9 PCB Transformer is a high-quality electrical transformer designed for mounting on printed circuit boards. Featuring a primary voltage rating of 230 V AC and two secondary outputs providing 2 x 9 V AC, this transformer is suitable for applications requiring dual outputs with 16VA power capacity. Its pin mount design facilitates easy and secure PCB integration.

The transformer is vacuum resin moulded to UL94-V0 rating, ensuring excellent electrical insulation and safety compliance. It exhibits low inter-winding capacitance and minimal radiated noise, making it ideal for sensitive electronic applications in industrial and commercial environments.

Operating within a frequency range of 50 to 60 Hz and a maximum temperature of 40°C, the VC 16/2/9 transformer provides stable performance. It meets stringent international standards including UL 5085-1/-2, CSA 22.2 No.66, IEC 61558-2-6, DIN EN 61558-2-6, ENEC (VDE), and cURus certifications. The robust construction and multiple fixing points enable secure and reliable mounting to printed circuit boards.

This transformer is widely used in industrial control systems, power supplies, automation equipment, and electronic devices requiring dual AC voltage outputs. Quality manufacturing in Germany guarantees compliance with international safety and performance standards.

Designed for 230 V AC primary voltage operation. Dual 2 x 9 V AC secondary voltage outputs for flexible connection options. Pin mount for efficient PCB integration and secure fixing. High efficiency at 76%, reducing energy loss during operation.

Compact dimensions suitable for space-constrained applications. Operating temperature up to 40°C ensures reliability in typical industrial conditions. Compliance with UL, CSA, IEC, ENEC, and VDE international standards. Vacuum resin moulded insulation for enhanced electrical safety.

Low noise and low capacitance design minimizes interference in electronic circuits. Manufactured in Germany with quality assurance. Explore more PCB Transformers and power supply components from trusted manufacturers at EnvMart for your industrial and electronic application needs.
