Kraus & Naimer 3 Position Knob Actuator Cam Switch 50A 690V Panel Mount C32.A270/GBA001.E

Free Delivery in India | Lowest Global Shipping Charges

Kraus & Naimer 3 Position Knob Actuator Cam Switch 50A 690V Panel Mount C32.A270/GBA001.E

Name: Kraus & Naimer 3 Position Knob Actuator Cam Switch 50A 690V Panel Mount C32.A270/GBA001.E
Brand: Kraus & Naimer
SKU: 392380
Price: 20824.84 INR
Availability: InStock



Category Cam Switch Brand Kraus & Naimer Condition New

Specifications

Country of Origin	India
Brand	Kraus & Naimer
Length	64mm
Model	C32.A270/GBA001.E
Depth	135.8mm
IP Rating	IP40
Width	64mm
Mount Type	Panel
Maximum Operating Temperature	55°C
Actuator Type	Knob
Number of Positions	3
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	IEC 60947-3
Mechanical Life	1000000Operations
Contact Voltage	690V
Contact Current	50A
Nominal voltage (all)	690V
Kraus & Naimer 3 Position, Knob Actuator 63 ABrand	Kraus & Naimer

Key Features

Equipped with a knob actuator for reliable switch operation.
Features 3 positions and 3 poles for versatile switching requirements.
Designed for panel mounting with screw-type terminals.
IP40 rated enclosure for protected electrical performance.
Operational temperature range from -25°C to 55°C ensures durability in varied environments.
Mechanical life rated for 1,000,000 operations for long-term reliability.

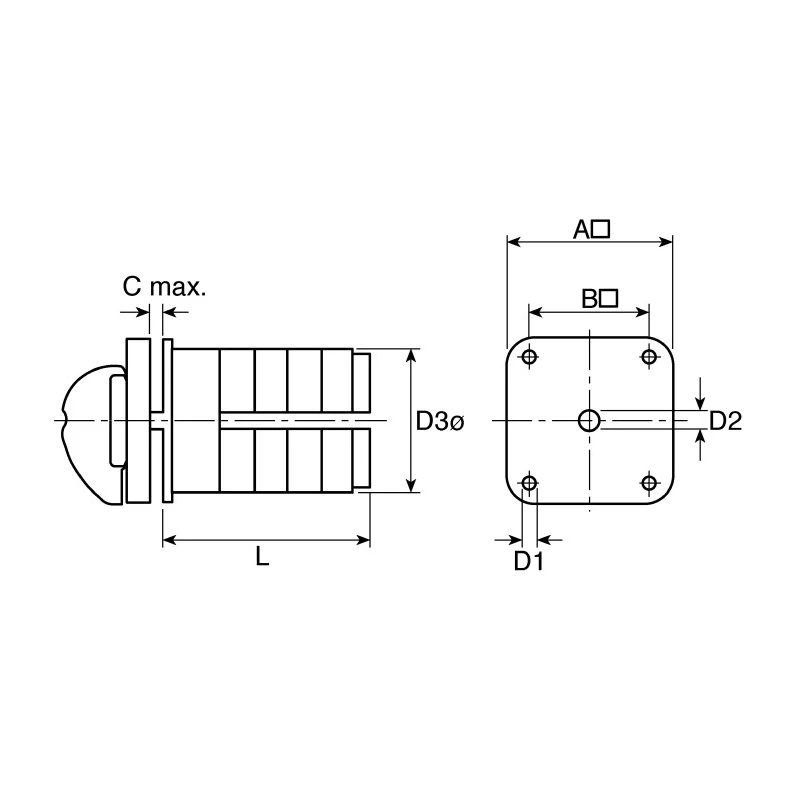

Compact dimensions of 64mm width, 64mm length, and 135.8mm depth for easy installation.
Complies with IEC 60947-3 and EN 60 947 standards ensuring industrial quality and safety.

Product Description

Kraus & Naimer C32.A270/GBA001.E 3 Position Knob Actuator cam switch is a high-quality electrical component designed for panel mounting applications, rated at 50A contact current and 690V contact voltage. It features a reliable knob actuator and provides three switching positions across three poles, allowing precise control in industrial automation and electrical distribution.

This cam switch supports a wide operational temperature range from -25°C to 55°C, making it suitable for varying environmental conditions. The device is IP40 rated, providing protection against solid objects while allowing easy installation in control panels.

The switch boasts a robust mechanical life of one million operations, indicating exceptional durability for continuous use in demanding industrial settings. Its compact design with dimensions of 64mm width, 64mm length, and 135.8mm depth facilitates straightforward integration into electrical panels.

Certified to IEC 60947-3 and EN 60 947 standards, this cam switch ensures compliance with international safety and performance requirements. The knob actuator type enhances operator ergonomics for dependable manual switching tasks.

Equipped with a knob actuator for precise and dependable switching. Offers three positions and three poles for extensive electrical control. Panel mountable with screw terminals for secure connectivity. Rated IP40 for protection against solid foreign objects.

Wide temperature operating range from -25°C to 55°C. Mechanical life of 1,000,000 operations allows for extended use. Compact dimensions suitable for varied panel configurations. Complies with IEC 60947-3 and EN 60 947 electrical safety standards.

Ideal for multi-step electrical switching and motor load applications. Nominal voltage set at 690V for diverse industrial uses.

This cam switch is well-suited for industrial automation, electrical distribution systems, HVAC controls, and manufacturing equipment requiring reliable manual switch control. Its standardized dimensions and approvals ease replacement and system design processes.
