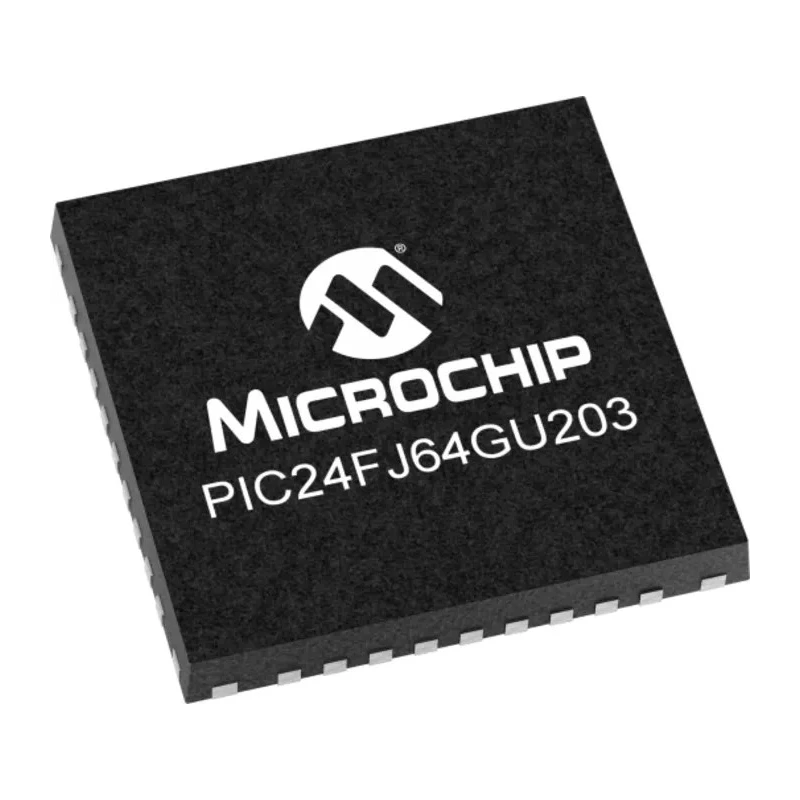

Microchip 16 bit PIC Microcontroller, 32 MHz, 64kB FLASH, 36-Pin UQFN PIC24FJ64GU203-I/M5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 900μm |
| Length | 5mm |
| Model | PIC24FJ64GU203-I/M5 |
| Width | 5mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | UQFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 36 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 26 |
| Analogue Comparators | 3 |
| Number of Timers | 4 |
| Instruction Set Architecture | Harvard |
| ADCs | 12 bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Features a 16-bit data bus and PIC device core architecture.
- Equipped with 8kB RAM and 64kB ECC Flash program memory.
- Maximum supply voltage is 5.5V with minimum 2.5V operability.
- Operates between -40°C to 85°C for broad temperature tolerance.
- Incorporates 26 programmable I/O pins and 4 timers for versatile control.
- Includes 12-bit ADCs, 3 analogue comparators, and 5-bit DACs for signal processing.
- Implemented with Harvard instruction set architecture providing up to 16 MIPS performance.
- Compliance with RoHS directives ensuring environmental standards.
Product Description
Microchip PIC24FJ64GU203-I/M5 is a 16 bit PIC microcontroller featuring a 32 MHz maximum clock frequency and 64kB FLASH memory in a 36-pin UQFN surface-mount package. Designed for embedded applications, it provides a balance of processing power and low power consumption suitable for industrial, commercial, and portable electronic systems.
This microcontroller utilizes a PIC device core with a 16-bit data bus width and offers 8kB RAM memory for program data. It has a supply voltage range from 2.5V to 5.5V and operates across a wide temperature range of -40°C to 85°C, making it reliable for harsh environments.
Equipped with multiple peripherals, including 12-bit ADCs, 3 analogue comparators, 5-bit DACs, and 4 timers, the PIC24FJ64GU203-I/M5 supports diverse signal acquisition and control tasks. Its 26 programmable I/O pins facilitate flexible interfacing with external devices.
The microcontroller employs Harvard instruction set architecture and supports full speed USB 2.0 host, device, and OTG functionality, making it highly adaptable for modern embedded designs. It also features ultra-low power operation modes that extend battery life for portable applications.
The compact 5mm x 5mm x 0.9mm UQFN package supports surface mount technology for efficient PCB assembly. This device is RoHS compliant, ensuring adherence to environmental and safety regulations.
16-bit PIC microcontroller with 32 MHz maximum clock. 64kB ECC Flash program memory and 8kB RAM. Supports 26 programmable I/O pins and 4 timers. Includes 12-bit ADCs, 3 comparators, and 5-bit DACs. Wide operating voltage range of 2.5V to 5.5V.
Operating temperature from -40°C to 85°C. Compact 36-pin UQFN surface-mount package. RoHS compliant for environmental safety.
This Microchip PIC microcontroller meets the demanding requirements of embedded industrial control, consumer electronics, and automotive applications. Its blend of performance, low power, and peripheral integration makes it an optimal choice for development engineers.
Explore more Microcontrollers and electronic components for your projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC24FJ64GU203-I/M5 is 32 MHz.
It operates within a temperature range of -40°C to 85°C.
This microcontroller is equipped with 64kB of FLASH program memory.
The supply voltage range for this model is from 2.5V to 5.5V.
It features 26 programmable I/O pins for flexible interfacing.
This microcontroller includes 12-bit ADCs for signal processing.
The PIC24FJ64GU203-I/M5 comes in a compact 36-pin UQFN package, measuring 5mm x 5mm x 0.9mm.
This microcontroller incorporates 4 timers for versatile control tasks.
It has 8kB of RAM memory for program data.
Yes, the PIC24FJ64GU203-I/M5 is RoHS compliant, ensuring adherence to environmental standards.
It employs a Harvard instruction set architecture.
The country of origin for the PIC24FJ64GU203-I/M5 is India.
