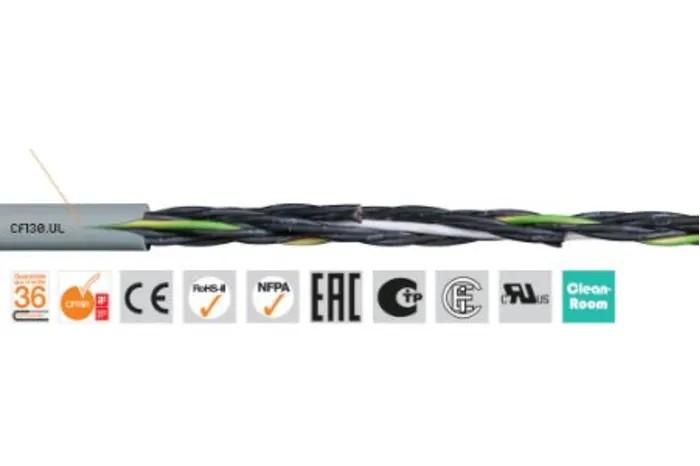

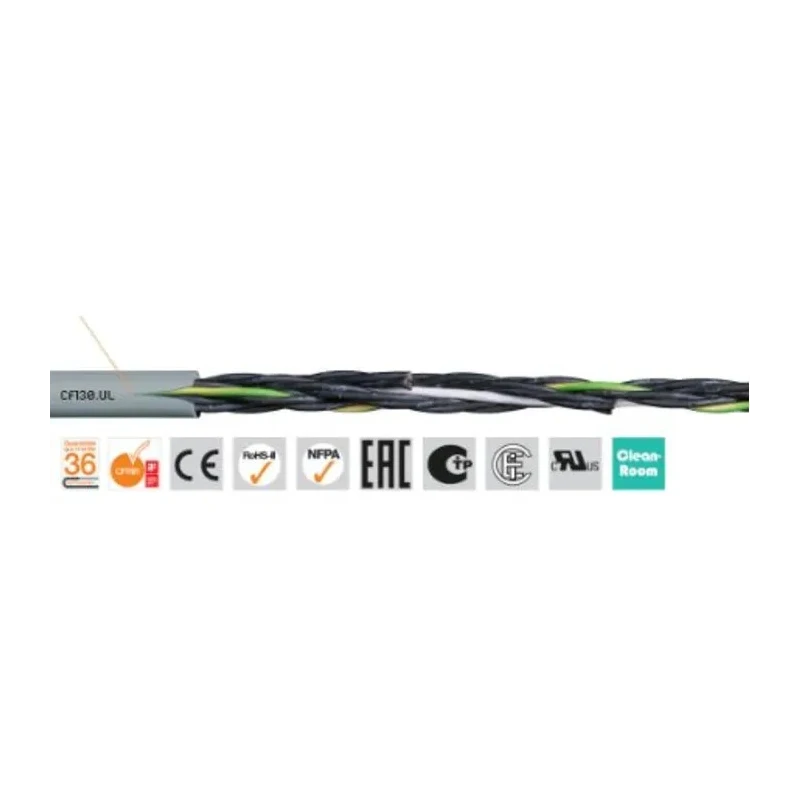

Igus Chainflex CF130.UL Control Cable 4 Cores 0.75mm² 18 AWG Unscreened Grey Thermoplastic Elastomer CF130.07.04.UL (10m)

Free Delivery in India | Lowest Global Shipping Charges

Igus Chainflex CF130.UL Control Cable 4 Cores 0.75mm² 18 AWG Unscreened Grey Thermoplastic Elastomer CF130.07.04.UL (10m)

Name: Igus Chainflex CF130.UL Control Cable 4 Cores 0.75mm² 18 AWG Unscreened Grey Thermoplastic Elastomer CF130.07.04.UL (10m)
Brand: IGUS
SKU: 391537
Price: 7.23 USD
Availability: InStock



Category Control Cable Brand IGUS Condition New

Specifications

Country of Origin	Germany
Voltage	300, 500V
Brand	Igus
Model	CF130.07.04.UL (10m)
Cable Length	10m
Series	Chainflex CF130.UL
Outside diameter	6.5mm
Maximum Operating Temperature	70°C
Number Of Cores	4
Conductor Material	Copper
Minimum Operating Temperature	-15°C
Jacket Material	Thermoplastic Elastomer
Standards/Approvals	EN, CE
Jacket Colour	Grey
Fire Behaviour	Flame Retardant
American Wire Gauge	18AWG
Screened/Unscreened	Unscreened
Conductor Type	Stranded
Cable CSA	0.75mm²

Key Features

Designed for medium duty control cable applications with high abrasion resistance.
Features a patented core bundle design ensuring small bend radii ideal for e-chain and flexible use.
Oil resistant Class 4 sheath supports excellent resistance to oil and bio-oil.
Rated for 300/500 V suitable for control and automation systems.
Flame retardant jacket complies with IEC 60332-1-2 and related standards.
Operating temperature range from -15°C minimum up to 70°C maximum.
Stranded copper conductor material enhances flexibility and conductivity.
Grey thermoplastic elastomer jacket provides chemical and oil resistance.

Product Description

Igus brand Chainflex CF130.UL control cable model CF130.07.04.UL (10m) is a 4-core cable with 0.75mm² conductor size (18 AWG), featuring an unscreened construction with a grey thermoplastic elastomer jacket designed for industrial control applications. This cable is optimized for medium duty use, particularly in automation and machinery requiring flexible, abrasion-resistant cables suitable for continuous dynamic movement such as in e-chain cable carriers.

The patented bundled core design provides an exceptionally small bending radius, allowing space-saving installation that supports long service life and a reduction in downtime. The Class 4 oil-resistant jacket protects against many industrial oils and bio-oils, making it suitable for harsh chemical environments.

This cable is rated for 300 volts to 500 volts, supporting a wide range of control applications. It operates reliably within temperatures from -15°C to 70°C. The stranded copper conductors ensure excellent flexibility and electrical performance. The armoured outdoor-rated design further enhances its mechanical durability.

Compliance with international standards such as EN, CE, UL/CSA style 10493 and 20200, NFPA 79-2018, IEC flame retardant classifications, and RoHS-II lead-free designation assures quality and safety across industrial, manufacturing, packaging, wood and stone processing, and material handling equipment applications.

Manufactured in Germany, the CF130.07.04.UL (10m) cable is also silicone-free, certified for clean room class ISO 1, and backed by a comprehensive chainflex guarantee supported by extensive testing under real-world dynamic conditions.

Patented bundle design ensures small bend radius and long cable life. Thermoplastic elastomer sheath offers excellent abrasion and oil resistance. Flame retardant jacket meets IEC 60332-1-2 and other certifications. Rated for 300/500 V control voltage applications.

Operating temperature range from -15°C to 70°C for industrial reliability. Stranded copper conductors for flexibility and conductivity. Armoured cable construction enhances mechanical protection. Compliant with EN, CE, UL/CSA, NFPA, RoHS, and clean room standards.

Ideal for automation, packaging, machinery, handling, and e-chain systems. Manufactured to high quality standards in Germany. Explore more high-quality Control Cables and electrical wiring solutions in the Electronics & Electricals category on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for 300/500 volts, making it suitable for various control and automation applications.

The maximum operating temperature for this cable is 70°C, allowing it to perform reliably in various industrial environments.

This control cable features 4 cores, providing versatility for different wiring configurations in control systems.

The cable is constructed with stranded copper conductors and a grey thermoplastic elastomer jacket, offering excellent flexibility and chemical resistance.

The outside diameter of this control cable is 6.5mm, which supports space-saving installations.

Yes, the jacket of this cable is flame retardant and complies with IEC 60332-1-2 and related standards.

The minimum operating temperature for the CF130.UL control cable is -15°C, enabling its use in colder environments.

This cable complies with several international standards, including EN, CE, and RoHS, ensuring quality and safety in industrial applications.

It is designed for medium duty control applications, particularly in automation, machinery, and e-chain systems requiring flexible and abrasion-resistant cables.

This model uses stranded copper conductors, which enhance flexibility and conductivity for effective electrical performance.

The CF130.UL control cable is unscreened, which is suitable for specific applications where electromagnetic interference is not a concern.

This model is manufactured in Germany, ensuring adherence to high quality standards in its production.
