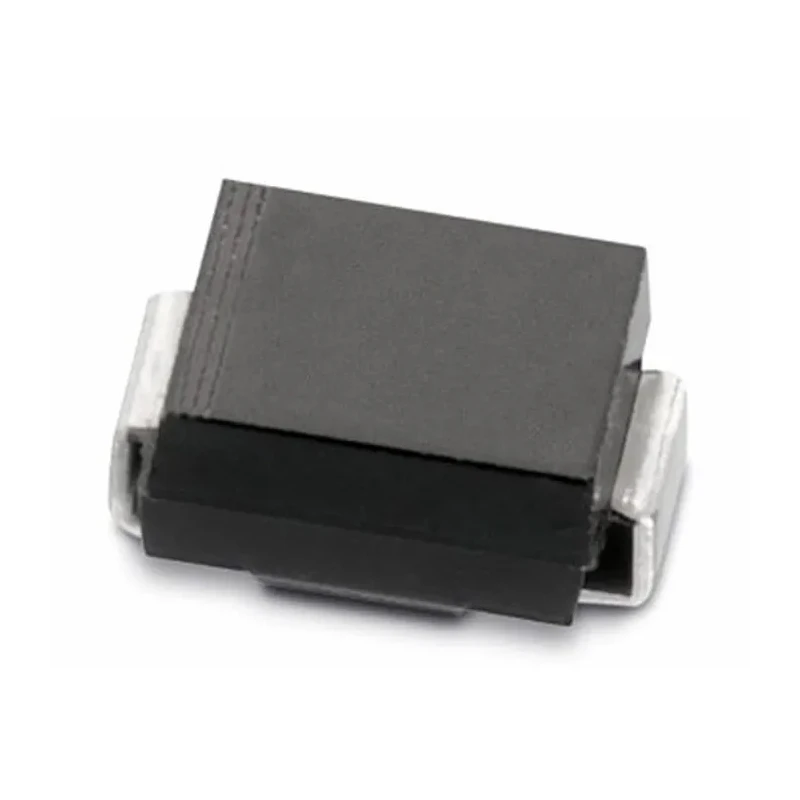

Wurth Elektronik 1-Element Uni-Directional TVS Diode, 400 W, 2-Pin DO-214 824500301 / SMAJ30A

Wurth Elektronik 824500301 / SMAJ30A is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed for industrial and electronic protection applications. It offers a robust 400 W peak pulse power dissipation rating suitable for defending circuits against voltage spikes and transient surges. The diode has a low profile DO-214 surface mount package with 2 pins, making it ideal for modern PCB assembly where space efficiency is critical.

This TVS diode features a single diode configuration with a uni-directional voltage suppression capability, delivering a minimum breakdown voltage of 35.05 volts and a clamping voltage of 48.4 volts. It ensures fast response times through a glass passivated junction and exhibits a very low leakage current of 1 microampere, maintaining circuit efficiency.

The device operates reliably under a wide temperature range from -65°C up to 150°C, making it suitable for harsh environmental conditions often encountered in industrial, automotive, and commercial electronics applications. The maximum peak pulse current rating is 40 amperes, allowing it to absorb large transient surges and safeguard connection points, power supplies, and sensitive semiconductor devices.

Its compact dimensions of 4.24 mm length, 2.67 mm width, and 2.14 mm height make it practical for dense circuit designs. The TVS diode series WE-TVSP from Wurth Elektronik ensures compliance with modern electronic standards while offering durable and high-quality performance.

Single diode configuration designed for uni-directional voltage suppression. Minimum breakdown voltage of 35.05 V for reliable protection against transients. Surface mount package type DO-214 with compact dimensions. Clamping voltage rating of 48.4 V to limit voltage spikes effectively.

Operates reliably between -65°C and 150°C temperature range. Handles maximum peak pulse current of 40 A for transient events. Low maximum reverse leakage current of 1 μA minimizes power loss in circuits. Glass passivated junction ensures fast response time for transient voltage suppression.

Ideal for protecting sensitive electronic circuits in industrial and commercial applications. Manufactured in China with a robust and compact design.

This Wurth Elektronik TVS Diode is essential for transient voltage protection in semiconductor circuits, industrial control systems, and power supplies. It provides peace of mind for engineers needing robust electrostatic discharge (ESD) and transient over-voltage protection in environments such as manufacturing, automation, and automotive electronics.
