Lapp H05Z-K Series Grey 1 mm² Hook Up Wire Low Smoke Zero Halogen Cross Linked Insulation 100 m 4725063

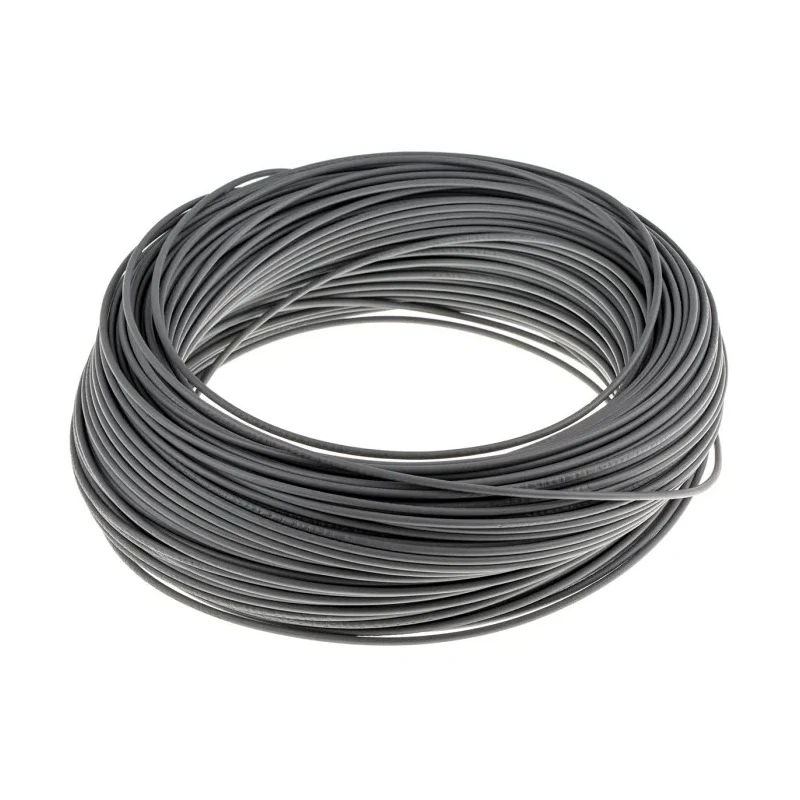

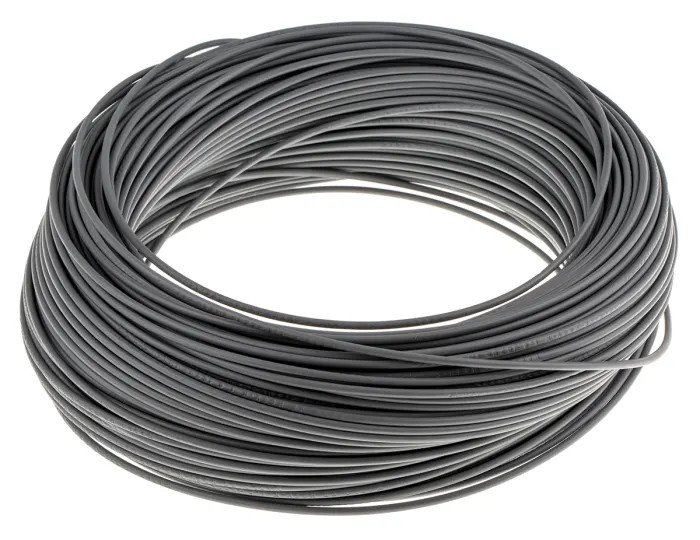

Lapp 4725063 Hook Up Wire is a single core electrical wire with a 1 mm² cross sectional area and low smoke zero halogen (LSZH) cross linked insulation designed for use in internal wiring applications. This grey cable extends 100 meters in length and supports operating voltages of 300 and 500 volts, making it suitable for a variety of electrical and automation tasks.

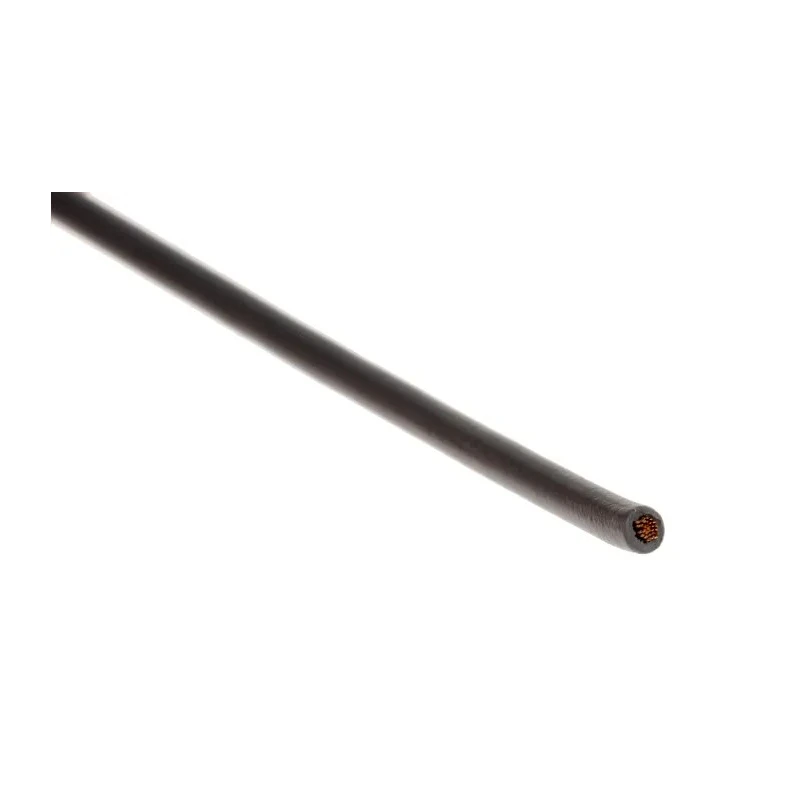

Constructed from bare copper conductors, it ensures excellent conductivity and reliability. The cable is designed with an outside diameter of 2.9 mm and operates safely at temperatures ranging from -40°C to a maximum of 90°C. The LSZH jacket provides low smoke density and halogen-free characteristics, enhancing safety by reducing toxic fume emissions in the event of fire.

This wire conforms to rigorous standards including EN 50525-3-41, EAC, and CE certifications, and is flame retardant as per IEC 60332-1-2 requirements. The cable is harmonized under the H05Z-K series and is suitable for use in dry indoor environments including conduits, control cabinets, switchgear cabinets, and distribution boxes.

It is ideal for industrial, commercial, and infrastructure uses such as installation in underground railways, ships, power plants, and nuclear facilities where fire safety and reduced smoke hazards are critical.

The product supports installation with compatible accessories including the SKINTOP CLICK range of cable glands for efficient termination and management in control cabinets, ensuring secure mechanical and environmental protection for wiring installations.

The wire features a cross linked LSZH insulation ensuring low smoke and halogen free properties. It supports voltage ratings of 300 and 500 volts for versatile applications. The conductor is made of bare copper, providing excellent conductivity.

The cable is single core with a 2.9 mm outside diameter and a temperature rating up to 90°C. Suitable for indoor use in control cabinets, switchgear, and installation ducts. Complies with EN 50525-3-41, CE, and EAC standards ensuring reliable quality and safety.

It is flame retardant according to IEC 60332-1-2 and has low smoke density and halogen free certification.
