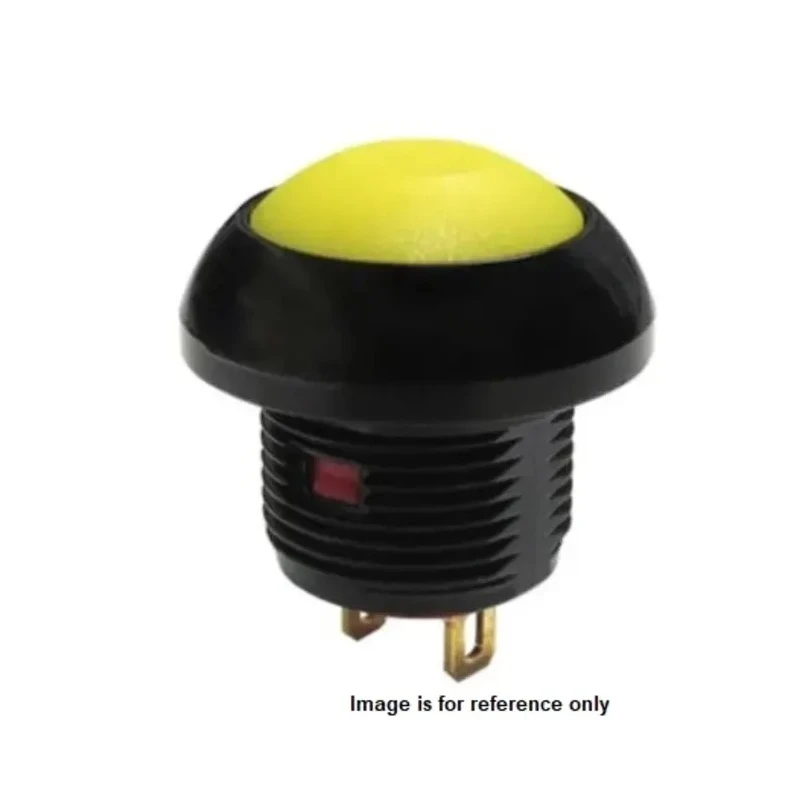

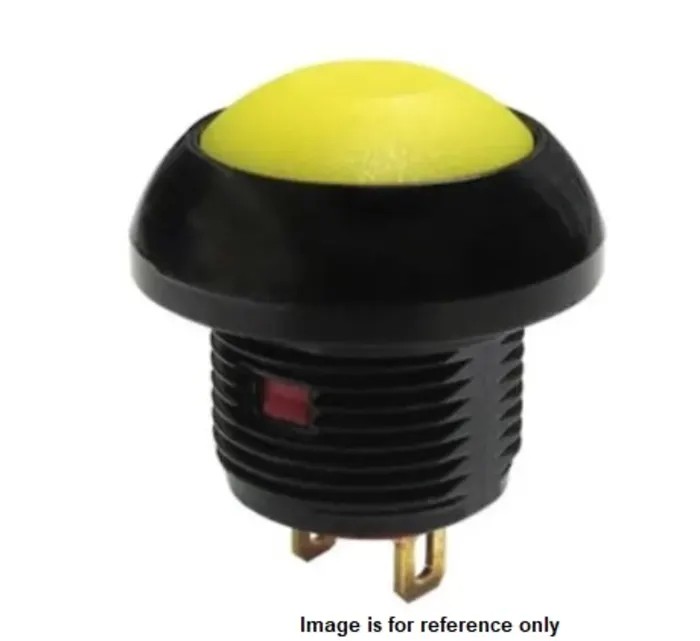

RS PRO Push Button Switch Momentary Panel Mount SPST Red LED IP67 36V DC 250V AC 209-9107
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 209-9107 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -35°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | RS |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Contact DC Voltage | 36V dc |
| Actuator Style | Flat |
| Switch Contact Current | 125mA |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a flat red actuator with momentary operation.
- It has a panel mounting type suitable for cutouts of 13.6 mm diameter.
- Rated IP67 for dust-tight and water immersion protection.
- Operating voltage rating of 36 V DC and 250 V AC.
- Contact current rated at 125 mA with gold over silver-plated contacts for durability.
- Operating temperature range from -35°C to 85°C ensures wide environmental compatibility.
- Terminal type is solder lug for secure electrical connections.
- Mechanical life rated at one million cycles for long-term reliability.
Product Description
RS PRO 209-9107 is a sub-miniature push button switch designed for momentary operation with a panel mount suited for a 13.6 mm cutout. Featuring a red flat dome actuator with integrated red LED illumination, this switch offers both visual signaling and dependable electrical control. It supports SPST contact configuration and is IP67 rated, making it suitable for industrial and harsh environment applications including test equipment, telecommunications, and handheld appliances.
This push button switch operates at 36 V DC and 250 V AC with a contact current rating of 125 mA, utilizing gold over silver-plated contacts to ensure low resistance and long-lasting performance. Designed to withstand severe operating conditions, it functions reliably between -35°C and 85°C. The solder lug terminals provide strong connections for secure wiring.
Constructed from high-quality Polyamide 6/6, the actuator is resilient and ergonomically designed as a dome-style flat cap for effective user interaction. It is available with multiple actuator colors and LED illumination options to fit diverse application requirements. The mechanical endurance exceeds one million cycles, ensuring durability in demanding industrial, laboratory, and manufacturing environments.
This model supports panel mounting via threaded or snap-in design, accommodating panel thicknesses from 1.5 mm to 4 mm. Typical applications include machine control interfaces, test equipment activation, telecommunications devices, and network appliances. The product's IP67 rating certifies it against dust ingress and water immersion, suitable for outdoor or factory floor use.
The switch’s compact size and IP protection make it ideal for integration into control panels and electronic devices. The red LED indicator provides clear visual feedback during operation. Sub-miniature design allows installation in tight spaces while maintaining robust performance.
Explore more in the Push Button Switch category for complementary industrial electrical components available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at 36 V DC and 250 V AC.
It has an IP67 rating, making it dust-tight and protected against water immersion.
The contact current rating is 125 mA.
It operates within a temperature range of -35°C to 85°C.
It features solder lug terminals for secure electrical connections.
The required panel cutout size is 13.6 mm in diameter.
The mechanical life is rated for over one million cycles.
It has a flat actuator style with a red dome cap.
This model is suitable for applications such as machine control interfaces, test equipment activation, and telecommunications devices.
It uses a Single Pole Single Throw (SPST) configuration.
The actuator is constructed from high-quality Polyamide 6/6.
Yes, it features a red LED for visual signaling during operation.
