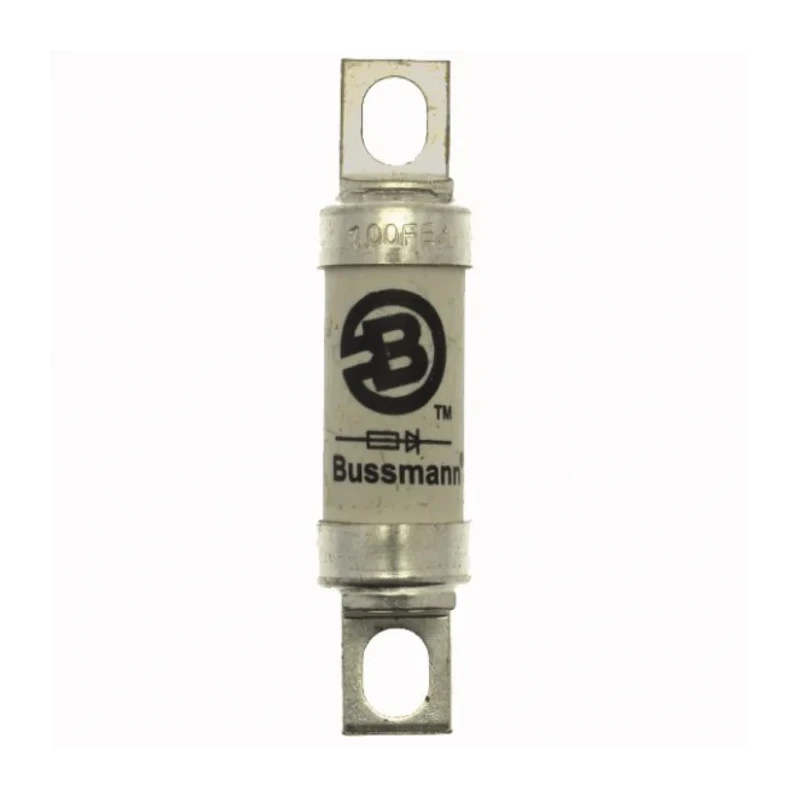

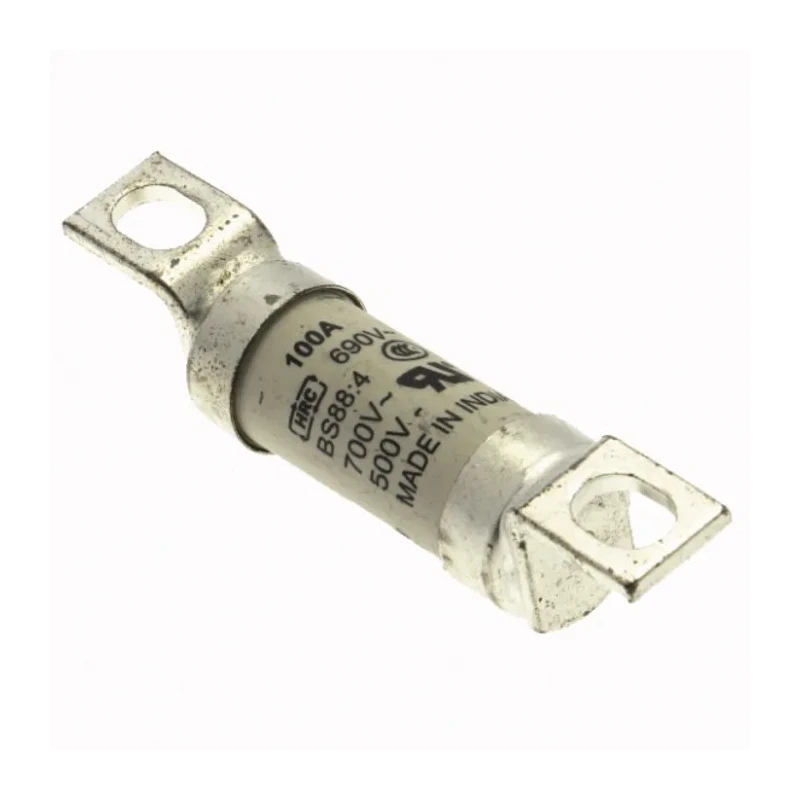

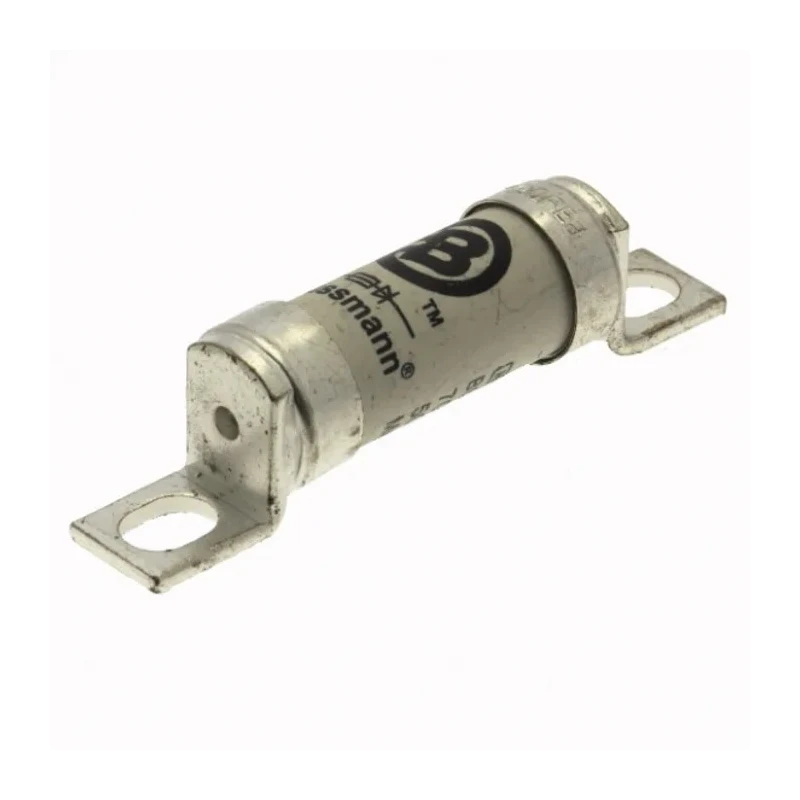

Eaton 100A High-Speed Bolted Tag Fuse FE 690V AC, 63.5 mm 100FE

Eaton 100FE bolted tag fuse is a high-speed industrial fuse rated at 100 amperes and 690 volts AC, designed to safeguard electrical equipment and wiring against short circuits and overloads. Its compact, offset bolted tag design with 63.5 mm fixing centres makes it suitable for applications where space is limited.

The fuse body measures 17.1 mm in diameter and 48 mm in length with an overall length of 77 mm, providing a reliable physical footprint for various installation environments. Its high rupture capacity ensures fast and effective protection for industrial equipment, power converters, and DC bus configurations.

This fuse features low arc voltage and minimal energy let-through, resulting in reliable performance without nuisance tripping during transient over-voltages. The offset tag orientation supports easier mounting in panel and machinery settings. Typical uses include protection of DC drives, power converters, and reduced voltage starters, widely used in industrial and manufacturing settings.

Environmentally compliant with RoHS and CE standards, the Eaton 100FE fuse is manufactured in India, guaranteeing quality and consistent performance. It offers durable cycling capability, minimizing maintenance and replacement frequency in industrial control and automation systems.

This bolted tag fuse features a standard FE fuse size with a body diameter of 17.1 mm and length of 48 mm. It provides high rupture capacity and fast operation to protect against short-circuit damage. The offset tag orientation allows use in compact machinery and space-restricted installations.

Its low arc voltage characteristics enable simple and quick fuse replacement. Key applications include DC drives, power converters, common bus systems, and reduced voltage starters. The fuse is RoHS and CE compliant, ensuring environmental and electrical safety standards.

Compact and durable, it is suitable for both AC and DC drive protection scenarios. Manufactured in India, this fuse delivers reliable cycling and long service life. Explore Eaton fuses and related electrical components for advanced industrial automation and electrical protection solutions at EnvMart.
