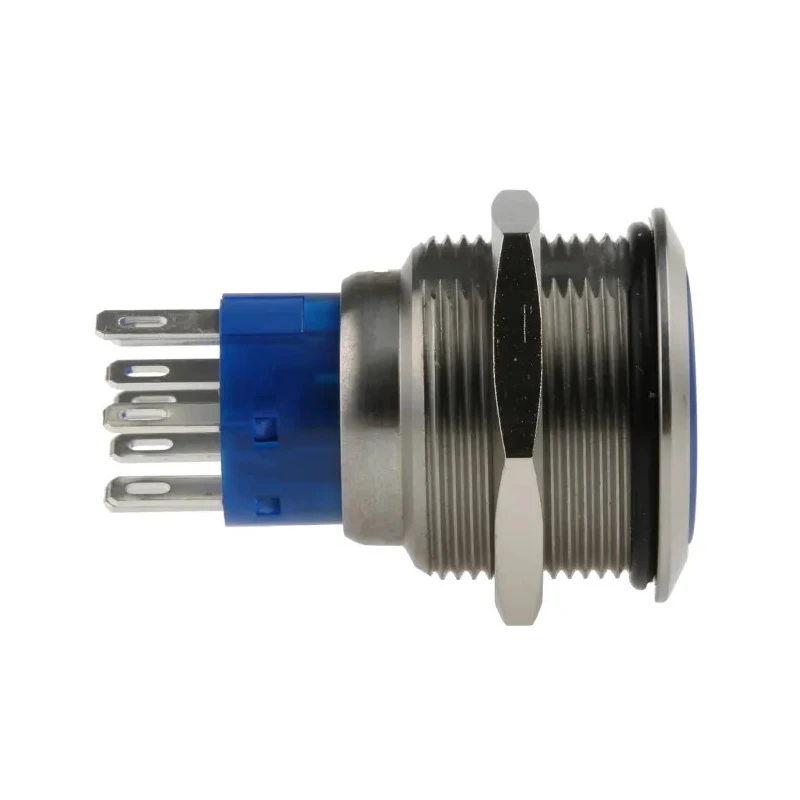

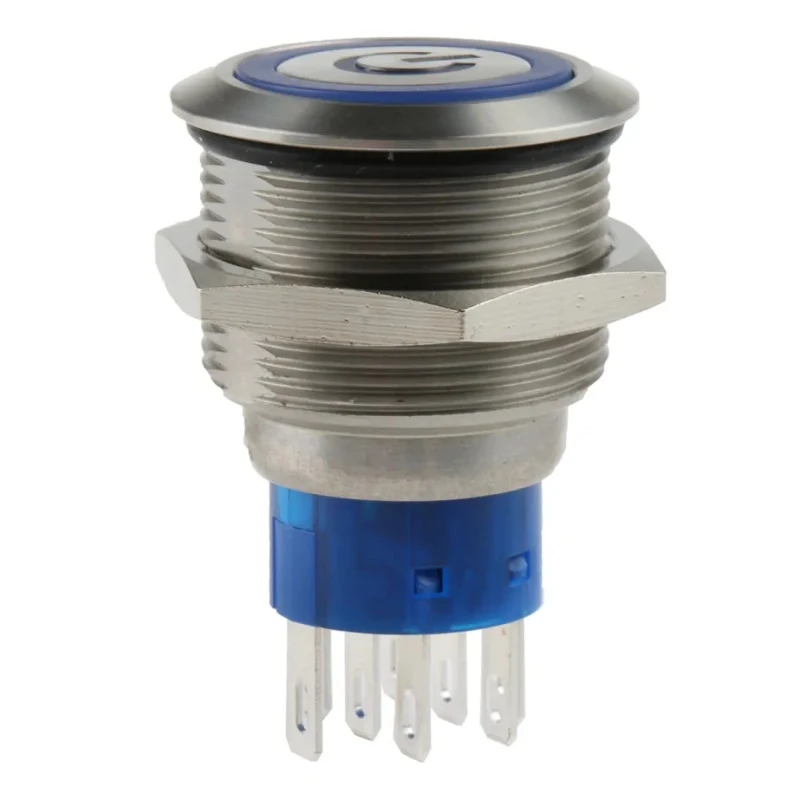

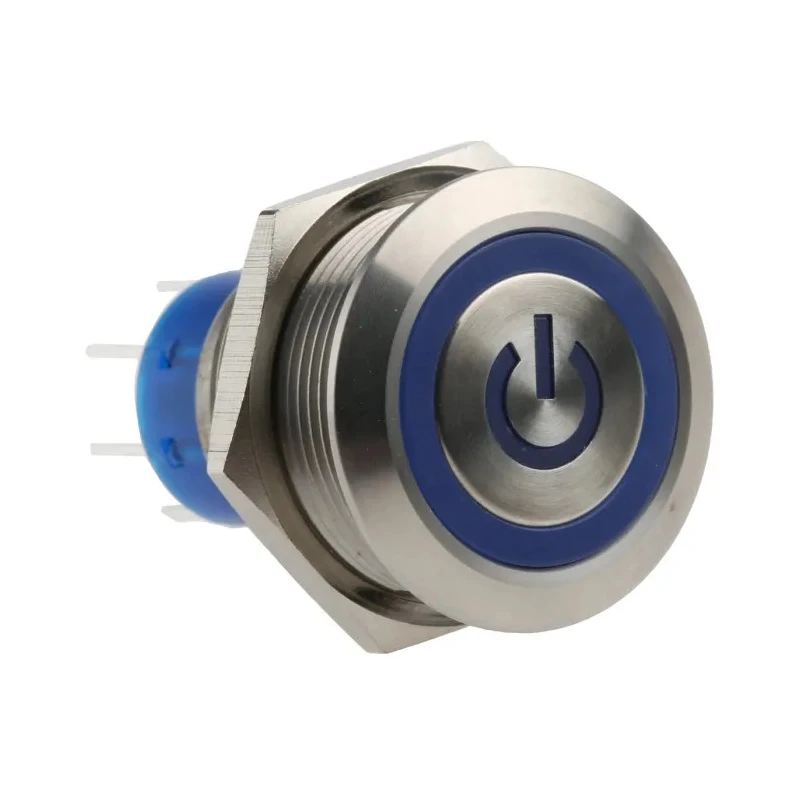

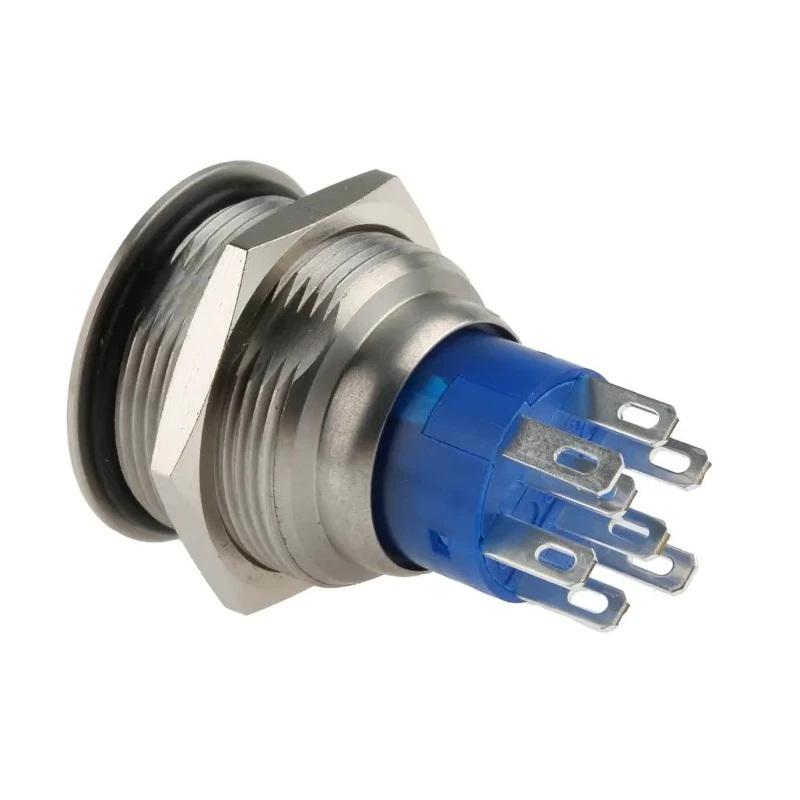

RS PRO Illuminated Push Button Switch Momentary Panel Mount DPDT Blue LED IP67 22.2 mm Cutout 250 V 3, 5A 175-9279

RS PRO 175-9279 is an illuminated push button switch designed for momentary operation with a double-pole double-throw (DPDT) contact configuration. Manufactured for panel mounting, it requires a 22.2 mm cutout size and features a flat actuator style. This push button switch is equipped with a blue LED illumination and is rated IP67, providing strong resistance to water and dust ingress, making it suitable for demanding industrial environments.

The switch operates at 250 V ac and 250 V DC contact voltages with a current rating of 3 and 5 amperes, allowing reliable switching for various electrical control applications. It supports an operating temperature range from -20°C to 70°C, ensuring dependable performance in both cold and warm conditions.

The RS PRO MPB22 series is recognized for its compliance with international standards including cULus, EC18, EN18, and UL 94 V-0/V-2 ratings, reflecting its quality and safety. Constructed with corrosion-resistant metals, these anti-vandal switches are lightweight and provide excellent heat dissipation.

Widely used across industrial control instruments, medical devices, security monitoring equipment, vehicle peripheral systems, and audio-visual gear, this switch delivers durable performance in diverse settings. Its IP67 rating and robust build make it a preferred choice for environments requiring vandal resistance and high reliability.

Package details include the single illuminated push button switch, ready for panel installation. It is suitable for industrial, laboratory, medical, and commercial use where robust and visible control switching is necessary.

This push button switch has a 22.2 mm panel cutout for tight mounting integration. It features blue LED illumination for clear operational indication. The switch contacts support current ratings of 3 and 5 amperes at 250 V ac/DC.

IP67 ingress protection ensures reliable use in harsh environments. Standards compliance includes cULus, EC18, EN18, and UL certifications for safety assurance. Flat actuator design provides effective user operation with tactile feedback.

Operating temperature range from -20°C to 70°C suits indoor and outdoor applications. Manufactured to high quality standards in Taiwan, Province Of China. Explore more RS PRO products and reliable industrial Push Button Switches at EnvMart for your automation and control panel requirements.
