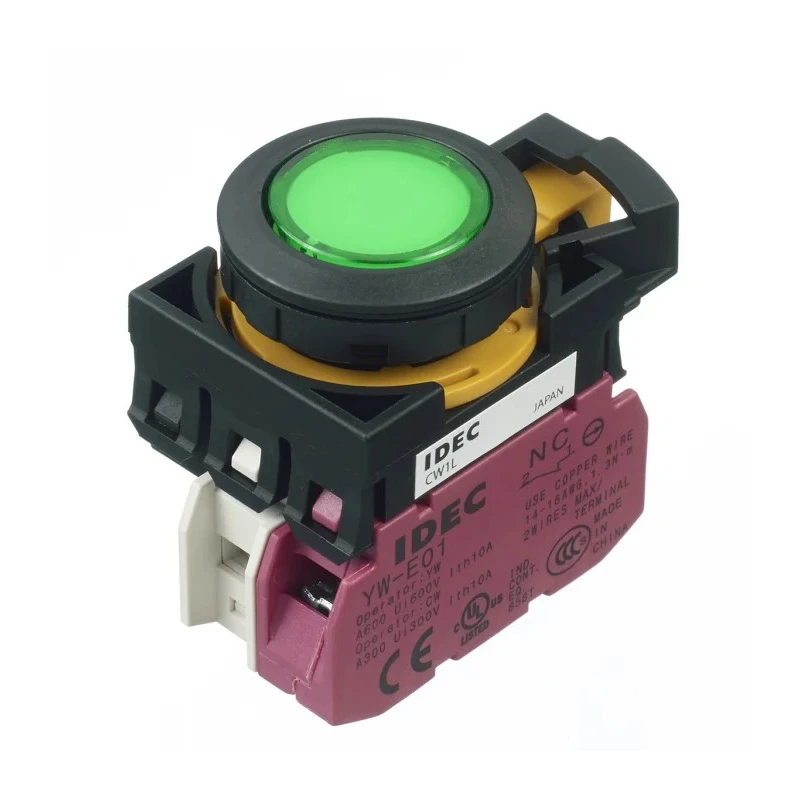

Idec CW Series Illuminated Momentary Push Button Switch Panel Mount 22 mm Cutout SPST Green LED IP65 CW1L-M1E01QM4G
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Idec |
| Model | CW1L-M1E01QM4G |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | CW |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Switch Contact Current | 6A |
Key Features
- Features a momentary SPST switch operation design.
- Illumination is provided by a green LED for clear signaling.
- Designed for panel mounting with a 22 mm cutout diameter.
- Robust IP65 rating ensures protection against dust and water jets.
- Operates reliably between -25°C and 55°C temperature range.
- Utilizes screw terminal connections for secure wiring.
- Compact design with 34.5 mm depth behind panel.
- Meets international standards including IEC 60947-5-1 and UL508 certifications.
Product Description
Idec CW1L-M1E01QM4G Illuminated Momentary Push Button Switch is engineered for industrial and commercial applications where reliable operator control is required. This panel-mounted switch incorporates a stylish CW series design that minimizes accidental operation and reduces dust accumulation on the surface. The flush silhouette and locking removable contacts provide safety and ease of maintenance.
The switch features a momentary Single Pole Single Throw (SPST) configuration and provides green LED illumination for visual indication. It is suitable for panel cutouts of 22 mm diameter and offers robust protection with an IP65 rating, making it ideal for environments exposed to dust and water jets.
With a compact 34.5 mm depth behind the panel, it can easily be integrated into electrical panels, control stations, or industrial machinery interfaces. The switch specifies a contact current rating of 6 A, operating within a temperature range from -25°C to 55°C, ensuring durability and consistent performance under varying conditions.
The CW1L-M1E01QM4G complies with multiple international standards, including IEC 60947-5-1, UL508, CSA C22.2 No.14, EN60947-5-1, and directives for low voltage applications. Its screw terminal type connection guarantees fast, reliable wiring during installation or replacement.
Momentary SPST switch operation with green LED illumination. IP65 rated casing for dust and water jet protection. Panel mount design with 22 mm cutout size. Operates reliably from -25°C to 55°C temperature range. Compliant with international electrical and safety standards.
Compact 34.5 mm depth behind the panel for easy integration. 6 A contact current rating suitable for light duty industrial use. Manufactured with high precision in Japan.
This product is widely used in automation, industrial control panels, manufacturing lines, machinery safety interlock systems, and other industrial electrical applications requiring dependable operator control interfaces. It is an excellent choice for professionals seeking a quality illuminated push button switch fulfilling robust safety and performance criteria.
Explore the extensive range of Push Button Switches and related electrical components on EnvMart for assured quality and wide selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a momentary Single Pole Single Throw (SPST) contact configuration.
It has an IP65 rating, providing protection against dust and water jets.
It operates reliably between -25°C and 55°C.
The switch requires a panel cutout size of 22 mm.
It utilizes screw terminal connections for secure wiring.
The contact current rating is 6 A, suitable for light duty industrial use.
The switch features green LED illumination for visual indication.
This product is manufactured in Japan.
It has a compact depth of 34.5 mm behind the panel for easy integration.
It complies with IEC 60947-5-1, UL508, CSA C22.2 No.14, and EN60947-5-1 standards.
It is suitable for automation, industrial control panels, manufacturing lines, and machinery safety interlock systems.
It features a momentary switch operation design.
