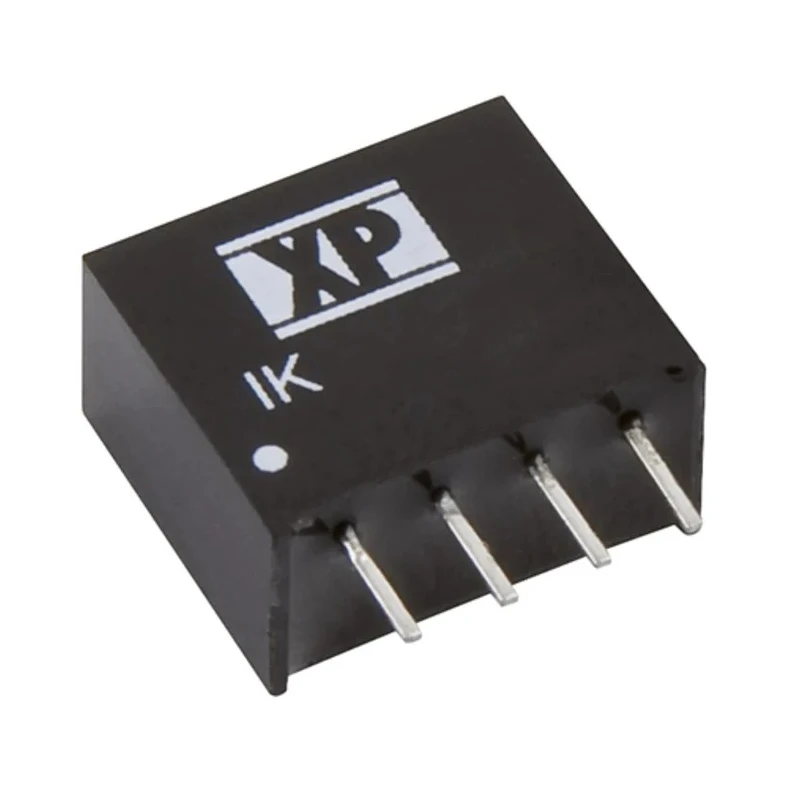

XP Power IK Series Isolated DC-DC Converter 5V DC Output 600mA, 9V & 21.6V DC Input, 0.25W, Through Hole SIP Package IK2405SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IK DC/DC Converter, 5V dc/ 600 mA, 9V Inp |
| Brand | XP Power |
| Efficiency | 62% |
| Length | 11.68mm |
| Model | IK2405SA |
| Depth | 10.15mm |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | IK |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 0.25W |
| Maximum Input Voltage | 9V |
| Minimum Input Voltage | 21.6V dc |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 600mA |
| Isolation Voltage | 1kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Offers isolated output voltage ensuring electrical separation for safety.
- Wide operating temperature range from -40°C to 85°C for reliable industrial use.
- Compact SIP package with 7 pins, suitable for through-hole mounting.
- High isolation voltage of 1000 VDC supports robust system design.
- High MTBF of 1,100,000 hours ensures long-term durability.
- Designed with 62% efficiency for energy-saving performance.
- Output current rated at 600mA suitable for low-power electronics.
- Low power dissipation at 0.25W maintains cooler operation.
Product Description
XP Power IK2405SA DC-DC Converter is a reliable isolated power supply module delivering 5V DC output at 600mA with a maximum output power of 0.25W. It accepts input voltages of 9V and 21.6V DC, designed for industrial, electronic, and instrumentation applications requiring high isolation and stable voltage conversion.
This converter features a SIP through-hole package with 7 pins enabling easy installation on PCBs. It provides a high isolation voltage rating of 1000 VDC that ensures electrical separation between input and output, critical for safety in sensitive electronics.
The unit operates efficiently at 62% and withstands a wide operating temperature range from -40°C to 85°C, enabling usage in harsh environmental conditions. The compact dimensions of 11.68mm length, 6mm width, and 10.15mm depth allow for integration into tight spaces.
With a mean time between failures (MTBF) of 1,100,000 hours, it offers exceptional reliability for long-term industrial and laboratory use. Its 2:1 input voltage ratio supports flexibility for powering electronics requiring regulated 5V supply.
Provides isolated 5V DC output, 600mA current rating, 0.25W max power. Input voltage range supports 9V to 21.6V DC. Industry-standard SIP through-hole mounting with 7 pins. High isolation voltage of 1000 VDC for electrical safety.
Wide operating temperature range from -40°C to 85°C. Compact and space-saving dimensions for PCB integration. 62% efficiency to reduce heat generation and power loss. MTBF of 1,100,000 hours ensures dependable performance.
Suitable for industrial, laboratory, instrumentation, and electronic power supply applications.
This DC-DC converter is ideal for design engineers seeking a compact, reliable isolated voltage converter module. Its robust characteristics satisfy industrial and commercial power supply needs with safety and efficiency. Browse more power supply and DC/DC Converter products on EnvMart for comprehensive industrial electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The XP Power IK2405SA provides an output voltage of 5V DC with a current rating of 600mA.
This unit accepts input voltages ranging from 9V to 21.6V DC.
The isolation voltage of this model is 1000 VDC, ensuring electrical separation between input and output.
It operates with an efficiency of 62%, helping to reduce heat generation and power loss.
The dimensions of this model are 11.68mm in length, 6mm in width, and 10.15mm in depth.
The operating temperature range for the XP Power IK2405SA is from -40°C to 85°C.
The SIP package of this model features 7 pins, suitable for through-hole mounting.
The maximum output power of the IK2405SA is 0.25W.
The MTBF for this model is 1,100,000 hours, indicating exceptional reliability.
This converter supports through-hole mounting, making it easy to install on PCBs.
It is designed for industrial, laboratory, instrumentation, and electronic power supply applications.
The input voltage ratio for the IK2405SA is 2:1, allowing flexibility in powering electronics.
